Product Description
Specification

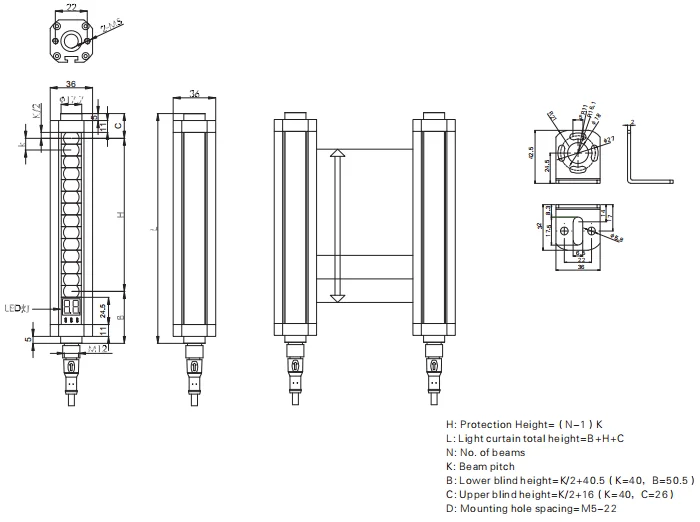

Sectional area | 36*36mm |
NO.of beams | 4~1000 |
Protection height | 60~1240mm |
Protection distance | 0.3~3m |
Beam pitch | 2.5/5/10/20/40mm |
Min. sized detectable objects | φ3.75/φ6.5/φ15/φ25/φ45mm, opaque |
Supply voltage | 24V DC±10% |
Current consumption | ＜200mA |
Power consumption | 4~6W |
Output type | NPN/PNP |
Synchronization type | line synchronization |
Response time | ≤15ms |
Light source | Infrared LED (Modulated) |
Protective circuit | Reverse polarity, output short circuit protection |
Ambient temperature | -10~+55℃ (No coagulating, no freezing) |
Ambient humidity | 35~85%RH |
Anti-interference ability | 10000Lux |
Insulation resistance | Above 100MΩ (DC 500V megger) |
Degree of protection | IP65 |
Material | Aluminium alloy |
Connection | M12 connector |
Accessories | Cable length 3m, female (Customization available) |

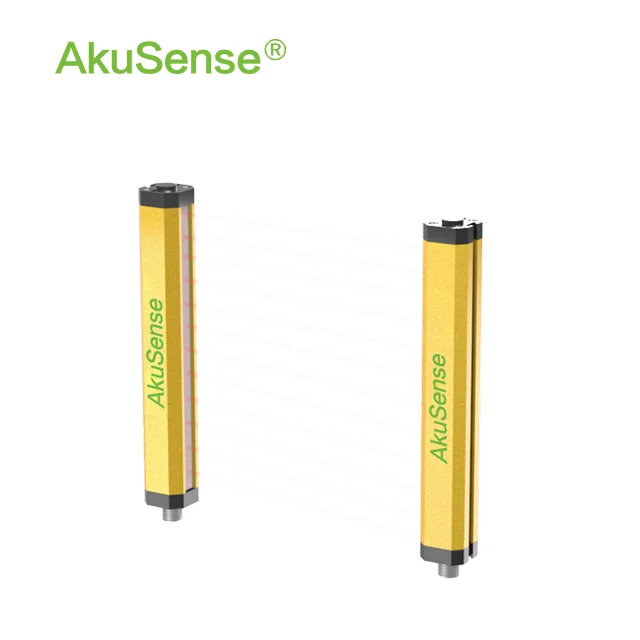

Model | BML20-T0403NC |
Measuring type (BAL series)
● Surface mount technology for superior shock resistance.
● Self-checking function is perfect, anti-interference ability is strong.
● Customizable RS485/232/422 communication protocols.
