Product Description
Specification
Sensing type | Diffuse refection-Background suppression | ||||||
Sensing distance | 15cm | 1-30cm | 1-20cm | ||||
Hysteresis | ≤ 20% | ≤ 5% | ≤ 10 % | ||||
Output type | NPN/PNP Open-collector, ≤100mA/30V DC | ||||||
Switch type | Selectable L.on/D.on | ||||||
Indicator | Operation: Green; Motion:Yellow | Motion indicator:Green;Output indicator:Yellow | |||||
Response time | ≤ 5 ms | ≤ 0.5 ms | ≤ 2 ms | ||||
Sensitivity adjustment | Single turn potentiometer | 4 turn potentiometer | multi-turn potentiometer | ||||
Light source | Red light LED 623 nm (modulated) | Red light LED (660 mm) | |||||
Operating voltage | 10 -30V DC ± 10% | ||||||
No-load supply current | ≤30mA | ... | |||||
Ambient luminance | Sunlight ≤1000 Lux, Incandescent lamp ≤ 3000 Lux | ||||||
Ambient temperature | -25℃~55℃ no freezing | ||||||
Ambient humidity | 35~85%RH, No condensation | ||||||
Degree of protection | IP65 | IP67 | IP65 | ||||
Material | PBT+fiberglass (body); PMMA (lens) | ABS(body);PMMA(lens) | ABS(body);PC(lens) | ||||

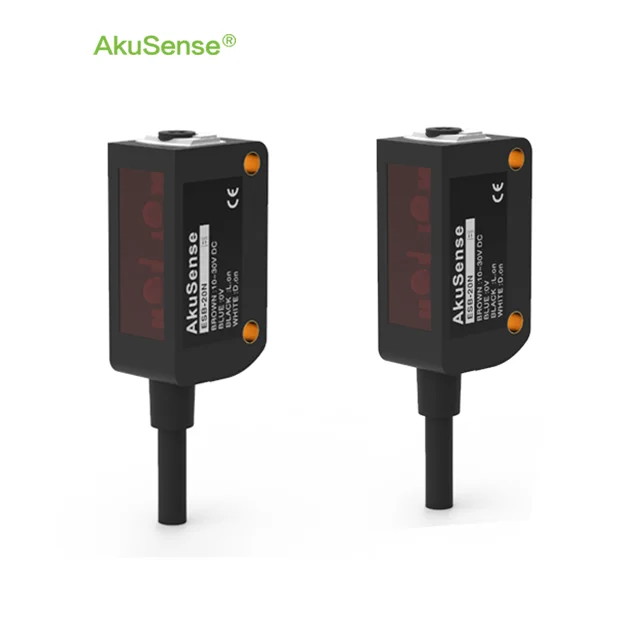

Model No. | NPN | ESB-15N | ESB-Z30N | ESB-20N | |||
PNP | ESB-15P | ESB-Z30P | ESB-20P | ||||
