| Specification |
Parameters | Symbol | Value | Units | Notes | ||
| Min | Typ. | Max | |||
Supply Voltage | Vin | 5 | 5 | 18 | V | |
Current Consumption | I | - | 35 | 50 | mA | Vin=5V |
Radiated Power | Pout | -20 | - | 5 | dBm | Adiustable by software |
Frequency Setting | ƒout | 5.725 | - | 5.875 | GHz | Adiustable by software |
Antenna BeamWidth(3dB)-Azimuth | θ | - | 170 | - | ° | |
Output control | Vout | - | 5V | 18 | V | |
Speed Measurement | Vdet | 0.1 | - | 3 | m/s | |
Time Delay | ΔT | 0 | - | ΔT | s | Adiustable by software |
| Detection Range | L | 0 | - | 20 | m | Adiustable by software |
Operating Temperature | TA | -30 | - | 100 | ℃ | |
Storage Temperature | TSTG | -40 | - | 150 | ℃ | |

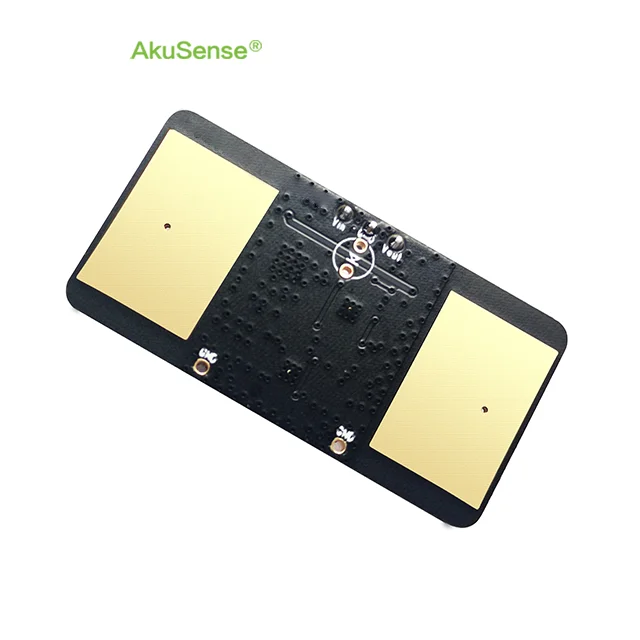

| Outline Diagram |
Length:40mm Width:20mm Thickness:1.6mm

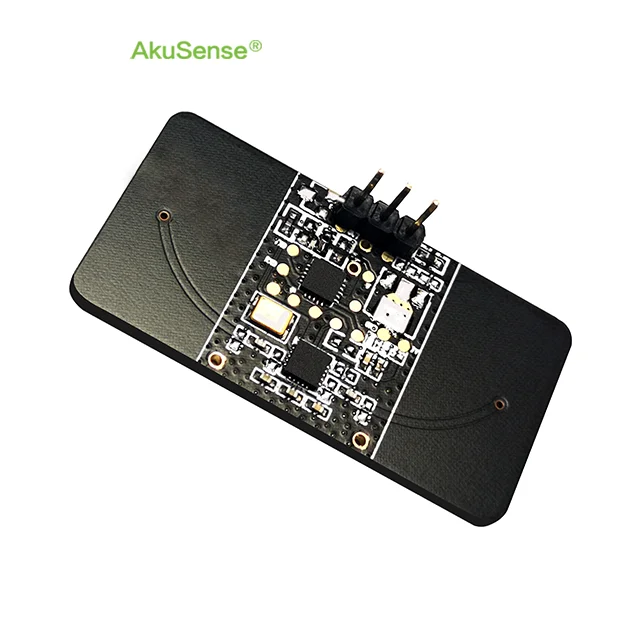

| Interfaces | ||
| No. | Name | Feature |
| 1 | Vin | 5V Voltage input(sypport 6~18V) |
| 2 | GND | Gound |
| 3 | Vout | Support raw data and high-low-level pulses |
1.Packing
1).Netural Packing: Plastic bag for goods+ inner box bubble +inner box+carton.
2).According to customer's requirest, but the price is different with netural packing.
2.Shipping
Products are shipped form China.We promise to send out products within 15 working days after the payment.We cooperate
with the logistic companies, DLS, EMS, and TNT etc.The tracking number will sent to you after delivery.You can get it in 3-5
working days, which depends on whrere your address.
