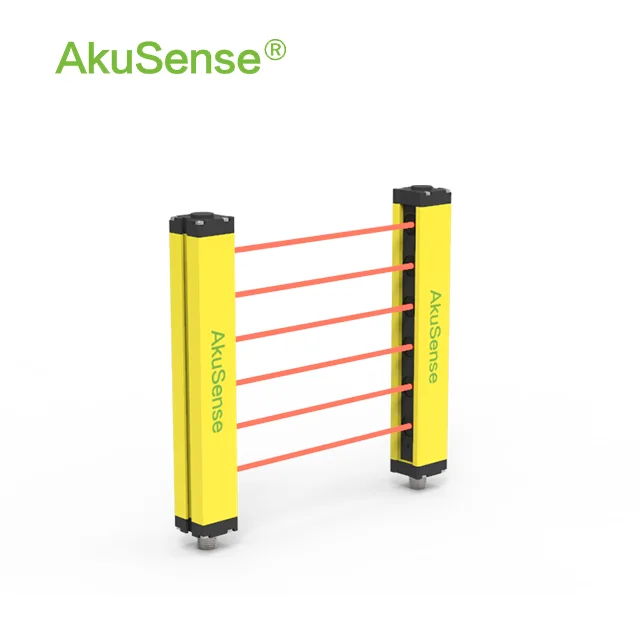

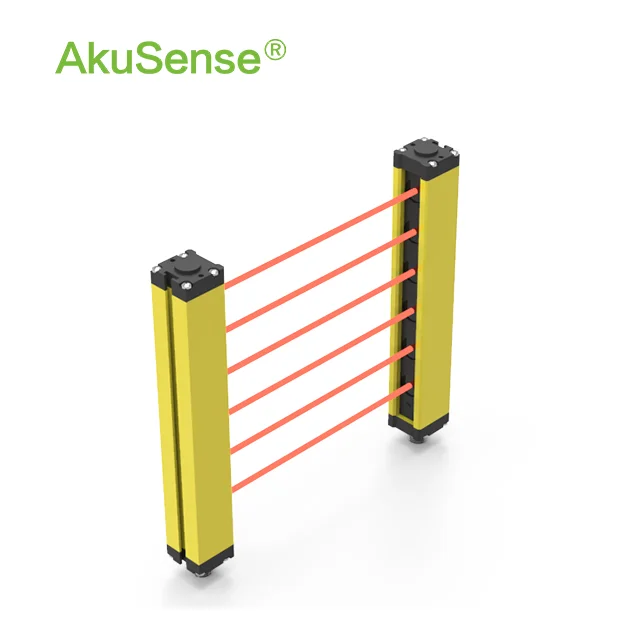

Products Description
15 MS High-speed Response
3M Protection Height
Technical Specifications: | ||
Sectional area | 30*30mm | |
No.of beam | 4~32 | |
Protection height | 50~1240mm | |
Protection distance | 0.3~3m | |
Min.sized detectable object | ＞φ14mm/19/25/30/35/45, opaque | |
Supply Voltage | 24V DC±10% | |
No-load supply current | ＜200mA | |
Consumed power | 4~6W | |
Output type | NPN/PNP | |
Synchronization | line synchronization | |
Response time | ≤15ms | |
Light source | Infrared LED（Modulated） | |
Protective circuit | Reverse polarity,over-load,output short circuit protection | |
Ambient temperature | -10~+55℃（No coagulating,no freezing） | |
Ambient humidity | 35~85%RH | |
Anti-interference ability | 10000Lux | |
Insulation resistance | Above 50MΩ（ DC 500V megger） | |
Shock resistance | 10~150Hz,double amplitude; 1.5mm, in each of x, y and z direction for 2 hours | |
Vibration resistance | Acceleration: 500m/ s² (Approx:50G); x, y and z direction ( 3 times each) | |
Degree of protection | IP 65 | |
Material | Main unit case: aluminum; Upper/ lower case: strengthened Nylon; Front cover: Polycarbonate | |

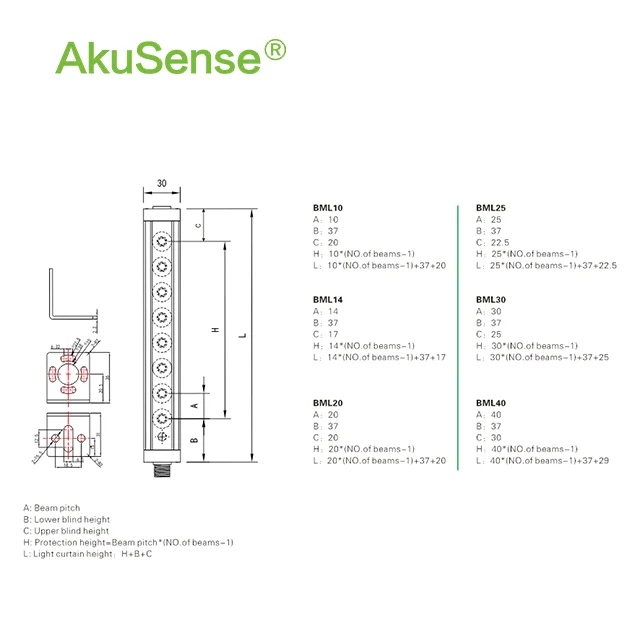

BML25 | ||||||||
Beam pitch | 25mm | |||||||
Min,sized detectable object | ＞φ30, opaque | |||||||
Protection distance | 0.3~3M | |||||||
No, of beams | 6 | 10 | 12 | 32 | ||||
Protection height | 125mm | 225mm | 275mm | 325mm | ||||
Light curtain height | 184mm | 284mm | 334mm | 384mm | ||||
Model No. NON PC | BML25-T0603NC | BML25-T1003NC | BML25-T1203NC | BML25-T1403NC | ||||
Model No. PNP NC | BML25-T0603PC | BML25-T1003PC | BML25-T1203PC | BML25-T1403PC | ||||

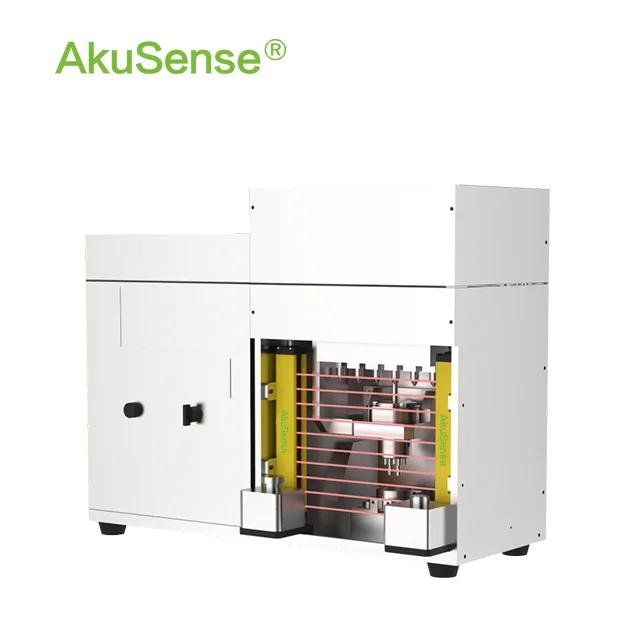

Main applications
More Safety Industrial Opertaion
Less Dangerous accidents
