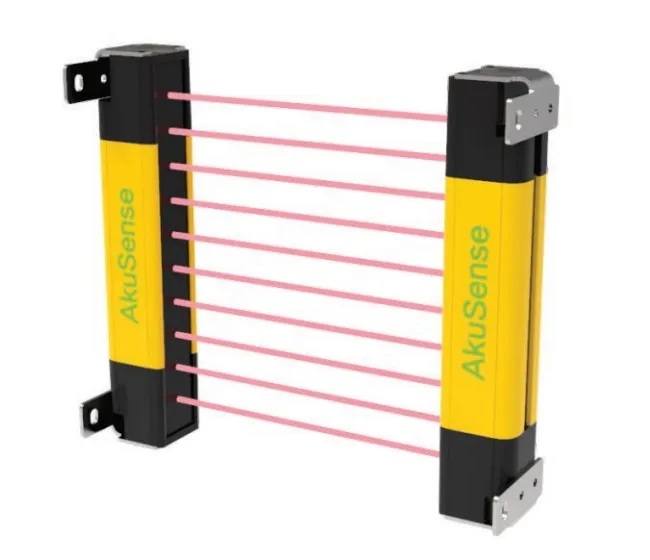

Modulated infrared light barrier sensor 14 beams safety curtain sensor nc light curtain for safety applications
Click on the image to view the original image
Product： views：5Modulated infrared light barrier sensor 14 beams safety curtain sensor nc light curtain for safety applications
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2020-12-23 23:20
  Negotiated
Product Details
Product Description
Specification

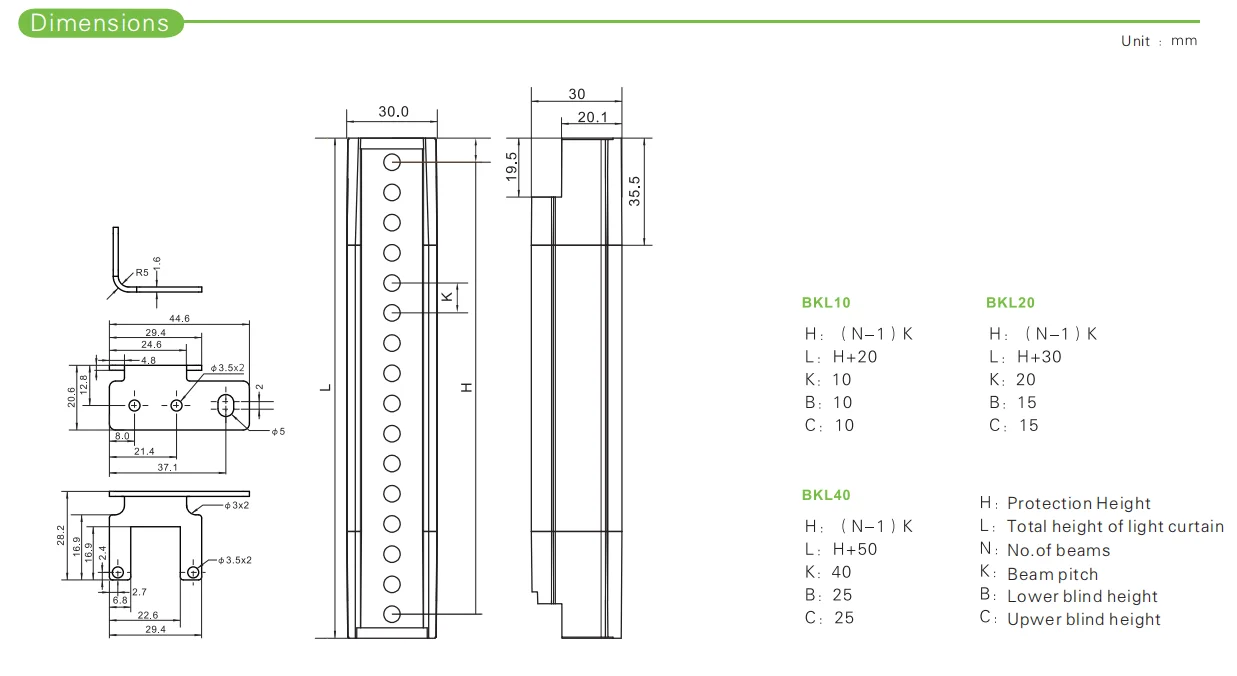

Housing cross section
30X30mm
NO.of beams
14
Protection height
260 mm
Protection distance
0.1~6m / 4 inch ~20 ft
Resolution
20 mm
Min. detectable objects
>φ25 mm, opaque
Operating voltage
12-24V DC±10%
Current consumption
< 200mA
Power consumption
3 - 8W

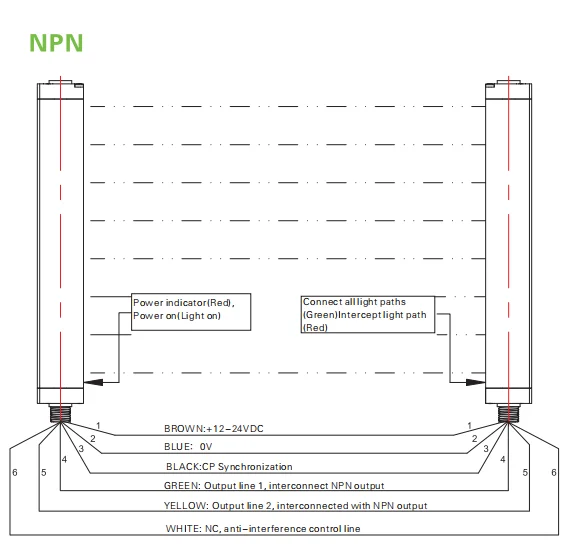

Output type
NPN NC
Synchronization type
Optical , line synchronization
Response time
≤10 ms
Light source
Infrared LED (Modulated)
Protection circuit
Reverse polarity, over-load, output short circuit protection
Ambient temperature
-15~+55℃ (No condensation, no freezing)
Ambient humidity
35~85% RH
Anti-interference capability
10000 Lux ( Angle of incidence ≥ 5°）
Insulation resistance
Above 10 MΩ (DC 500V insulation resistance meter)
Anti-vibration
10 to 150Hz with 1.5 mm amplitude for 2 hours each in X, Y, and Z directions
Shock resistance
Acceleration: 500m/ s² (Approx:50G); x, y and z direction (3 times each)
Degree of protection
IP65
Material
Housing: Aluminum alloy
Connection
M12 connector
Accessories
Right angle bracket

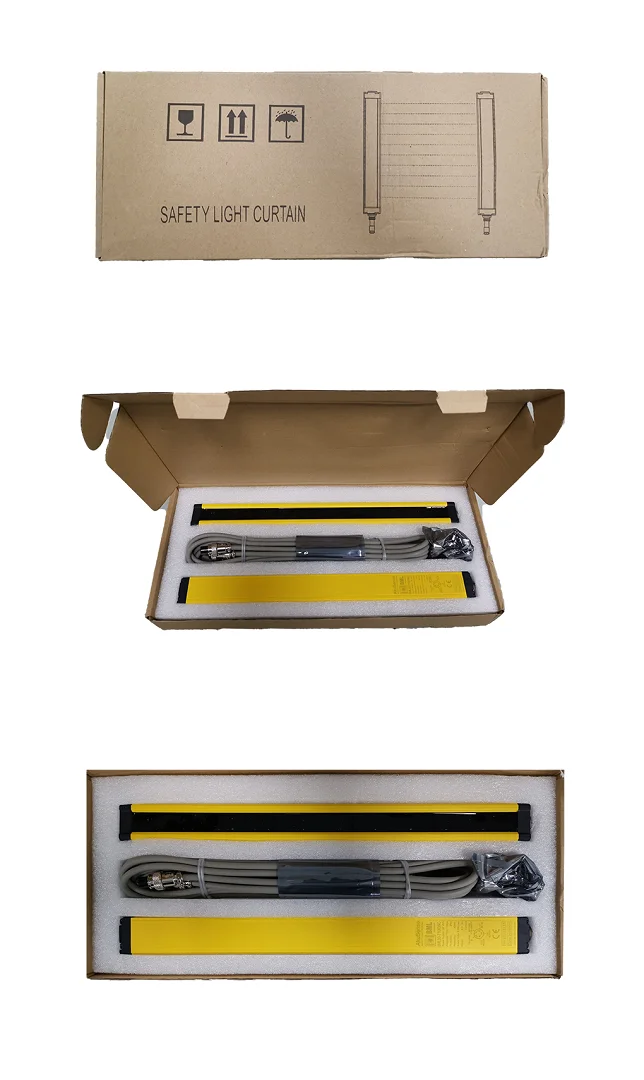

Packing & Delivery
Packing:
1. Carton packaging
2. Upon customers' require, but the price is different from neutral packing.

Shipping and shipping fee:
1. Products are being shipped from china by DHL, EMS and TNT etc.
The tracking number will be sent to you after delivery.
2. Our quotation is based on EXW term, we can check with forwarders if it's needed.

Delivery/lead time:
1. For items in stock, delivery will be arranged in three working days after the payment is confirmed.
2. For items run out of stock, it takes normally 3-5 weeks depending on the quantity, pls check with our sales.
