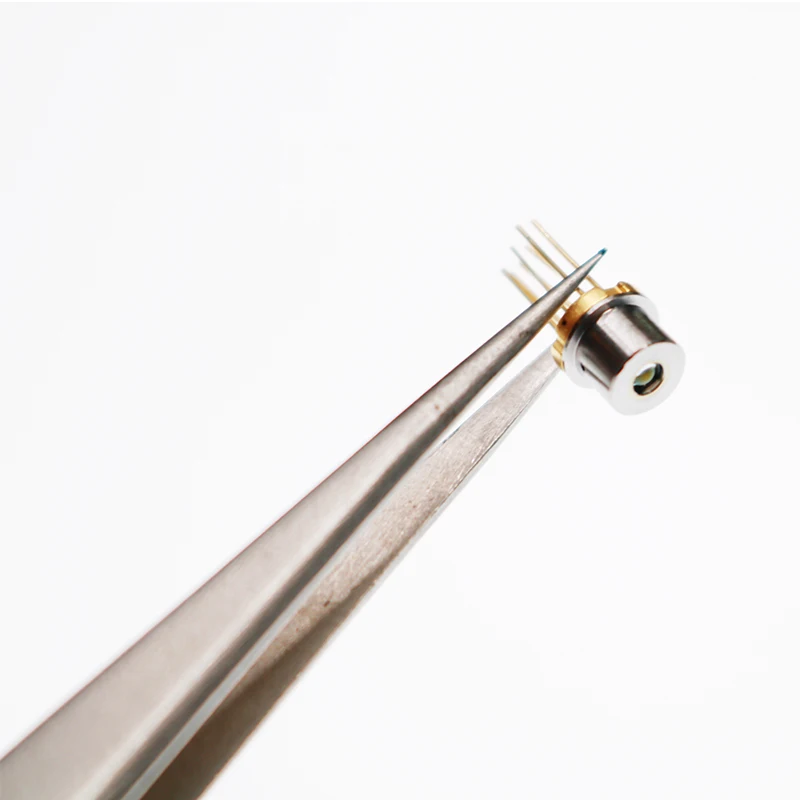

| Parameter | Symbol | Values | Unit | ||
| Min | Typical | Max | |||
| Optical Output Peak Power @25º C | P | 1 | 1.6 | mW | |
| Operating Bias Current | Iop | 0 | 18 | 25 | mA |
| Operating Temperature range | Top | -40 | 25 | 85 | °C |
| Threshold Current | Ith | 8 | 12 | mA | |
| Slope Efficiency (CW, Tc=25°C) | SE | 0.14 | 0.18 | mW/mA | |
| Laser Drive Voltage | Vcc | 0 | 1.5 | 2.5 | V |
| Resistance | Rs | 50 | Ω | ||
| Center Wavelength | Δλ | 1525 | 1575 | nm | |
| Please specify desired center wavelength in the purchase order | |||||
| Guaranteed Tuning Range | λ | 8 | 10 | nm | |
| Applying a positive voltage will decrease peak wavelength. | |||||
| Max. Mechanical Tuning Response | fmax | 100 | 200 | - | kHz |
| Side-mode suppression ratio | SMSR | 30 | 40 | dB | |
| Linewidth (-3 dB FWHM), CW Ibias=Iop | σ | 300 | MHz | ||
| Relative Intensity Noise | RIN | -128 | dB/Hz | ||
| Tuning Voltage | Vtune | 0 | Test Sheet | Test Sheet | V |
| Tuning Current | Itune | 0 | - | 100 | μA |
| TEC Voltage | VTEC | 0.35 | 1.5 | V | |
| TEC Current | ITEC | 0.05 | 0.6 | A |
Optical Spectrum at 15mA at 20ºC (As a function of Tuning Voltage)
L-I Curve ( T@25°C )
Absolute Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Storage Temperature | Tstg | -20 to +85 | °C |
| Operating Case Temperature | Tc | -5 to +70 | °C |
| Forward Current of VCSEL | ILD | 25 | mA |
| Reverse Voltage of VCSEL | VLD | 3 | V |
| Soldering Temperature | Tsld | 350 (10 sec.) | °C |
Q1. What is the advantage about your company?
A1.LD-PD INC Established in 2004, we have become one of the leading sources in providing low cost
Photo detector, laser diode and some related driving products. Our well educated research and
development team is committed in search of answers to most frequently asked questions in today's
complex technology. Our well trained engineering team, employs top of the line state-of-the-art technology
in innovative fiber optics products
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
At the core of LD-PD’s capabilities is its expertise in designing and manufacturing high power, high
reliability laser diodes. What’s more, LD-PD has been a manufacturer of Si detector and high speed
Germanium transistors and diodes since 2008 and a manufacturer of infrared photodetectors since 2010.
We offer SI,Ge, p-n, APD and InGaAs p-i-n high speed and large area photodetectors for radiation detection
and telecommunication applications. LD-PD maintains an inspection system in accordance with MIL-I-45208.
Photodiodes are subjected to Telcordia testing requirements (TA-NWT-00093), MIL-STD-883 test methods
and/or customer specifications.
