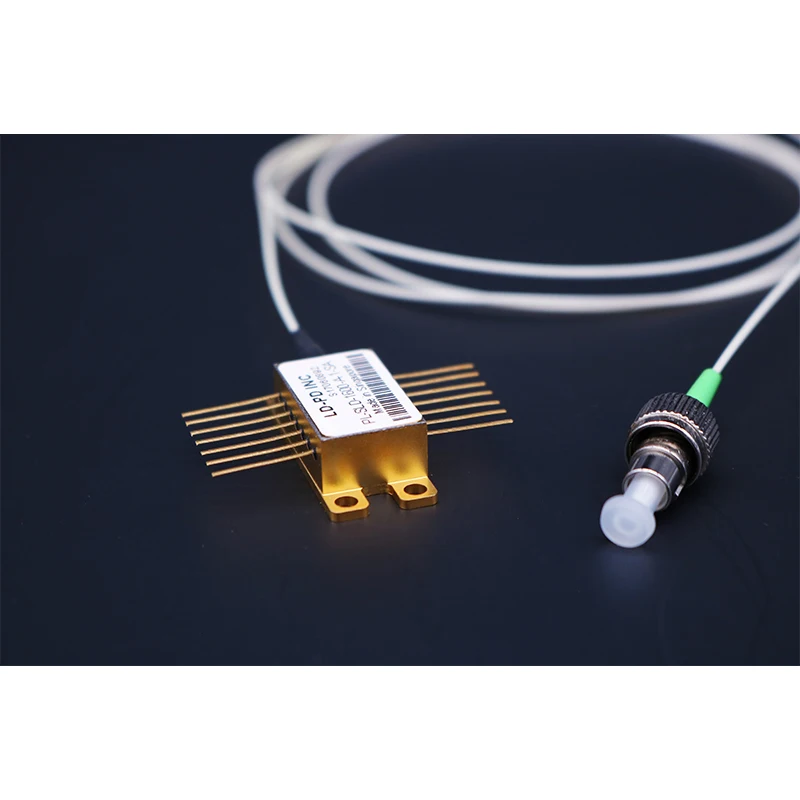

| Parameter | Symbol | Min | Typ | Max | Unit |
| Centre Wavelength | λ | 1590 | 1600 | 1610 | nm |
| Spectral Width | Δλ | 40 | 50 | nm | |
| Threshold Current | Ith | 30 | 40 | mA | |
| Operating Current | Iop | 400 | 500 | mA | |
| Fiber output Power | Pf | 10 | mW | ||
| PD Dark Current (VRD=5V) | Id | 0.1 | uA | ||
| Extinction Ratio | PER | 17 | 20 | dB | |
| Coupled Fiber Type | SMF-28E/PM1550 | ||||
| Forward Voltage | Vf | 1.8 | 2.5 | V | |
| Thermistor Resistance | RT | 9.5 | 10 | 10.5 | KΩ |
| Thermistor Temp. Coefficient | -4.4 | %/°C | |||
| Connector | FC/APC |
Spectrum
L-I Curve
| 1 | Thermoelectric Cooler (+) | 8 | N/C |
| 2 | Thermistor | 9 | N/C |
| 3 | PD Monitor Anode (-) | 10 | SLD Anode (+) |
| 4 | PD Monitor Cathode (+) | 11 | SLD Cathode (–) |
| 5 | Thermistor | 12 | N/C |
| 6 | N/C | 13 | Case Ground |
| 7 | N/C | 14 | Thermoelectric Cooler (–) |
Absolute Maximum Ratings
| Item | Unit | Min | Typ | Max |
| Case Temperature | ℃ | -20 | 25 | 70 |
| Chip Temperature | ℃ | 10 | 25 | 40 |
| Operating Current | mA | 0 | 350 | 500 |
| Forward Voltage | V | 0.8 | 1.2 | 1.8 |
| TEC Current | A | - | 1.2 | 2 |
| Reverse Voltage(SLD) | V | - | - | 2 |
| Reverse Voltage(PD) | V | - | - | 10 |
| PD Forward Current | mA | - | - | 10 |
