Home > Products > DC12V Power Supply Led Driver 150W 12.5A Adapter Lighting Transformer Switch for LED Strip
DC12V Power Supply Led Driver 150W 12.5A Adapter Lighting Transformer Switch for LED Strip
Click on the image to view the original image
Product： views：5DC12V Power Supply Led Driver 150W 12.5A Adapter Lighting Transformer Switch for LED Strip
Branch： allledlight
Size： 20X10X5 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:09
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
allledlight
Model Number:
S-12V-12.5A
Output Power:
101 - 200W
Output Type:
Single
Output Voltage:
12V
Output Frequency:
50/60Hz
Output Current:
12.5A
Input Voltage:
220V
Efficiency:
83%
Case material:
Aluminium
Operation volt:
0-50℃
Feature:
Switching Power Supply
Test:
100% full load burn-in test
Load Variation:
3%
IP Rate:
IP20
Certification:
CE ROHS
Application:
LED Strip Light ,LED Display ,CCTV Camera

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X10X5 cm
Single gross weight:
0.6 kg
Package Type:
Colorbox or White Box 54*26*43cm 36pcs/ctn
Lead Time:
Quantity(Piece)1 - 100>100
Est. Time(days)1To be negotiated
LED Power Supply Product Description:
Model No.S-12V-12.5A
OUTPUTDC VOLTAGE12V
RATED CURRENT12.5A
CURRENT RANGE0~25A
RATED POWER150W
RIPPLE & NOISE(max).150mVp-p
VOLTAGE ADJ.RANGE3-5V
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP,RISE TIME1000ms, 50ms/230VAC  1000ms,   50ms/115VAC  at full load
HOLD UP TIME(Typ.)20ms/230VAC      16ms/115VAC at full load
INPUTVOLTAGE RANGE90 ~ 132VAC / 180 ~ 264VAC by switch                                254 ~ 370VDC
FREQUENCY RANGE47~63HZ
EFFICIENCY(Typ.)87%
AC CURRENT(Typ.)4.5A/115VAC          2.5A/230VAC
INRUSH CURRENT(Typ.)40A/115VAC          55A/230VAC
LEAKAGE CURENT<3.5mA / 240VAC
PROTECTIONOVERLOAD105 ~ 150% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE27.6 ~ 32.4V
Protection type :Shut down O/P voltage, re-power on to recover
OVER TEMPERATURE95°C+5°C (3.3V); 100°C+5°C(5V); 90°C+5°C (7.5V); 85°C+5°C(12~24V); 80°C+5°C(27~36V); 75°C+5°C(48V) (TSW1) Detect on case
Protection type : Shut down O/P voltage, recovers automatically after temperature goes down
ENVIRONMENTWORKING TEMP.-20~+50°C (Refer to "Derating Curve")
WORKING HUMIDITY20~90% RH non-condensing
STORAGE TEMP HUMIDITY-20~+85°C, 10~95%RH
TEMPCOEFFICIENT±0.03% /°C(0~50°C )
VIBRATION10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMCSAFETY STANDARDSU60950-1 approved
WITHSTAND VOLTAGEI/P-O/P:3KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC
ISOLATIONRESISTANCEI/P-O/P, I/P-FG, O/P-FG :100M Ohms / 500VDC / 25°C/ 70% RH
OTHERSMTBF271.9Khrs min MIL-HDBK-217F(25°C)
DIMENSION215*114*50mm (L*W*H)
PACKING0.36Kg

LED Power Supply Features
Input Voltage: 85-265V
Output Voltage: 12V DC
Output Current: 12.5A
Shell Material: Metal case / Aluminum base
Protection: Shortage Protection, Overload Protection, Over Voltage Protection
Widely used in Industrial automation, LED display, communications, etc.
Safety Compliance: CCC/ FCC / CE
Working Temperature: 0~40
Storage Temperature: -20~60
Ambient Humidity: 0~95% Non-Condensation

LED Power Supply Typical Applications
LED Modules, LED Pixel modules, LED strips

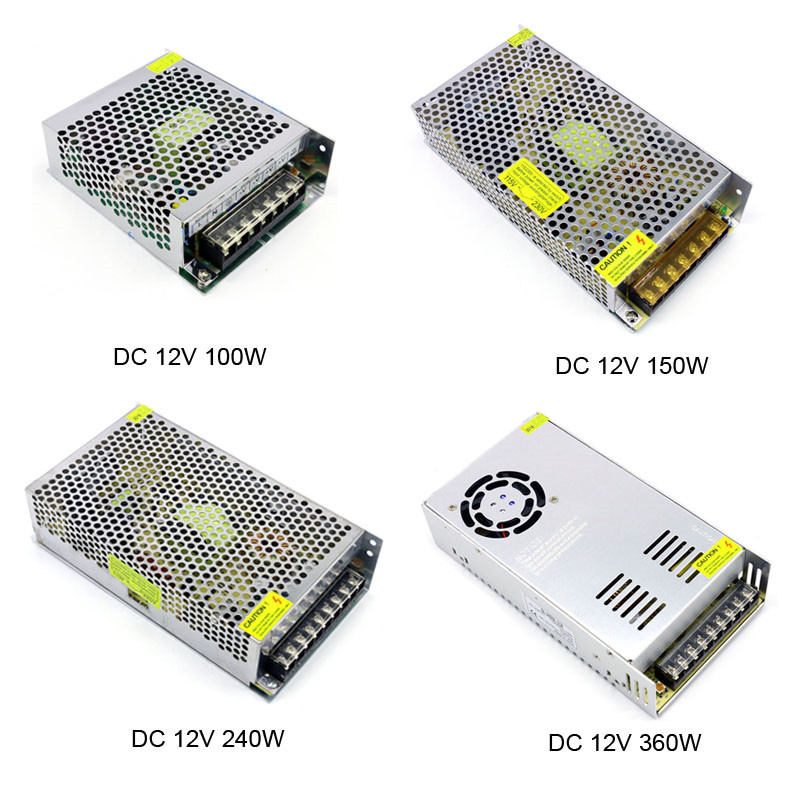

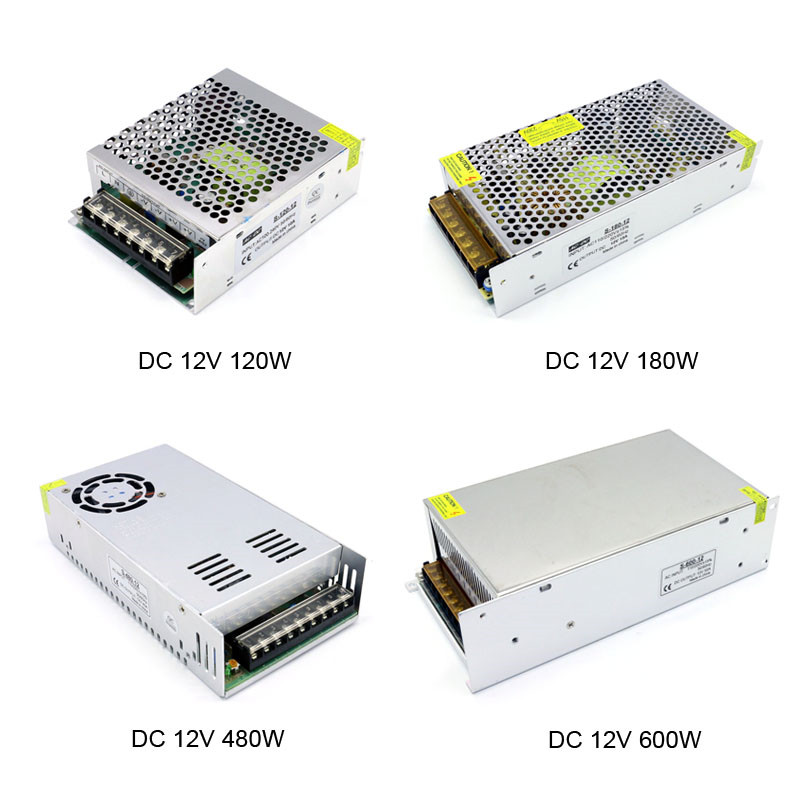

LED Power Supply Photos:
