LPCB Approved Fire Alarm Heat Detector

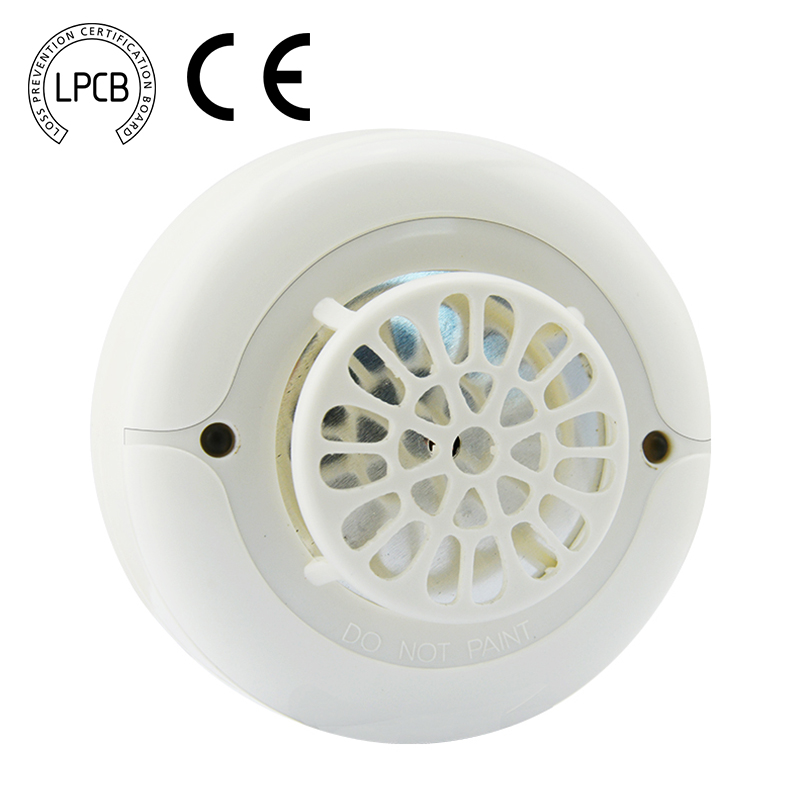

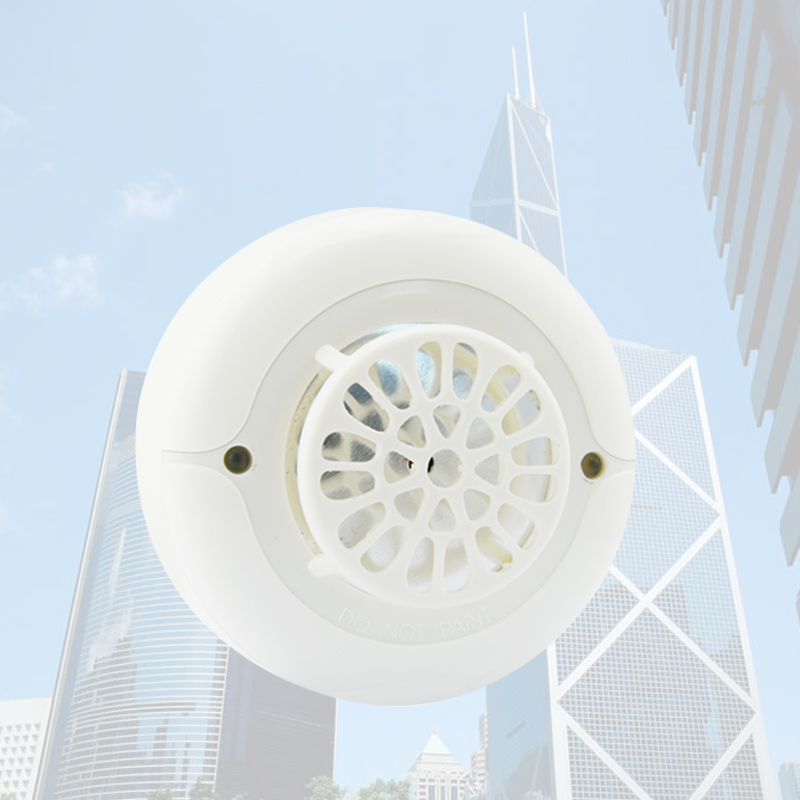

Conventional Fire Alarm Heat Detector Model:AW-CTD382
AW-CTD382 is conventional photo-electronic smoke detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
The conventional rate of rise heat detector uses thermal component to detect the temperature changing in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value. It can also enable fire alarm when the absolute temperature value reach the setting fixed value. It has a stable and reliable working performance.
Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED and relays latched until rest by panel.
| Operating Voltage Range | 9 to 28 VDC Volts Non-polarized |
| Standby Current | ≤120uA@24VDC |
| Maximum Alarm Current (LED on) | ≤15mA@24VDC (1K Ohm current-limiting resistance) |
| Operating Humidity Range | ≤95%RH(40℃±2℃)RelativeHumidity,Non-condensing |
| Operating Temperature Range | -10℃ to 50℃(14ºF to 122ºF) |
| Fix Temperature Alarm | 57℃(135ºF)A2R |
| Rate of rise Alarm | 7.1℃/5S A2R |
| Height | 48.2mm installed in Base |
| Diameter | 99.45mm |
| Standard Number ref | EN 54-7:2000 |
| EC certificate | LPCB; ISO9001; CE |
1.Compatible with conventional fire alarm control panel
2.Unpolarized wire input
3.Wide range of operating voltages
4.Unique sensing chamber
5.Two LEDs blink standby, provide 360° visibility
6.Remote Indicator LED can be connected.
Product size Diameter: 99.45 mm, height: 48.2mm
Package details FOR REFERENCE:
Carton quantity: 10PCS/BOX; 10 Box/Carton
Box size : 20.5×23.5×11cm;
Carton: 43×27×58cm;
Weight 1.42kg/Box;
14.2kg/Carton;
