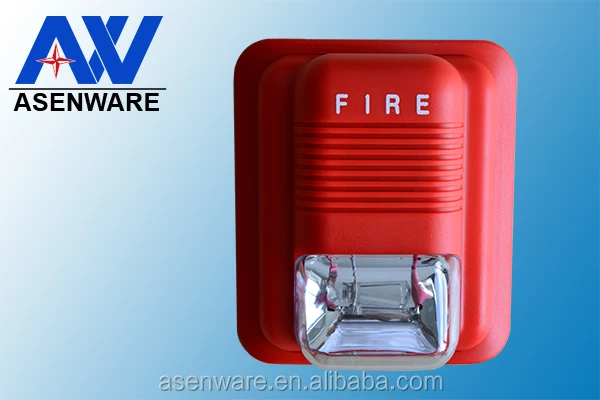

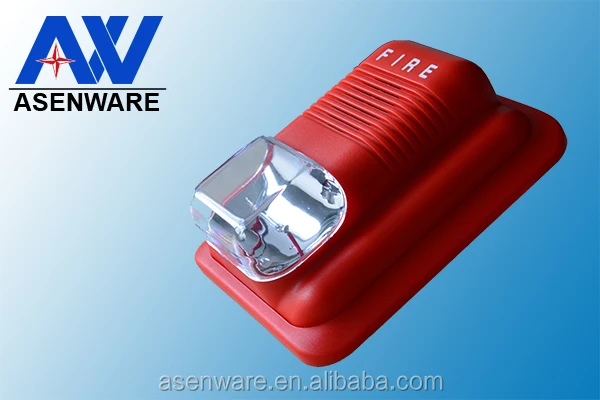

Fire Alarm Strobe Light Siren Alarms
| Basic Specification | |
| Product Name | Conventional Strobe Sounder Fire Alarm Siren Speaker Light |
| Model No. | AW-CSS2166-2 |
| Size | 134mm * 115mm * 48mm |
| Weight | 0.16kg |
| Shell Material | Hard Plastics |
| Shell Color | Red |
| LED Color | White |
| Application Environment | Indoor |
| Technical Parameter | |
Operating Voltage | DC20V~28V |
| Working Current | 100mA~150mA |
| Flash Intensity | ≥1.2WS |
| Flash Period | ≤1.5s |
| Temperature Range | -10℃ ~ +50℃ |
| Humidity Range | 0%~95%RH |
| Sound Pressure Level | ≥100dB |
| Life of Flash Light | ≥40000 times |
| Type of Sound Alarm | 3 kinds |
Description of Strobe Sounder
The product is a conventional type sound and light alarm, sound and light for short.
It"s an automatic fire alarm system output devices, mainly through the alarm will sound and flash signal,
suggesting that people fire. Strobe Horn/Hooter, Bell, Flash Light Catalog Asenware (UK) Ltd.
Function of Strobe Sounder
In the event of a fire can be an effective warning sound and flash to notify people to evacuate.
Feature of Strobe Sounder
Equipment operation stable and reliable;
Equipment easy to install, wiring;
Equipment has also issued two kinds of sound and flash an alarm signal,
even people with disabilities can be a timely response to evacuate;
When the device is different emergency situations, a variety of alarm options.

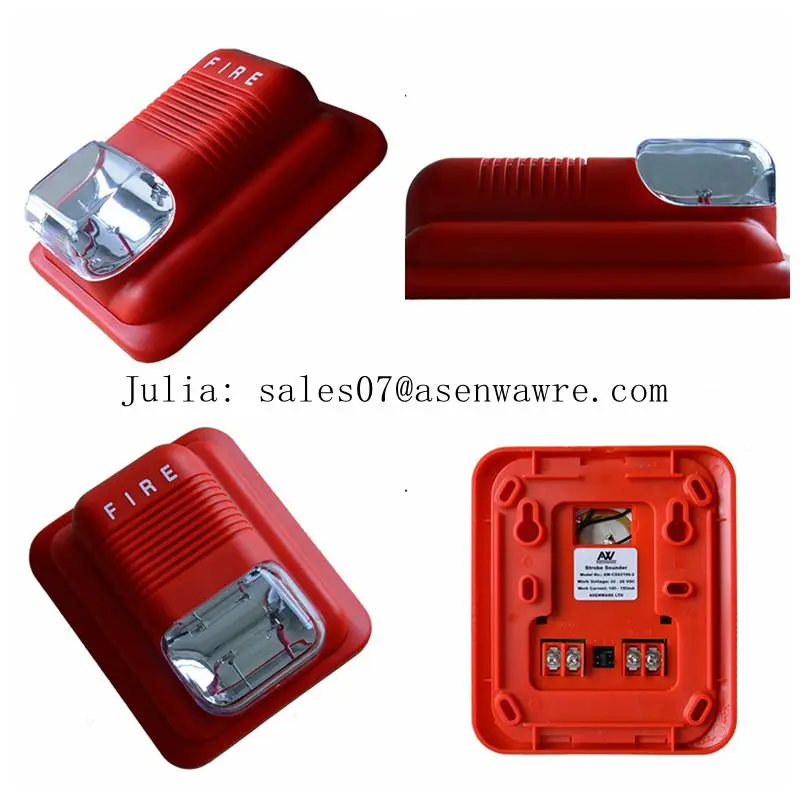

Connecting of Strobe Sounder
DC 24V+ Control Input +
DC 24V- Control Input -
Packing of Strobe Sounder
Item Parameters Unit
Sponge inside, Veneer outside
Weight: 51 kg
Volume 550 * 355 * 290 mm
Quantity/Package Unit: 50 pcs
* Over 10 years" experience.
* Prompt response.
* OEM & ODM is available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
