Fire Suppression FM200 Automatic Fire Fighting Extinguishing System
FM200 Fire Suppression System is a clean, colorless, and environmentally friendly fire suppression agent that is electrically non-conductive and safe for humans. It extinguishes flames primarily through heat absorption, leaving no residue, thus minimizing downtime after a fire and making FM-200 suppression systems accepted and respected worldwide with over one hundred thousand installations in more than seventy countries.
Manual/Automatic Extinguishing System FM200 is an engineered system utilizing a fixed nozzle agent distribution network. The system is designed and installed in accordance with the National Fire Protection Association (NFPA) Standard 2001, "Clean Agent Fire Extinguishing Systems." When properly designed, the FM-200 system will suppress surface burning fire in Class A, B, and C hazards.
The clean agent fire extinguishing system shall perform as outlined in the following sub-sections.
A. Achieve a 6.25% (v/v) extinguishing concentration for Class A (Surface Type Fires) hazards.
B. Achieve a 8.70% (v/v) or greater, as required, extinguishing concentration for Class B (Flammable Liquids) hazards.
C. Achieve a 7.00% (v/v) extinguishing concentration for Class C (Energized Electrical Equipment) hazards.
D. Within 10 seconds, the clean agent fire extinguishing system shall discharge 95% of the required suppression agent mass.
E. The clean agent fire extinguishing system shall consist of one or more Asenware Fire Systems agent cylinders and related equipment. The cylinders may be either connected to a discharge pipe arrangement separately or connected to a common manifold and discharge pipe arrangement. The agent cylinders shall be filled with FM-200, and super pressurized with dry nitrogen to a working pressure of 360 PSIG at 70°F (24.8 bar gauge at 21°C).
Parameters of fm200 fire extinguishing system
| Type of FM200 Systems | Standalone Cabinet Type | N2 Driving Pipe Network Type |
Filling Pressure(20℃) | 2.5MPa | 4.2MPa |
Max. Pressure(50℃) | 4.2MPa | 5.3MPa |
Filling Density(kg/m3) | η≤1120 | η≤950 |
Max.Guarding Area | 500m2 | 800m2 |
Max. Guarding Cubage | 1600m³ | 3600m³ |
Volume(L) | 40,70,100,120,150,180 | |
Power Supply | AC 220V/DC24V,1A | |
Working Temperature | -10℃~55℃ | |
Release Time | ≤10s | |
Start-up method | Automatic, electrical manual, mechanical emergency manual | |
Automatic start-up Delay Time | 0~30s | |

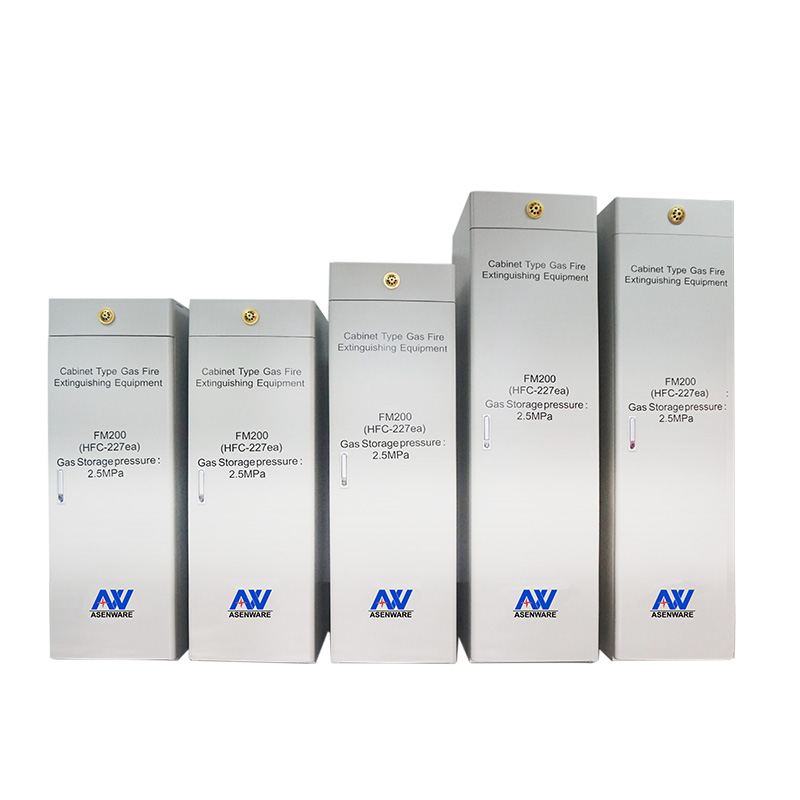

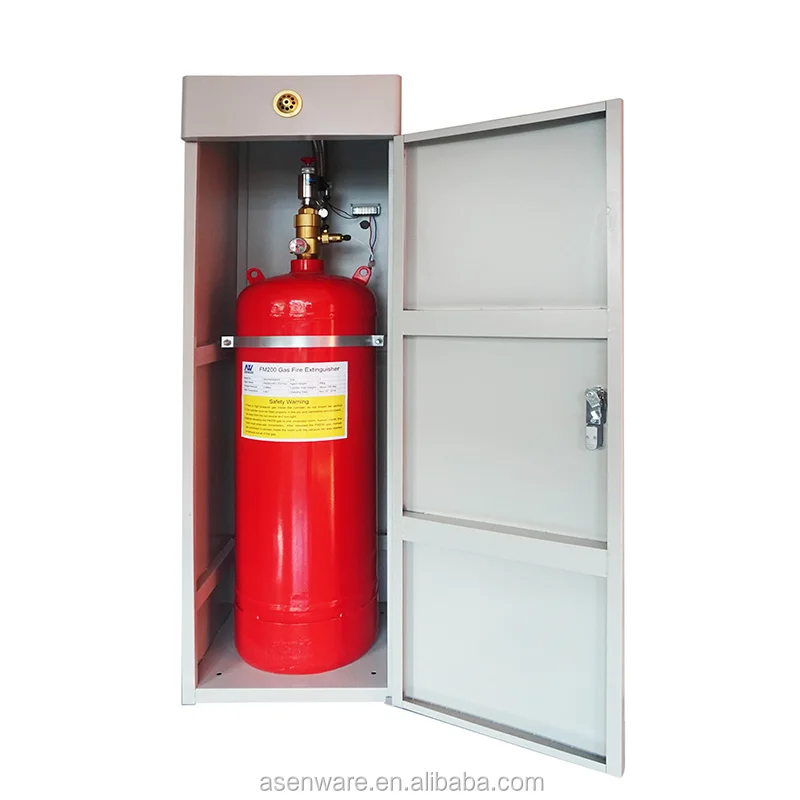

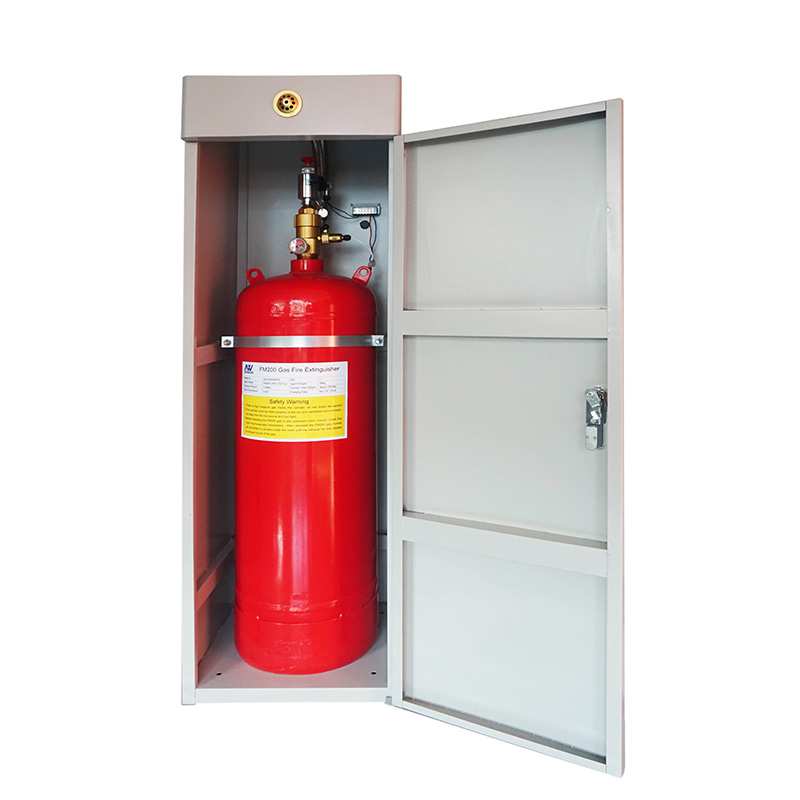

Standalone cabinet type of fm200 fire extinguishing system

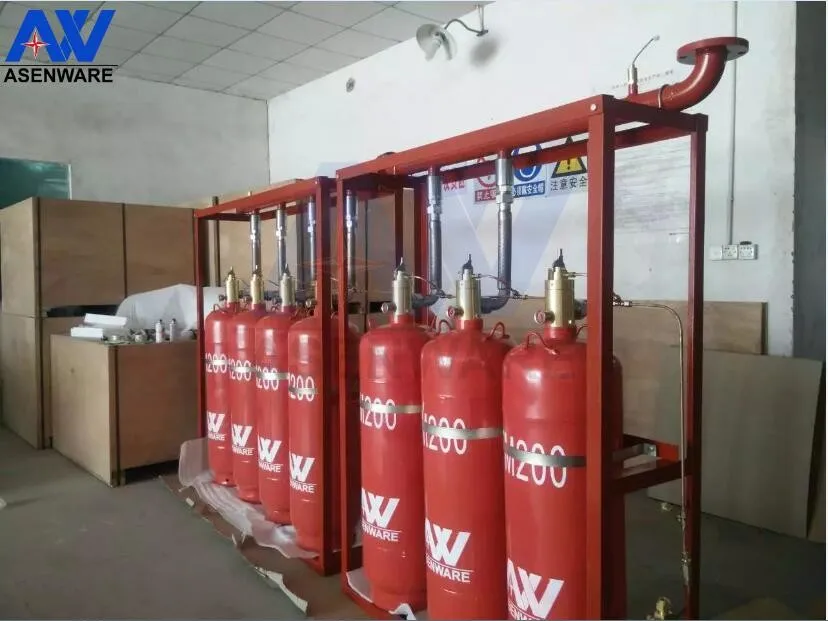

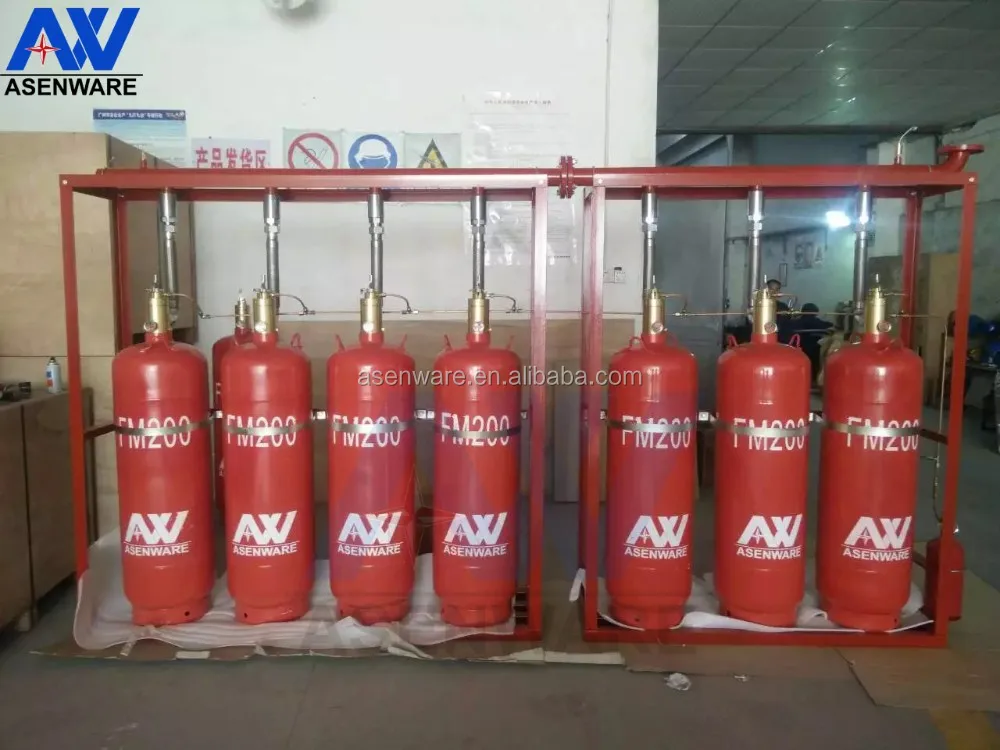

N2 Driving pipe network type of fm200 fire extinguishing system

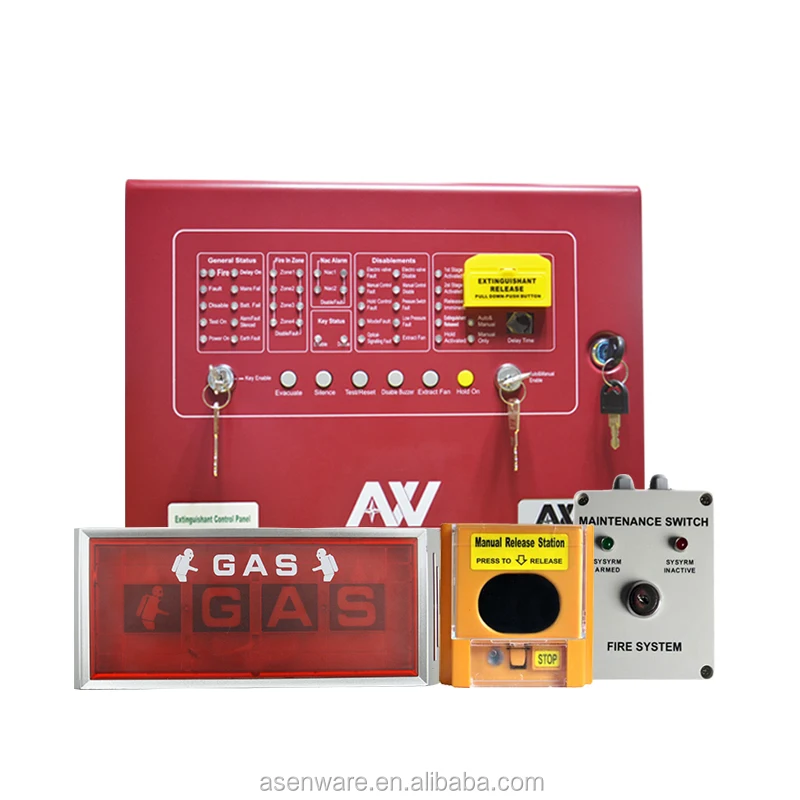

Gas control panel of fm200 fire extinguishing system
System components and accessories of fm200 fire extinguishing system
- FM-200 Storage Components – Storage components consist of the cylinder assembly(s), which contains the FM-200 chemical agent, and the cylinder bracket(s), which holds the cylinder assembly securely in place.
- FM-200 Distribution Components – Distribution components consist of the discharge nozzles used to introduce the FM-200 into a protected hazard along with the associated piping system used to connect the nozzles to the cylinder assembly.
- Trim Components – Trim components complete the installation of the FM-200 system and consist of connection fittings, pressure gauge, low-pressure supervisory switch, electric valve actuator, and manual valve actuator.
- Slave Arrangement Components – Slave arrangement components consist of the pneumatic valve actuator(s), actuation check valve, vent check, actuation hose, and fittings required for a multiple cylinder (slave) arrangement.
- Supplemental Components – Supplemental components include the discharge pressure switch and manifold check valve. They supplement the core equipment or complete a specific multi-cylinder configuration.
- Control Panel – This device monitors the condition of the electric actuator, detectors, warning devices, cylinder pressure, and any manual release and abort stations. All electric or electronic devices must connect to the control panel in order to function.
- Early Warning Detection and Alarm Devices – Early warning detection devices coupled with manual release and abort stations maximize system efficiency while audible and visual alarm devices alert staff of alarm conditions.
Applications of fm200 fire extinguishing system
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing / imaging equipment
- Reference material
- Chemical laboratories
- Clean rooms
- Control rooms
- Flammable liquid storage
- Offshore drilling rigs
- Robotic equipment
- Textile manufacturing
- Electric utility facilities
- Media storage
- Military vehicles
- Art / artifacts / historical collections

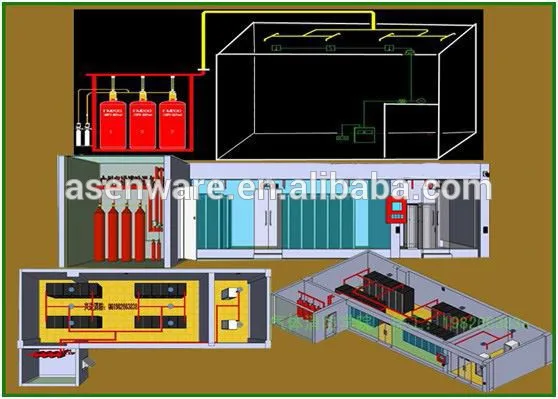

Related drawings of of fm200 fire extinguishing system
* Over 10 years" experience.
* Prompt response.
* OEM & ODM is available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
ASENWARE was established in 2005. We have focused on the Fire Alarm and BMS(Building Management System) over 12 years. Our headquarter is in London, UK.
We develop and manufacture addressable fire alarm system, conventional fire alarm system, fire extinguishing system, fire suppression system, emergency lighting system.
Based on our ISO9001 quality control system and our experiences in BMS and NDT, we integrated a series of products in our E-Shop; they are cost-effective and guaranteed quality.
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
We have a trusted goodwill; we are striving to provide to our customers with satisfying service before, during and after sales.
Contact us now for more product details of FM200 fire extinguishing system !
