LPCB Approved Fire Smoke Alarm Detector Sensor
Introduction:

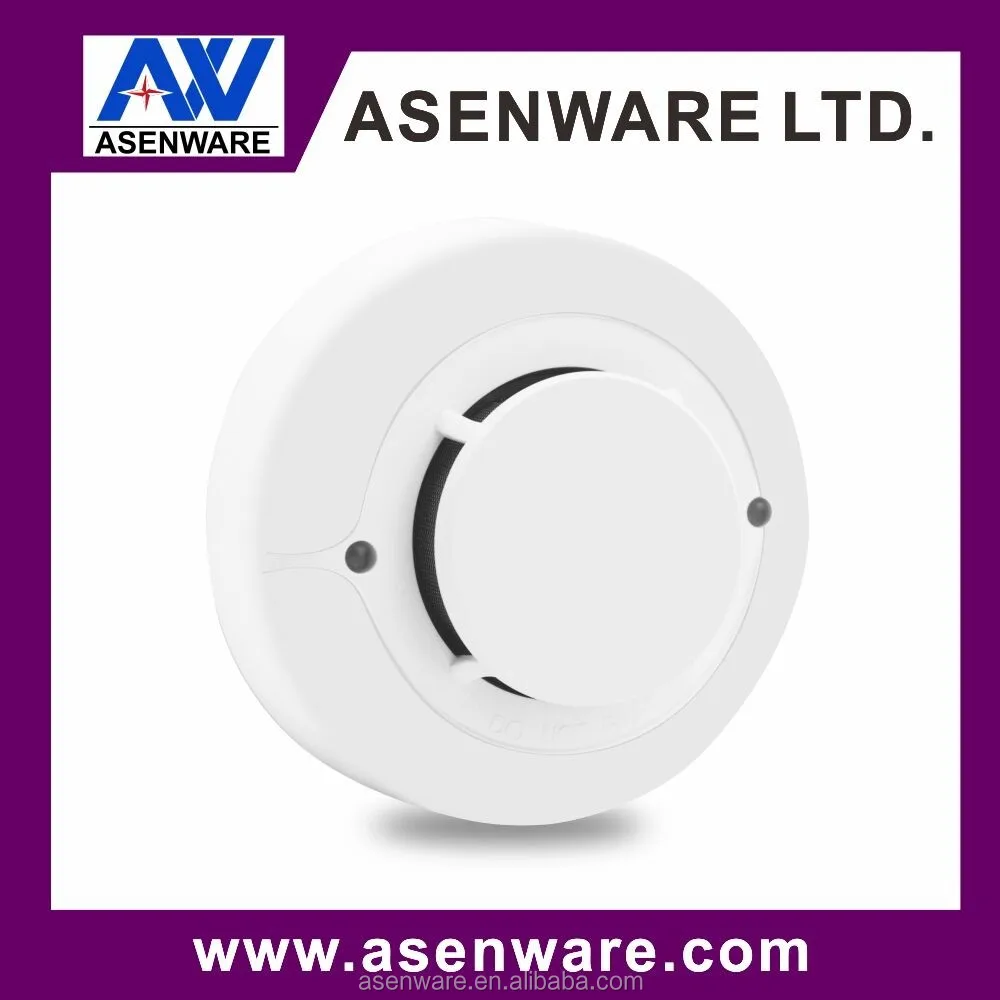

AW-D101 is addressable photo-electronic smoke detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most addressable fire alarm panel.
The addressable rate of rise of rise heat detector uses thermal component to detect the temperature changing in the environment. It can enable fire alam when the temperature difference achieved the setting rate of rise temperature value reach the setting fixed ualue. It has a stable and reliable working performance.
Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
The addressable detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
| Specifications: | |
| Operating Voltage Range | 9 to 28 VDC Volts Non-polarized |
| Standby Current | ≤120μ A@24VDC |
| Maximum Alarm Current (LED on) | ≤15mA@24VDC (1K Ohm current-limiting resistance) |
| Operating Humidity Range | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
| Operating Temperature Range | -10° C to 50° C (14° F to 122° F) |
| Smoke Alarm Sensitivity | 1.06± .26%FT |
| Fix temperature Alarm | 57° C (135° F) A1R |
| Rate of rise Alarm | 7.1° C/5S A1R |
| Height | 48.2 mm installed in Base |
| Diameter | 99.45 mm |
Features:
* The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber.
* This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
* Two LEDs on each detector provide local 360° visible alarm indication.
* They flash every six seconds indicating that power is applied and the detector is working properly.
* The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit.
* The alarm can be reset only by a momentary power interruption.
* The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
* Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.
conventional smoke detector, smoke sensor,
conventional smoke detector, smoke sensor,
conventional smoke detector, smoke sensor,
conventional smoke detector, smoke sensor,
* Over 10 years" experience.
* Prompt response.
* OEM & ODM is available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
Our Project List:
FEW RECENT FINISHED PROJECTS
• Indonesia: Government Apartment ( Addressable and Telephone Panel)
• Cambodia: Coal Plant ( FM-200, LPCO2 System, Addressable Panel )
• Kenya: Senior High School ( Addressable and Conventional Panel)
• Bangladesh: Industrial Building ( Addressable Panel )
• Thailand: Ware House ( Addressable Panel with Beam Detectors )
• Laos: Telecommunication Center ( FM-200, Addressable Panel )
• Myanmar: Data Center ( FM-200, Addressable Panel )
conventional smoke detector, smoke sensor,
conventional smoke detector, smoke sensor,
ASENWARE was established in 2005. We have focused on the Fire Alarm and BMS(Building Management System) over 11 years. Our headquarter is in London, UK.
We develop and manufacture addressable fire alarm system, conventional fire alarm system, fire suppression system, emergency lighting system, fire proof cable, fire door etc.
Based on our ISO9001 quality control system and our experiences in BMS and NDT, we integrated a series of products in our E-Shop; they are cost-effective and guaranteed quality.
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
We have a trusted goodwill; we are striving to provide to our customers with satisfying service before, during and after sales.
Contact us now for further details !
