Explosion proof Emergency Push Button / Manual Call Point
Introduction of Explosion proof manual call point:
Explosion proof manual alarm button is a kind of non-coding manual alarm button switch , which explosion-proof performance is in line with GB3836-2000 series of standards, inspected by the state designated inspection units, and acquired explosion-proof certificate. Manual alarm button is available in 1 and 2 Zone hazardous locations which include Class Ⅱ A, B, C class T1 ~ T6 temperature group explosive gas environment.
Explosion-proof manual alarm button is a indispensable equipment in explosion-proof fire alarm system ,consist with the fire alarm control panel and other equipment to be fire alarm system. When the fire, after people confirmed fire occurs, pressed explosion-proof manual alarm button, it can send an alarm signal to the fire alarm control panel.
Characteristics of Explosion proof manual call point:
* Explosion-proof manual alarm button use a reset key, with self-locking function, to meet the latest national standard.
* Explosion-proof manual alarm button has a position indication and alarm indicator, the normal standby status indicator is green long on, showing the installation position of the buttons in the dark, when you press the manual alarm button, red lights is long on, showing manual alarm button is in the alarm state.
* Explosion-proof manual alarm button can be used with fire alarm control panel of any domestic and foreign manufacturers.
Parameters of Explosion proof manual call point:
Explosion-proof mark | ExdibⅡCT6 |
Operating voltage | DC24V non polarity |
Standby current | 10mA |
Atmospheric Pressure | 80kpa - 110 kpa |
Temperature Range | -20 to + 50 degree |
Relative humidity | ≤ 95% non-condensing |
Explosion-proof mark | Exd II CT6 |

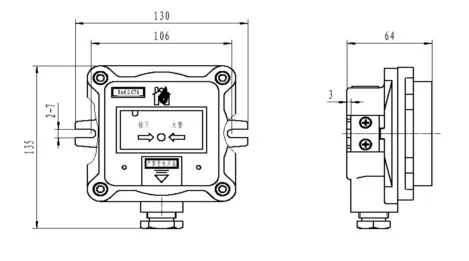

Size | 130*135*64mm |
Weight | 1.5kg |
Image of Explosion proof manual call point:
* Over 10 years" experience.
* Prompt response.
* OEM & ODM is available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
* Is Asenware Company a factory ?
Yes, we have Factory in Zhongshan, Office in Shenzhen, Headquarter in London.
* What is our payment term ?
T/T; L/C; Western union.
* How long is the delivery time ?
Usually about 2 to 7 days. Mass production about 3 weeks.
* Do we have technical support ?
Yes, we have a professional engineering team.
* How to assure the quality ?
Firstly, all of our materials and components pass the serious China Quality Standard and Control.
Secondly, all of our finished products should pass Asenware Quality Check System before export.
Thirdly, our products can be provided to test and cetify by Authories according to customer"s special need.
* Do we have warranty ?
Yes, One year or more depends.
* Sample for testing ?
Yes, Stock sample or Customized sample is available.
* Procedure to Purchase our products ?
Inquiry --- Offer --- Dicssion --- Confirmation --- Order --- Deposit --- Production --- Payment --- Shipment --- Arrival --- Finished --- Feedback --- Repeat Order.
* The ways to contact us ?
Offical web "asenware.en.alibaba.com"; Domestic and Abroad Exhibitions; Factory Tour; Email & Phone etc.
ASENWARE was established in 2005. We have focused on the Fire Alarm and BMS(Building Management System) over 11 years. Our headquarter is in London, UK.
We develop and manufacture addressable fire alarm system, conventional fire alarm system, fire extinguisher, CCTV camera and DVR, and DDC for HVAC system.
Based on our ISO9001 quality control system and our experiences in BMS and NDT, we integrated a series of products in our E-Shop; they are cost-effective and guaranteed quality.
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
We have a trusted goodwill; we are striving to provide to our customers with satisfying service before, during and after sales.
Contact us now for more details of Explosion proof manual call point !
