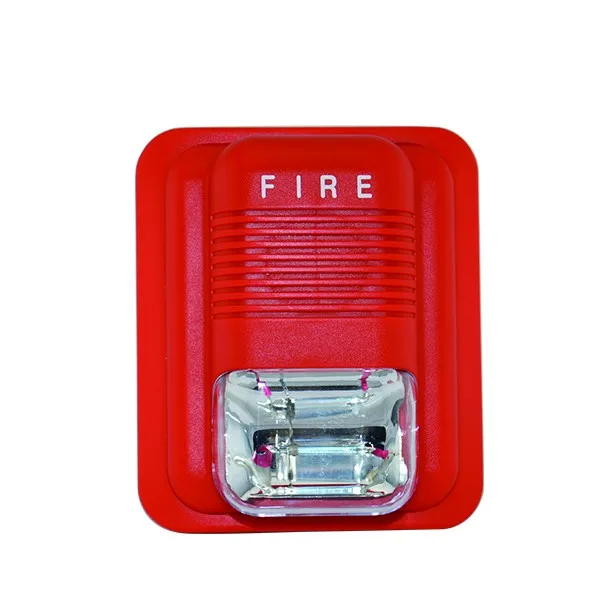

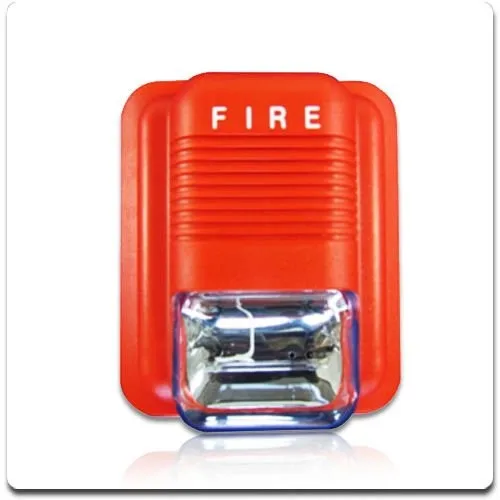

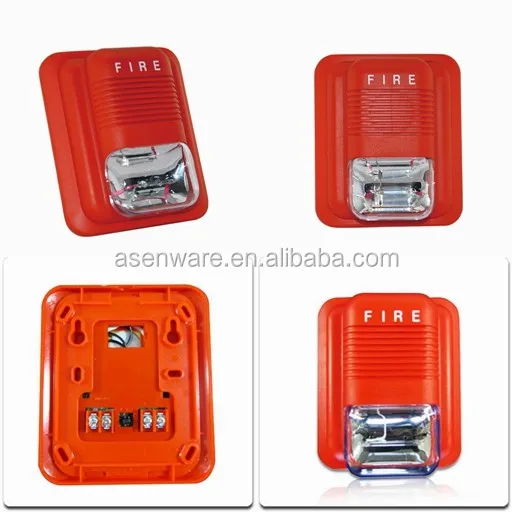

1. Description of Fire Alarm 24V Strobe Light with Sounder Horn
The product is a conventional type sound and light alarm, sound and light for short. It is an automatic fire alarm system output devices, mainly through the alarm will sound and flash signal, suggesting that people fire.
2. Working Principle of Fire Alarm 24V Strobe Light with Sounder Horn
By DC 24V electrical signal to the conventional type of sound and light alarms powered, it sounds an alarm buzzer and flashing lights flash issue.
3. Function of Fire Alarm 24V Strobe Light with Sounder Horn
In the event of a fire can be an effective warning sound and flash to notify people to evacuate.
4. Feature of Fire Alarm 24V Strobe Light with Sounder Horn
4.1 Merit:
4.1.1. Equipment operation stable and reliable;
4.1.2. Equipment easy to install, wiring;
4.1.3. Equipment has also issued two kinds of sound and flash an alarm signal, even people with disabilities can be a timely response to evacuate;
4.1.4. When the device is different emergency situations, a variety of alarm options.
5. Technical datas of Fire Alarm 24V Strobe Light with Sounder Horn
5.1 Operating Voltage: DC20V~28V
5.2 Working Current: 100mA~150mA
5.3 Flash Intensity: ≥1.2WS
5.4 Flash Period: ≤1.5s
5.5 Temperature Range: -10℃ ~ +50℃
5.6 Humidity Range: 0%~95%RH
5.7 Sound Pressure Level: ≥100dB
5.8 Life of Flash Light: ≥40000 times
5.9 Type of Sound Alarm: 3 kinds
6. Connecting of Fire Alarm 24V Strobe Light with Sounder Horn
DC 24V+ Control Input +
DC 24V- Control Input -
7. Packing of Fire Alarm 24V Strobe Light with Sounder Horn
Item Parameters Unit
Weight: 51 kg
Volume: 550 * 355 * 290 mm
Quantity: 50 pcs
8. Parameters of Fire Alarm 24V Strobe Light with Sounder Horn

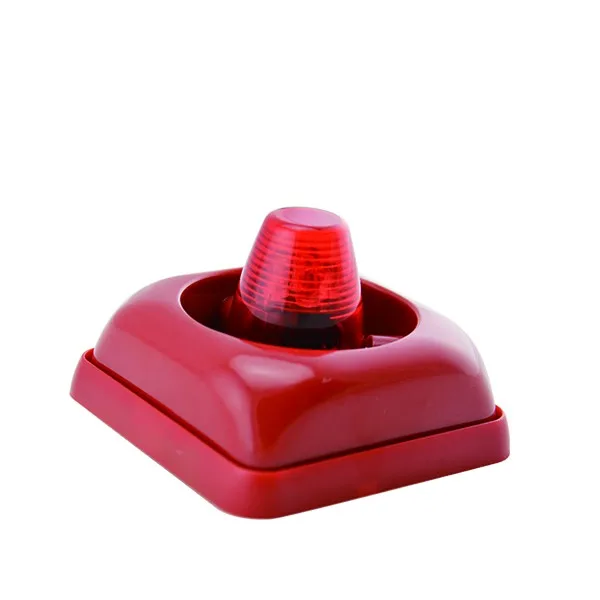

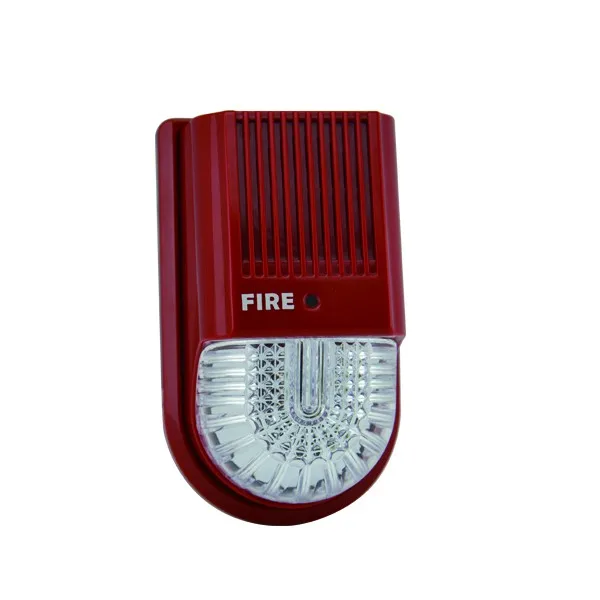

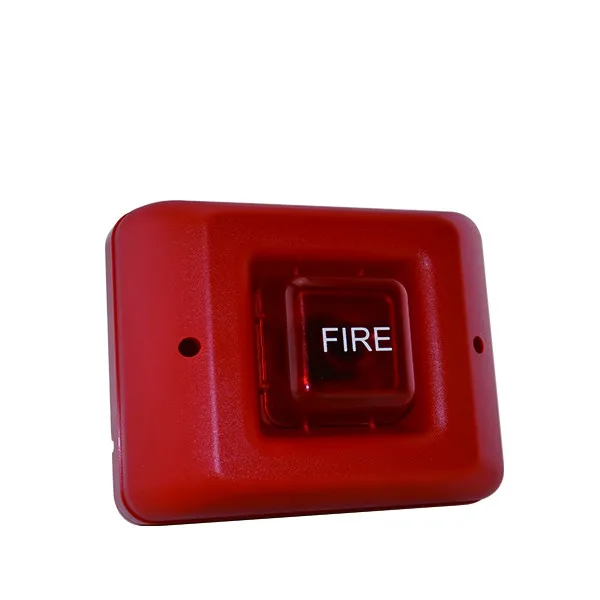

More Fire Alarm Strobe Horn for options:
