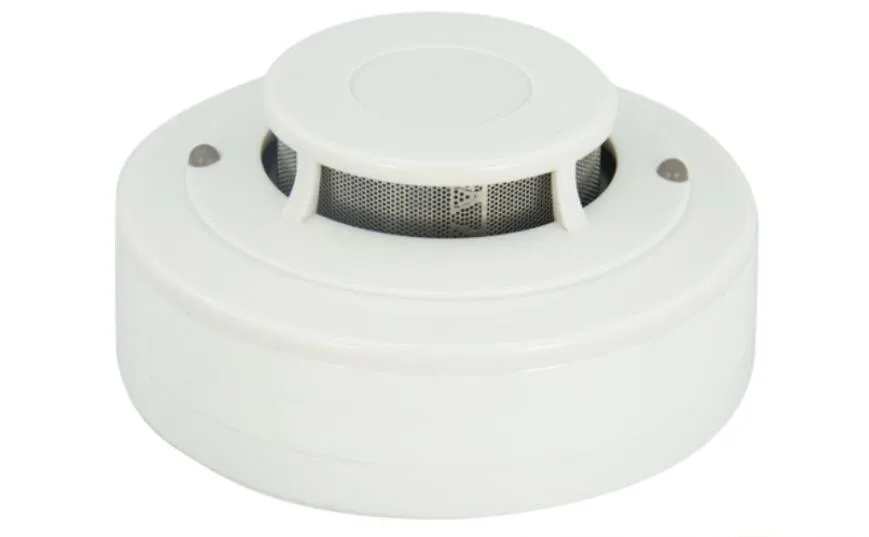

Fire Alarm Smoke Detector
Product Description
———————————————————————————————————————————
A smoke detector is a device that senses smoke, typically as an indicator of fire. Commercial security devices issue a signal to a fire alarm control panel as part of a fire alarm system, while household smoke detectors, also known as smoke alarms, generally issue a local audible or visual alarm from the detector itself.
Smoke detectors are housed in plastic enclosures, typically shaped like a disk about 150 millimetres (6 in) in diameter and 25 millimetres (1 in) thick, but shape and size vary. Smoke can be detected either optically (photoelectric) or by physical process (ionization), detectors may use either, or both, methods. Sensitive alarms can be used to detect, and thus deter, smoking in areas where it is banned. Smoke detectors in large commercial, industrial, and residential buildings are usually powered by a central fire alarm system, which is powered by the building power with a battery backup. Domestic smoke detectors range from individual battery-powered units, to several interlinked mains-powered units with battery backup; if any unit detects smoke, all trigger even in the absence of electricity.
Asenware manufacturing the photoelectric smoke detector,heat detector and smoke/heat combined detector,including 2 wire and 4 wire types.
Product Details
———————————————————————————————————————————
Model No.
| AW-CSD311 | AW-CSD811 | AW-CSD811-4W | AW-CSD812 |
| Product Name | Advantage 2 Wire Conventional Smoke Detector | Advantage 2 Wire Conventional Smoke Detector | Advantage 4 Wire Conventional Smoke Detector | Advantage Smoke Detector with Strobe Sounder |
| Fire sensor | Photoelectric smoke chamber | |||
| Sensitivity | 1.06±0.26%FT | |||
| Control mode | Advantage software | |||
| Connection | 2 wire | 2 wire | 4 wire | 2 wire |
| Operating voltage | DC9-28V | |||
| Standby current | 120μA | 120μA | NC:11mA@24VDC NO:120uA@24VDC | 120μA |
| Alarm current | <15mA | <15mA | NC:2mA @24VDC NO:12Ma@24VDC | <50mA |
| Work conditions | -10℃~50℃;95% Relative humidity, non-condensing | |||
| Material | Shell: Fire resistance plastic;Connector: stainless steel | |||
| Product size | Diameter: 99.45 mm, height: 48.2mm | |||
| Packing details | Carton Box,10PCS/Carton; 10 Carton/Box; Carton: 20.5×23.5×11cm;Box: 43×27×58cm | |||
| Weight | 1.42kg/Carton;14.2kg/Box | |||
| Customization | Logo, color | |||
| Standards | ISO9000,EN54-7, CE,SASO,LPCB | |||
Features
1. Strong Adaptability For Circumstance
2. SMT Design, High Stability
3. 40-60vdc Wide Voltage Operating Range
4. Low Standby Current
5. Power Supply Non-Polarized input
6. Twin Led For 360 Visual
7. Flashing Led Power Indicator
8. Remote Led Indicator Output(2-Wire)
9. Metal Shield. Anti-Electromagnetic Interference
Related Products
———————————————————————————————————————————

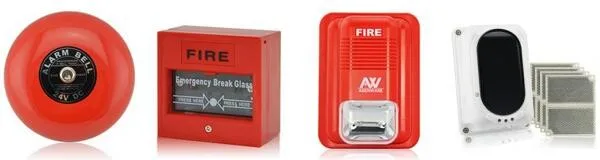

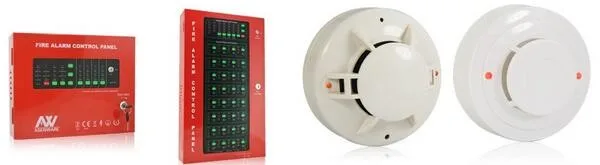

Fire Alarm Panel Fire Alarm Panel Smoke Detector Heat Detector

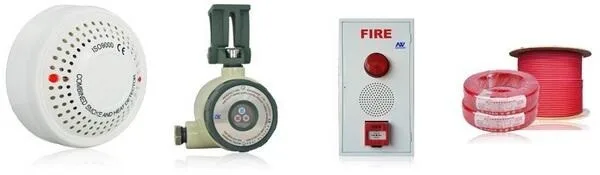

Fire Alarm Bell Manual Call Point Strobe Sounder Beam Smoke Detector
