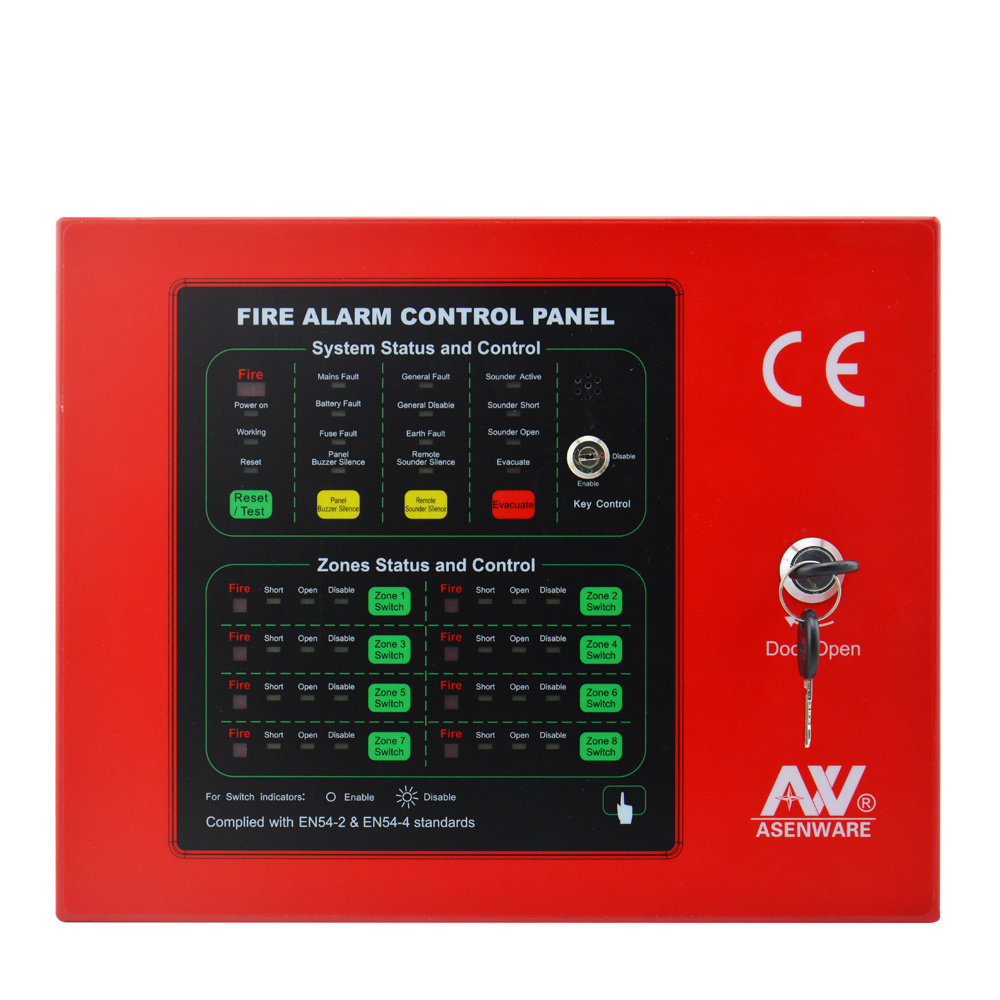

Fire Alarm Control Panel
Product Description
———————————————————————————————————————————
A Fire Alarm Control Panel (FACP), or Fire Alarm Control Unit (FACU), is the controlling component of a Fire Alarm System. The panel receives information from environmental sensors designed to detect changes associated with fire, monitors their operational integrity and provides for automatic control of equipment, and transmission of information necessary to prepare the facility for fire based on a predetermined sequence. The panel may also supply electrical energy to operate any associated sensor, control, transmitter, or relay. There are two basic types of panels: Conventional Panels and Addressable Panels.
ASENWARE conventional fire alarm control panel is designed based on EN54 part 2&4 standard,it is modularized design,the panel can be extend from 1 zone to 32 zone easily,24VDC output,has FIRE and FAULT signal output,upto support 20 detectors for each zones.
Product Details
———————————————————————————————————————————
ITEM | 1 Zone panel | 2 Zone panel | 4-8 Zone panel | 12-32 Zone panel |
Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-8 | AW-CFP2166-12-32 |
Power specification | ||||
Mains supply voltage | 110VAC or 240VAC | |||
Internal power supply | 27.2VDC | |||
Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
Main supply monitor for fault | Yes | |||
Battery protection for low voltage | Yes | |||
Batteries (default configuration) | 12V2AH*2 | |||
- -The series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
- It is modularized design, the panel can expend from 1 zone to 32 zones easily.
- It has 2 level control mode by a lock
- It has 27VDC power supply output.
- It has FIRE PROTECTION, FIRE ROUTING and FAULT signal output, the output can be configured to dry relay type or wet sources type.
- It has 2 channel general sounders output.
- Each zone has 1 circuit detectors input .
- Each zone can be disable by a button.
- It has RESET button to reset the panel.
- It has SILENCE button to stop BUZZER and SOUNDERS.
- It has EVACUATE button to start a manual fire alarm immediately.
- It has TEST button to test all LEDs orderly.
- It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
- It has an optional GSM module for fire alarm by SMS .
- It is economic, user-friendly and easy maintenance.
