Product Description
xlpe fire resistant cable price
Specification
| 1.Material code | AWFIRECABLE02015J1501 | Designer | PONDER XIAO | |
| 2.Product Name | Fire Cable 2×1.5mm | |||
| 3.Design Time | 2015/1/15 | Approval | HANS WANG | |
| 4.Test Requirement | ||||
| 5.IMPEDANCE CONTROL | Ohm ± 5 | |||
| 6.The greatest conductor resistance | 10.2 | Ohm/KM ; 20℃ | ||
| 7.The least conductor resistance | 0.010 | M Ohm/KM ; 70℃ | ||
| 8.Spark machine setting | 6 | AC/KV | ||
| 9.The finished product withstand voltage | 2000 | AC/KV5 Min | ||
| 10.Fire protection standard | Class B | |||

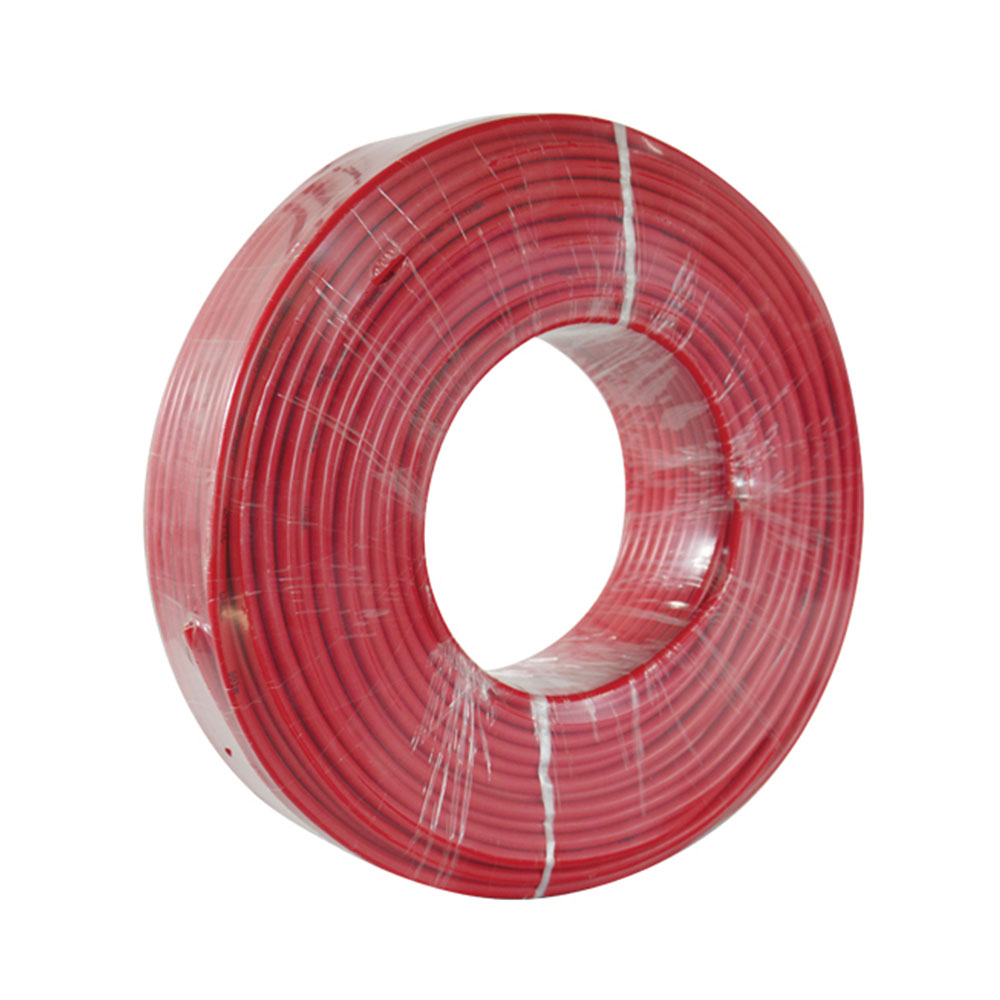

| 11.Specification | NBVV 2×1.5mm Fire Cable | |
| 12.Detail | A(mm) | |
| 13.Conductor | Structure | 1/1.5BC±0.005mm |
| Direction of lay | ||
| External diameter | 1.5 | |
| 14.Insulation | Material | PVC(35P) |
| Standard thickness | 0.5 | |
| Minimum thickness | 0.45 | |
| External diameter | 2.5 | |
| Color | Red,black | |
| 15.Twisted tape | Myra belt | 12MM |
| Earth wire | 1/0.5BC±0.005 | |
| Aluminium Foil belt | Single side Aluminium Foil 12MM*0.00254 | |
| Direction of lay | 110±5MM | |
| External diameter | 5.06 | |
| 16.Ecderon | Material | VR-PVC(50P) |
| Standard thickness | 1.3 | |
| Minimum thickness | 1.105 | |
| External diameter | 7.8±0.3 | |
| Color | Red | |
Company
1.Our company is a professional fire fighting equipment manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
2.Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service.
3.In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
