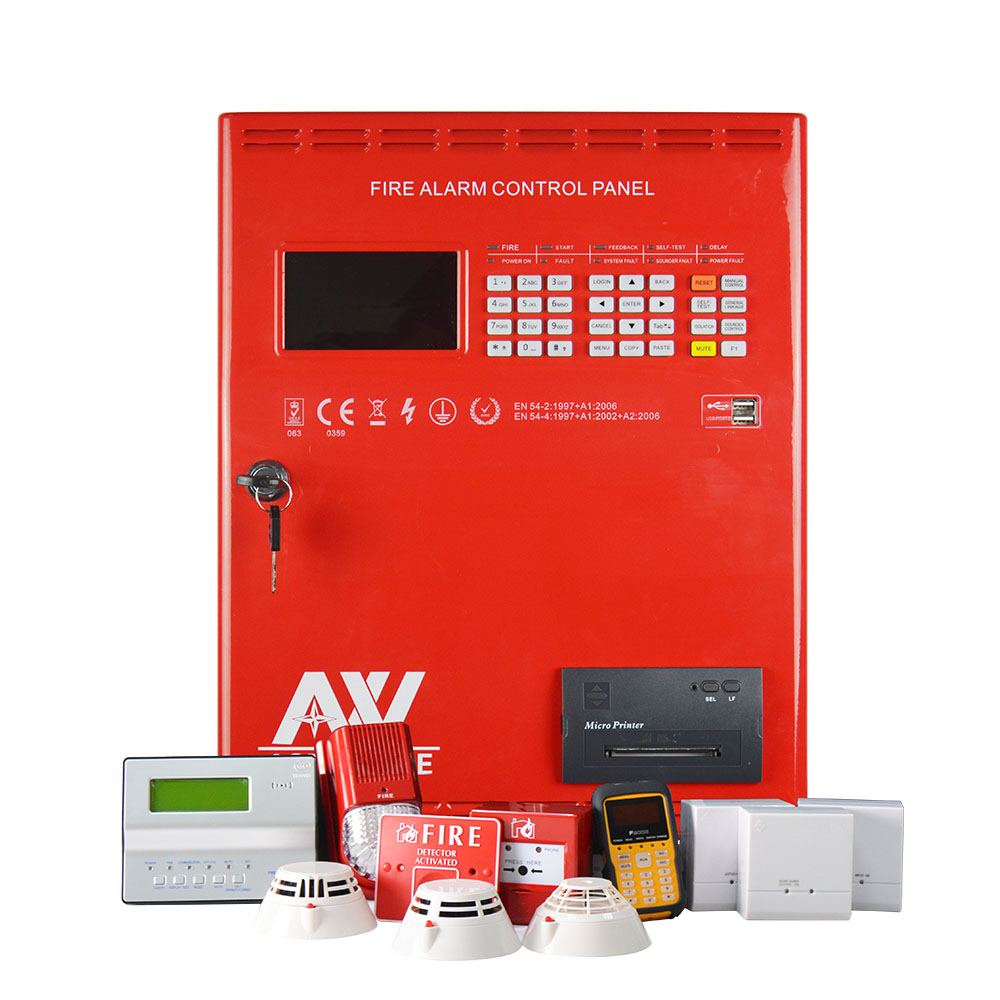

LPCB fire fighting system control panel
| Product Name | LPCB fire fighting system control panel |
| Brand | ASENWARE |
| Model No. | AW-AFP2189 |
| AC Input Voltage | AC 220V ±20% 50Hz |
| AC Input Power | 120W |
| DC Power | DC24V 5.0Ah, two fully sealed maintenance- free DC 12V 5.0Ah storage batteries connected in series. The 24V DC power has a long-term constant output current of 6A. The 5V DC power has a long-term constant output current of 4A. |
| Circuit Bus | Two-wire system; Total length: ≤1500m |
| Voltage V of the Circuit Bus | +20V ≤V ≤ +26V(When the DC power is operating) +24V ≤V ≤ +26V(When the AC power is operating) |
| Temperature | -10℃ to +50℃ |
| Humidity | ≤95% |
| Power Supply | AC 220V 50Hz ; DC 24V 6A |
| Output Contact Capacity | AC 220V 1A ; DC 27.6V 3A |
| Capacity | 324 addresses |
| Service | ODM, ODM is available |
| Warranty | One Year |
| Applicable Places | Hospital; Super Market; Industial Area;Building;College etc |
System introduction:
AW-AFP2189 fire alarm control panel (hereinafter referred to fire control unit) is a new generation of fire alarm control panel launched. In order to meet the engineering design demand, the control unit is provided with both linkage and control functions. It can support uses of other related products of the Company to form an integrated alarm and linkage control system, which is perfectly suitable for the application of small and medium-sized fire alarm and firefighting and linkage integrated control system.
The fire alarm linkage control system is widely used in small and medium-sized firefighting engineering, such as high-grade office building, residential community, department store, gymnasium, exhibition room, library, workshop, supermarket and hotels.
System features:
* Adopts the latest generation of high-speed microprocessor. Data processing rate and data storage capacity reach 100-fold and 1000-fold increase, respectively, compared to traditional technologies
* AW-AFP2189 is provided with 4.3" color display screen (LCD), with a display resolution of 430×272.
* The operation interface imitates Windows menus and window interfaces and is almost the same as the computer operating and using habits, thus facilitates the learning.
* Operation and control are flexible and convenient through the standard USB-interfaced computer keyboard and mouse + the panel buttons are used as field programming devices.
* T9 pinyin input method is provided and texts can be input easily and freely.
* Use smart U disk (optional), which can be used to copy or restore setup file and historical file of the system, thus facilitating the system maintenance.
* It adopts the non-polarity two-bus intelligent alarm linkage pattern and can connect 324 intelligent detectors or intelligent modules at most. The addresses of module detectors can be mix-programmed (optional 324)
* It supports interconnection of 20 AW-AFP2189 control units and the maximum system capacity after networking reaches 20×324=6480 (alarm point)
* The maximum capacity of linkage control unit of a single equipment: 10 points
* The system has the function of recording operation history: 1000 pieces of historical fire alarms, historical requests, historical feedbacks, historical faults and historical operations, respectively.
* The user may customize the equipment type, which can facilitate the system integration
* It has the modular manual single-point start/stop functions, which can facilitate field debugging and testing
* It has the single-point detector/module testing function, the detector working status and test data are clearly displayed
* The system is provided with a dedicated mini-printer as standard, which is used to print various operating statuses of the system immediately
* It can be accessed with area indicating panels, building indicating panels and floor indicating panels, which will extend display information of the control unit to corridor and other locations
* It can be connected with PC to achieve city networking.
* The system carries out the hierarchy management of multi-level users and the users of different levels are granted with corresponding operating system permissions, which is convenient for system management
* It is possible to update the system on the field or remotely to ensure the system operates stably and reliably
* Standards: GB 4717-2005 Fire Alarm Control Unit; GB 16806-2006 Automatic Control System for Fire Protection
Cabinet dimension:
Applicable Places
Super Markets; Factories; Hospitals; Restaurants; Hotels; Schools;
Industrial Buildings; Civil Buildings; Commercial Buildings; Government Buildings,etc.
High-grade office building, Residential community, Department store, Gymnasium, Exhibition room, Library, Workshop.
Packaging
PP Bag per Set to protect the Addressable Fire Alarm System Control Panel/Carton Box outside
0.05 CBM/Set
11.5 KG/Set (With battery)
8.5 KG/Set (Without battery)
The addressable fire alarm control system 2188 series matched the below detectors and accessories:
* AW-ASD2188: addressable photoelectric smoke detector
* AW-ATD2188: addressable fixed temperature heat detector
* AW-AGD2188: addressable gas detector
* AW-AMC2188: addressable manual call point
* AW-ASS2188: addressable strobe sounder
* AW-RP2188: addressable repeater/annuanciator
* AW-CODER2188: coder for setting address.
* Others like Addressable module: Input module; Output module; Short circuit isolator.
