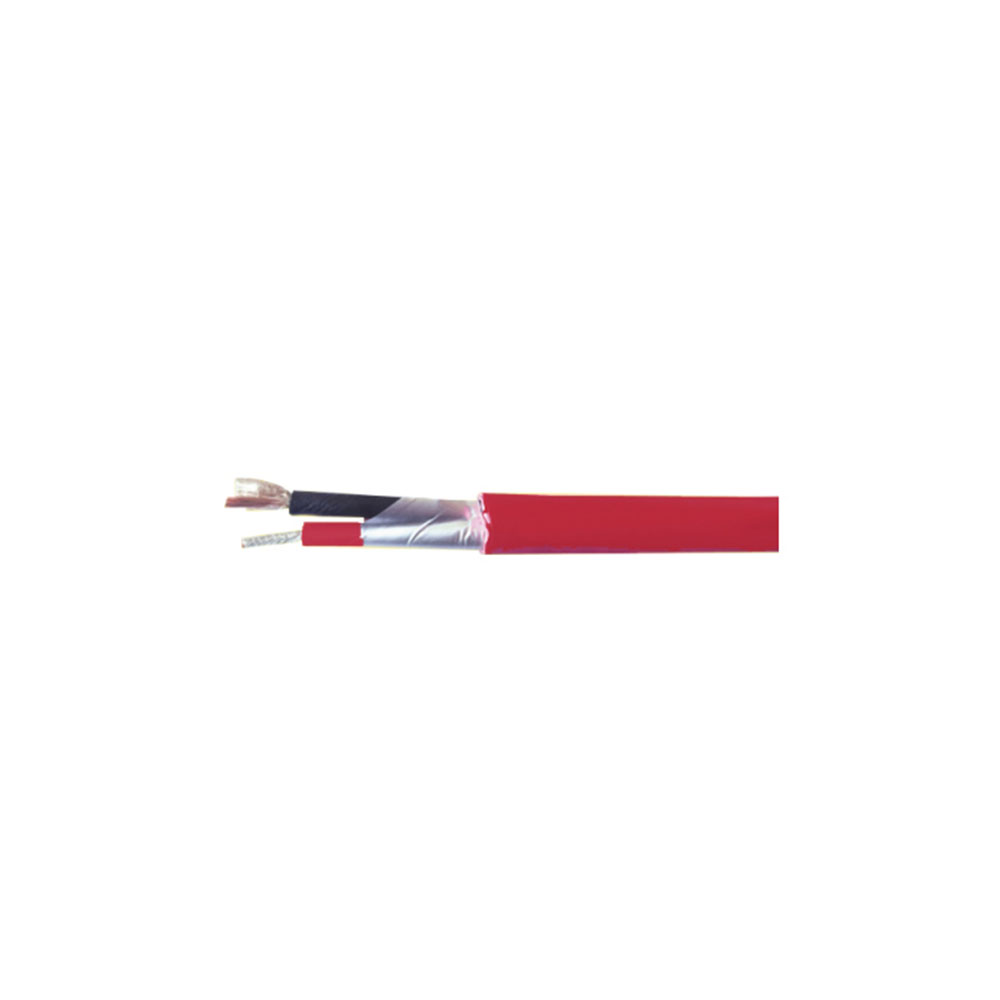

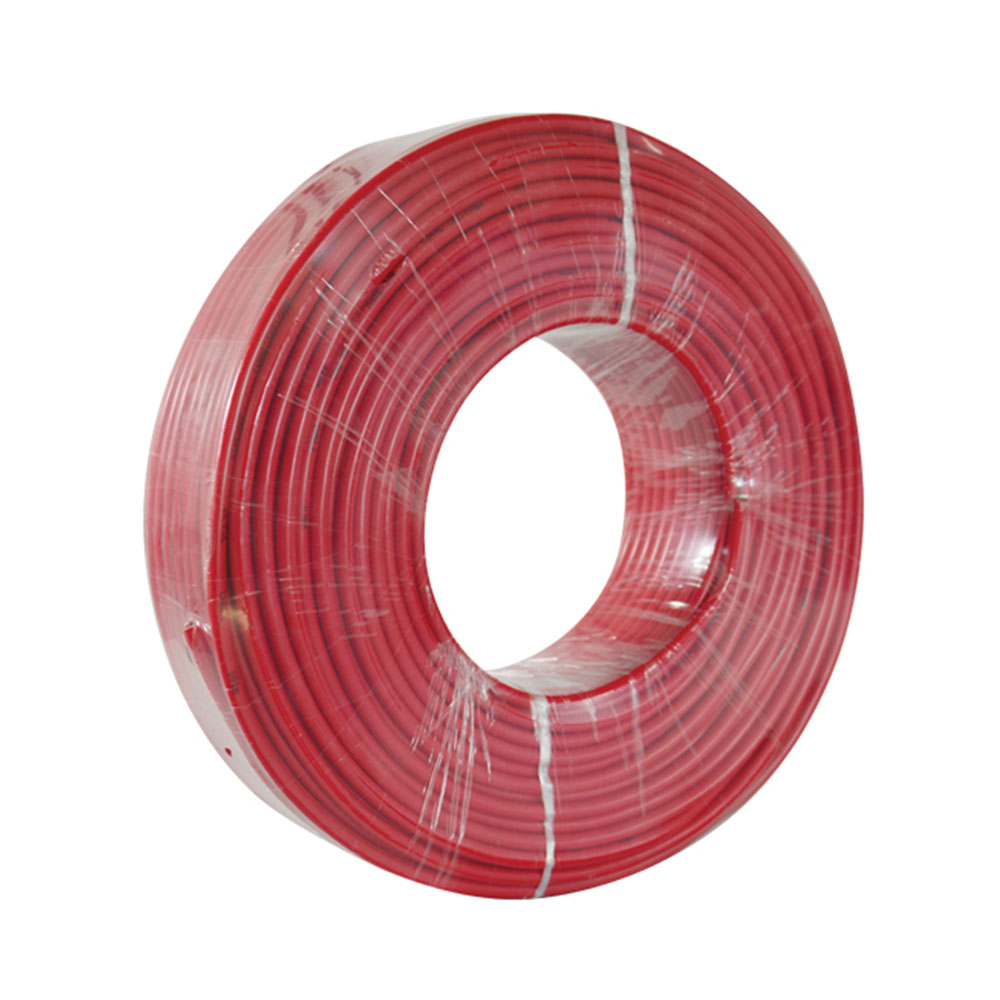

Asenware fire cable
Specification
| 1.Material code | AWFIRECABLE02015J1501 | Designer | PONDER XIAO | |
| 2.Product Name | Fire Cable 2×1.5mm | |||
| 3.Design Time | 2015/1/15 | Approval | HANS WANG | |
| 4.Test Requirement | ||||
| 5.IMPEDANCE CONTROL | Ohm ± 5 | |||
| 6.The greatest conductor resistance | 10.2 | Ohm/KM ; 20℃ | ||
| 7.The least conductor resistance | 0.010 | M Ohm/KM ; 70℃ | ||
| 8.Spark machine setting | 6 | AC/KV | ||
| 9.The finished product withstand voltage | 2000 | AC/KV5 Min | ||
| 10.Fire protection standard | Class B | |||
| 11.Specification | NBVV 2×1.5mm Fire Cable | |
| 12.Detail | A(mm) | |
| 13.Conductor | Structure | 1/1.5BC±0.005mm |
| Direction of lay | ||
| External diameter | 1.5 | |
| 14.Insulation | Material | PVC(35P) |
| Standard thickness | 0.5 | |
| Minimum thickness | 0.45 | |
| External diameter | 2.5 | |
| Color | Red,black | |
| 15.Twisted tape | Myra belt | 12MM |
| Earth wire | 1/0.5BC±0.005 | |
| Aluminium Foil belt | Single side Aluminium Foil 12MM*0.00254 | |
| Direction of lay | 110±5MM | |
| External diameter | 5.06 | |
| 16.Ecderon | Material | VR-PVC(50P) |
| Standard thickness | 1.3 | |
| Minimum thickness | 1.105 | |
| External diameter | 7.8±0.3 | |
| Color | Red | |
