Home > Products > 1 to 32 Zone 2 Wires Network 24V Conventional Fire Detection Alarm System Control Panel
1 to 32 Zone 2 Wires Network 24V Conventional Fire Detection Alarm System Control Panel
Click on the image to view the original image
Product： views：241 to 32 Zone 2 Wires Network 24V Conventional Fire Detection Alarm System Control Panel
Branch： Asenware
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:59
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Asenware
Model Number:
AW-CFP2166-4
Product name:
Conventioanl fire alarm control panel
Number of zones:
4 zones
Sounder circuits:
2 circuits
Fire output type:
NC/NO relay
Power supply:
110VAC or 240VAC
Total output current:
3A @ 240VAC
Features:
relay output for each zone
Batteries:
12V2AH*2
Color:
Red or as customized
Certificate:
LPCB,CE,ISO9001
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton box
Port
Shenzhen/Hongkong
Product Description

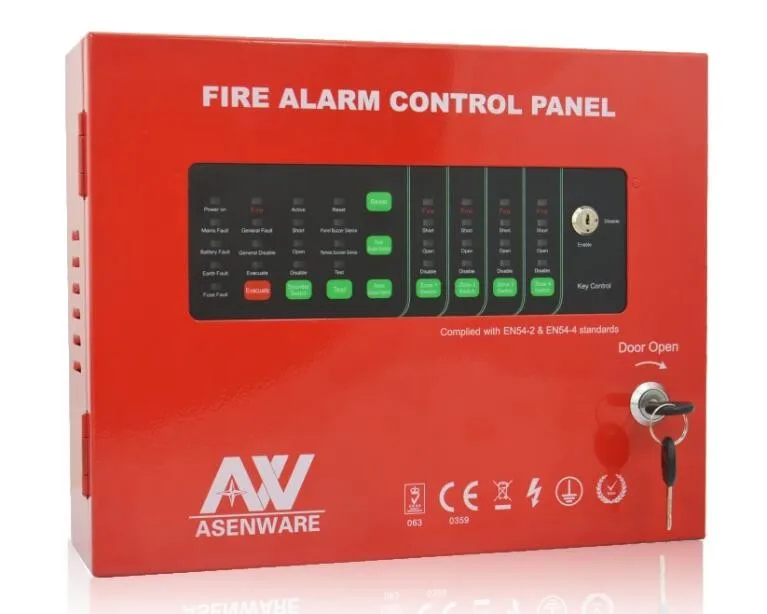

Fire Alarm Control Panel # AW-CFP2166-4

A Fire Alarm Control Panel (FACP), or Fire Alarm Control Unit (FACU), is the controlling component of a Fire Alarm System. The panel receives information from sensors designed to detect changes associated with fire, monitors their operational integrity and provides for automatic control of equipment, and transmission of information necessary to prepare the facility for fire based on a predetermined sequence.

4 Zone Conventional Fire Alarm Control Panel # AW-CFP2166-4
Mains supplt voltage
110VAC or 240VAC
Internal power supply
27.2VDC
Total output current limited
3A@240VAC
Main supply monitor for fault
YES
Number of detector circuit
4
End of the line device
6.8K Ω,5%tolerance,0.25W
Detector continuity diodes
Silicon 1N4001 or Schottky type
Call point resistor value
470-680Ω,0.225W or 0.5W
Maximum capacity of detectors per zone
20
Maximum capacity of manual call point per zone
No Limit
Number of sounder circuit
2
Maximun capacity of bells @ 20mA
20
Fire output
NC and NO relay
Battery
12V2Ah*2
Battery protection
YES
Certificates
LPCB,CE,ISO9001
Detailed Images
Related Products

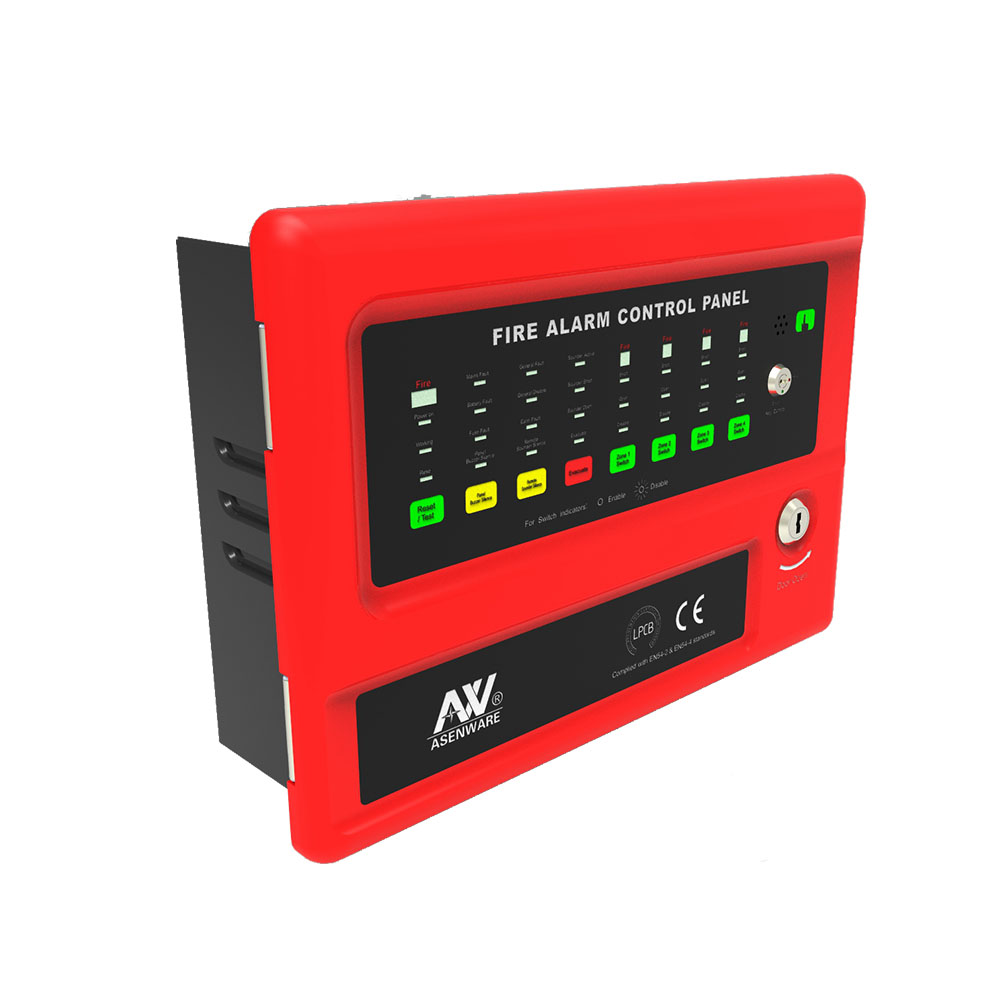

      2 Zone Fire Alarm Panel

          # AW-CFP2166-1

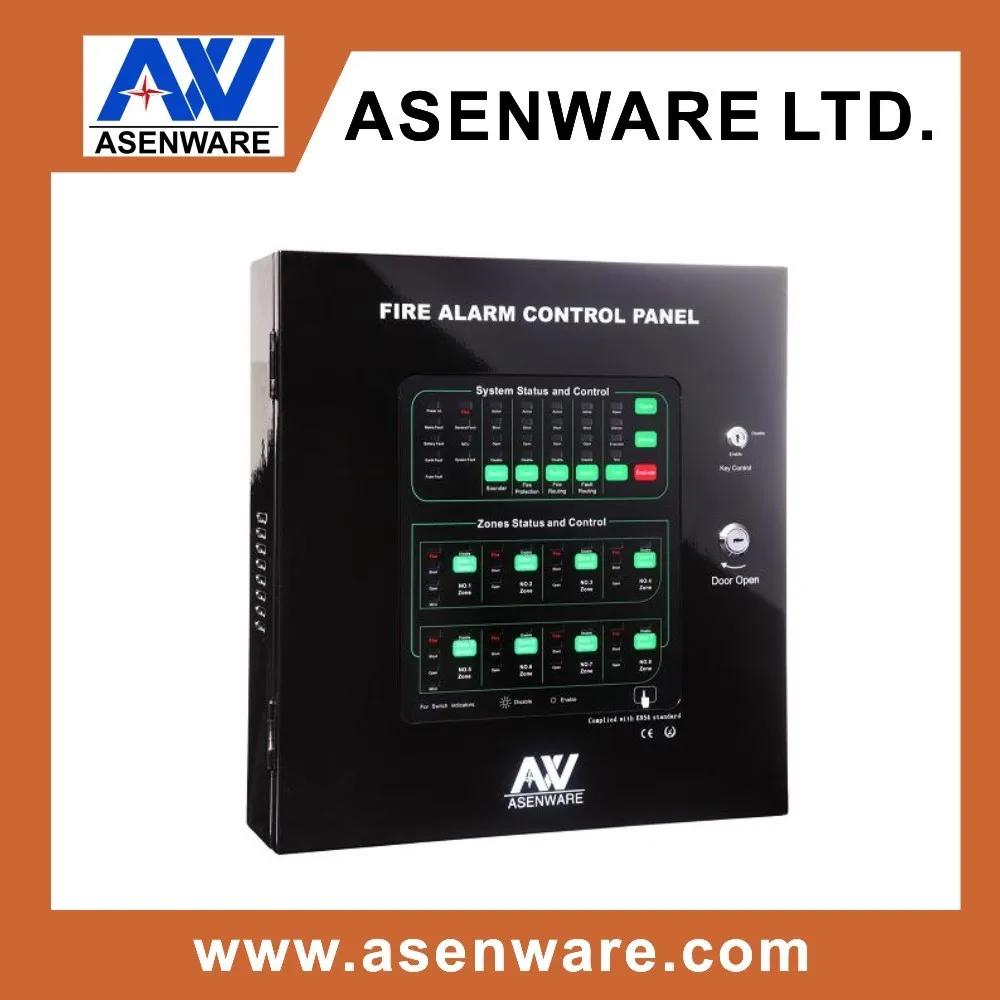

    8 Zones Fire Alarm Panel

            # AW-CFP2166-8

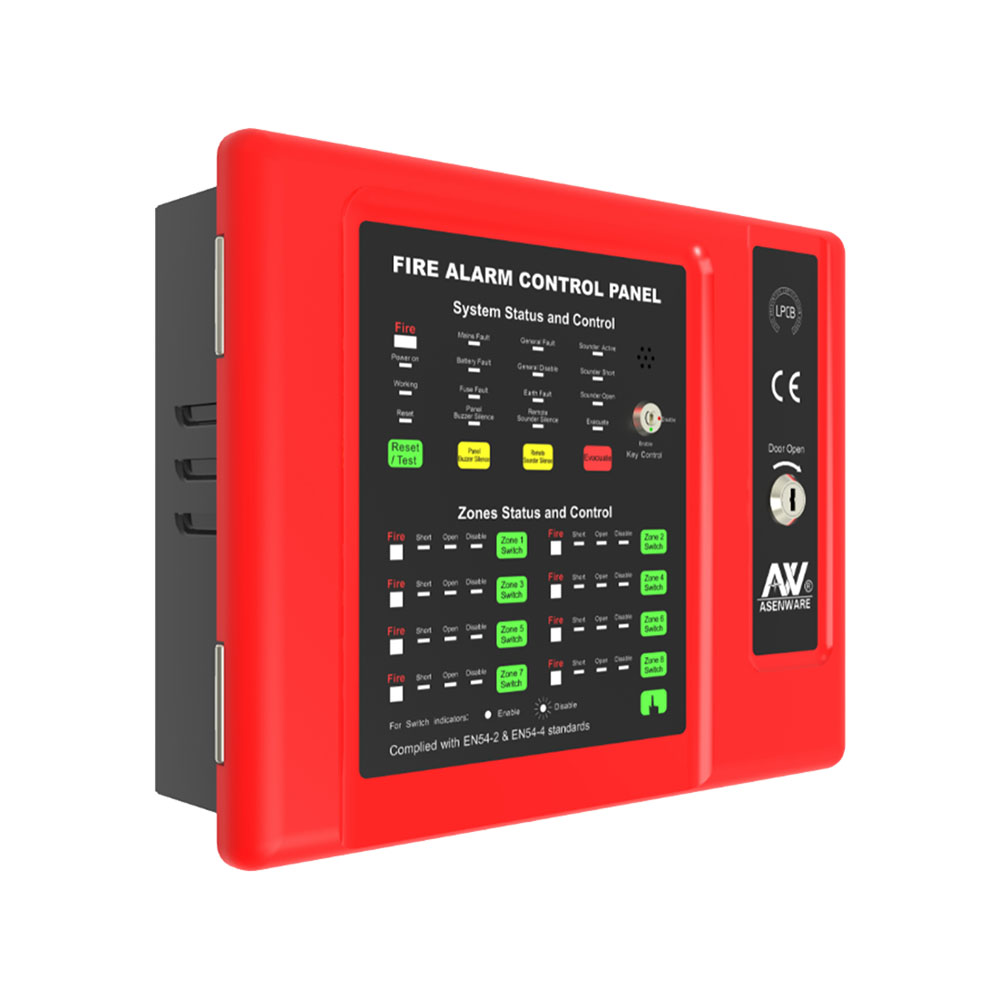

  32 Zones Fire Alarm Panel

          # AW-CFP2166-32

Conventional Smoke Detector

            # AW-CSD811

Fire Alarm Manumal Call Point

           # AW-CMC2166-1

Conventional Smoke & Heat Detector # AW-CSH831

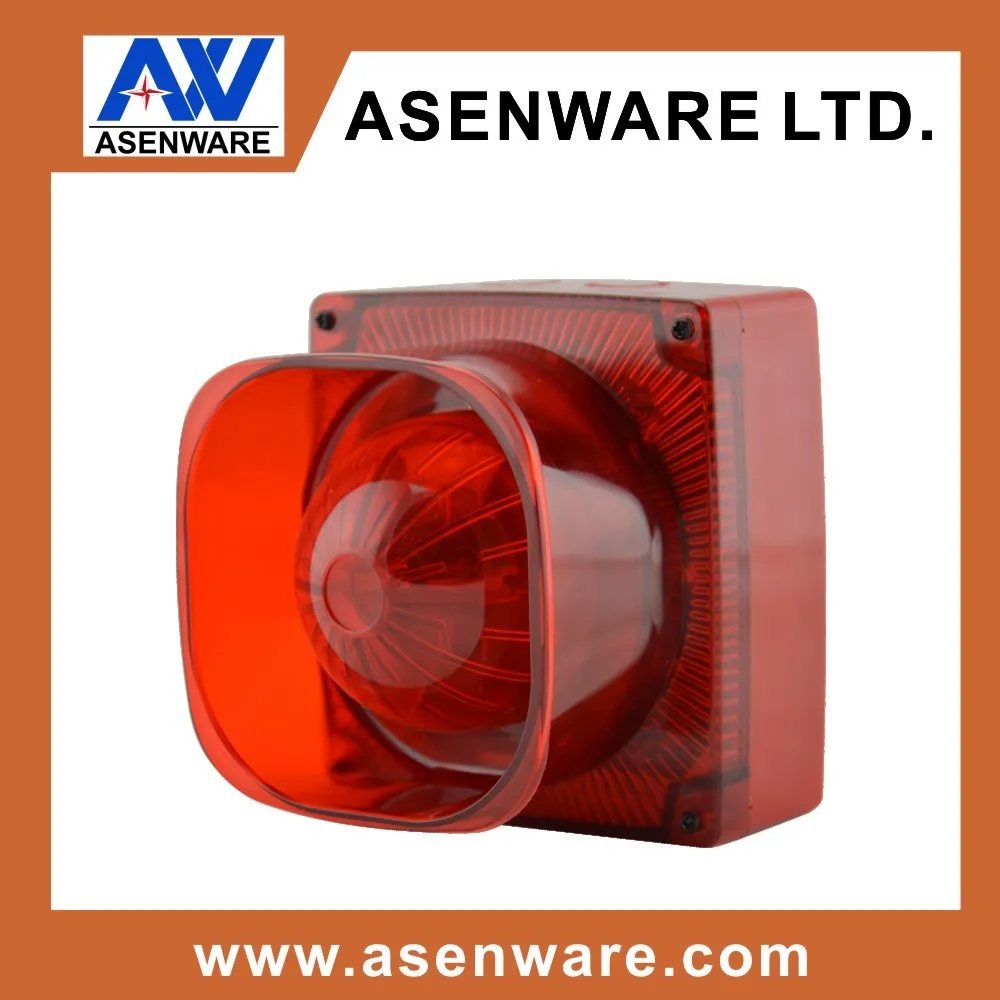

           Fire Alarm Sounder

            # AW-CSS2166-4

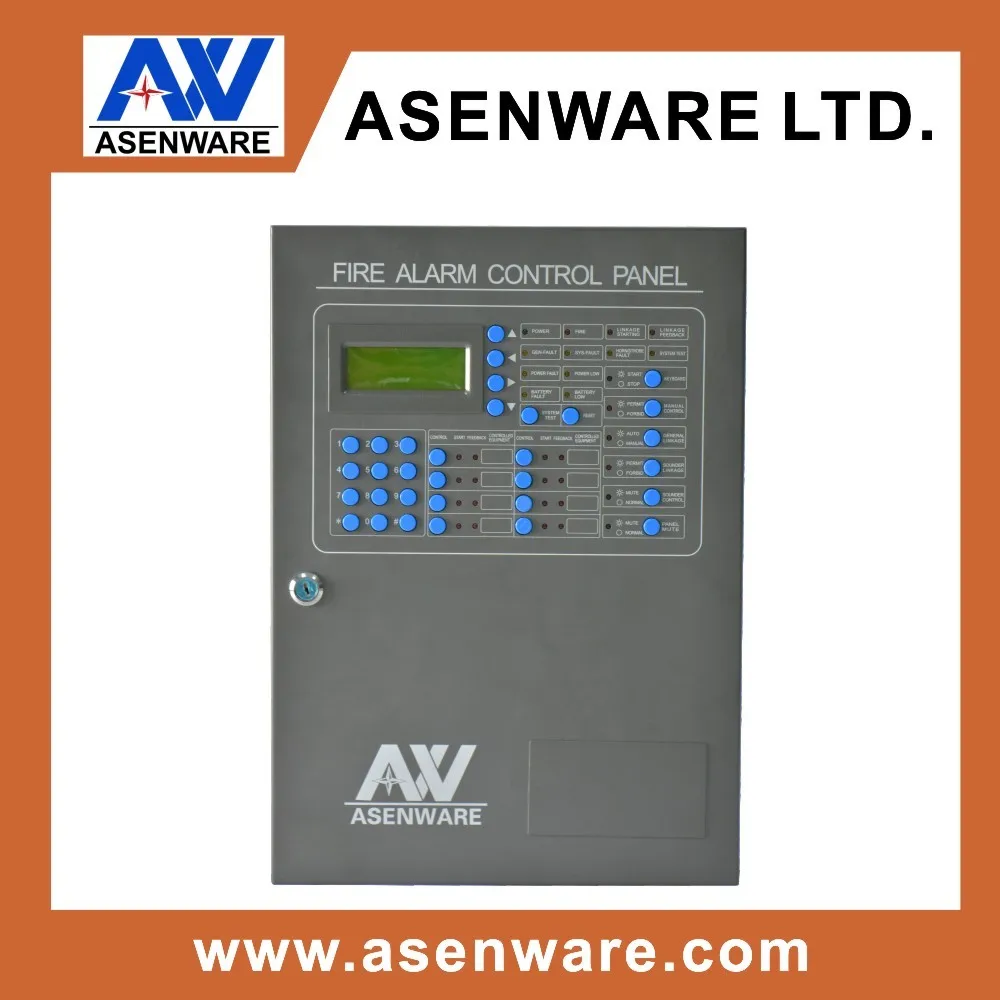

Addressable Fire Alarm Panel

            # AW-AFP2188

Addressable Fire Alarm Panel

            # AW-AFP2100

Packing & Delivery
Certifications
Our Service

* OEM & ODM is available.
* Support factory inspection.
* Standard quality control system.
* Different choices of payment and delivery.
*Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.

Our Company
FAQ

Q1. Can I have a sample order for 4 zone fire alarm control panel?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for 4 zone fire alarm control panel order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for 4 zone fire alarm control panel?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on 4 zone fire alarm control panel?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
