Relay Output UV Flame Detector
General Description of Ultraviolet UV Flame Detector:
Ultraviolet (UV) flame detectors work by detecting the UV radiation emitted at the instant of ignition. While capable of detecting fires and explosions within 3–4 milliseconds, a time delay of 2–3 seconds is often included to minimize false alarms which can be triggered by other UV sources such as lightning, arc welding, radiation, and sunlight. UV flame detectors typically operate with wavelengths shorter than 300 nm. The solar blind UV wavelength band is also easily blinded by oily contaminants.
Specifications of AW-FD602-UV Conventional UV Flame Detector:
| Conventional UV Flame Detector | |
| Model No. | AW-FD602-UV |
| Operating Voltage Range | 12 to 30 VDC Volts |
| Standby Current | ≤10 mA @ 24 VDC |
| Alarm Current | ≤30 mA @ 24 VDC |
| Spectrum | 180~290nm |
| Detection Angle | 110 degree |
Detection Sensitivity | Grade I, 25m@flame |
| Relay Contact Load | 1A@DC24V |
| Normal Status | LED blinking in 5 seconds interval |
| Alarm Status | LED lit steady |
| Protection rating | IP32 |
| Operating Humidity Range | 10% to 93% Relative Humidity, Non-condensing |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Height | 1.8 (45 mm) installed in Base |
| Diameter | 4.0 (103 mm) |
| Weight | 5.4 oz. (153g) |
Features of AW-FD602-UV Conventional UV Flame Detector:
*Advanced electronic technology used to minimise false alarms
*Wide operating voltage 12-30VDC
*Designed to meet approvals worldwide
*Dual leds for 110 degree visibility
*Compatible with a wide range of bases
*Attractive design
*Can be fitted to a duct-sampling unit
*Remote LED output
*Lockable to base to stop unauthorised removal
*IP 32

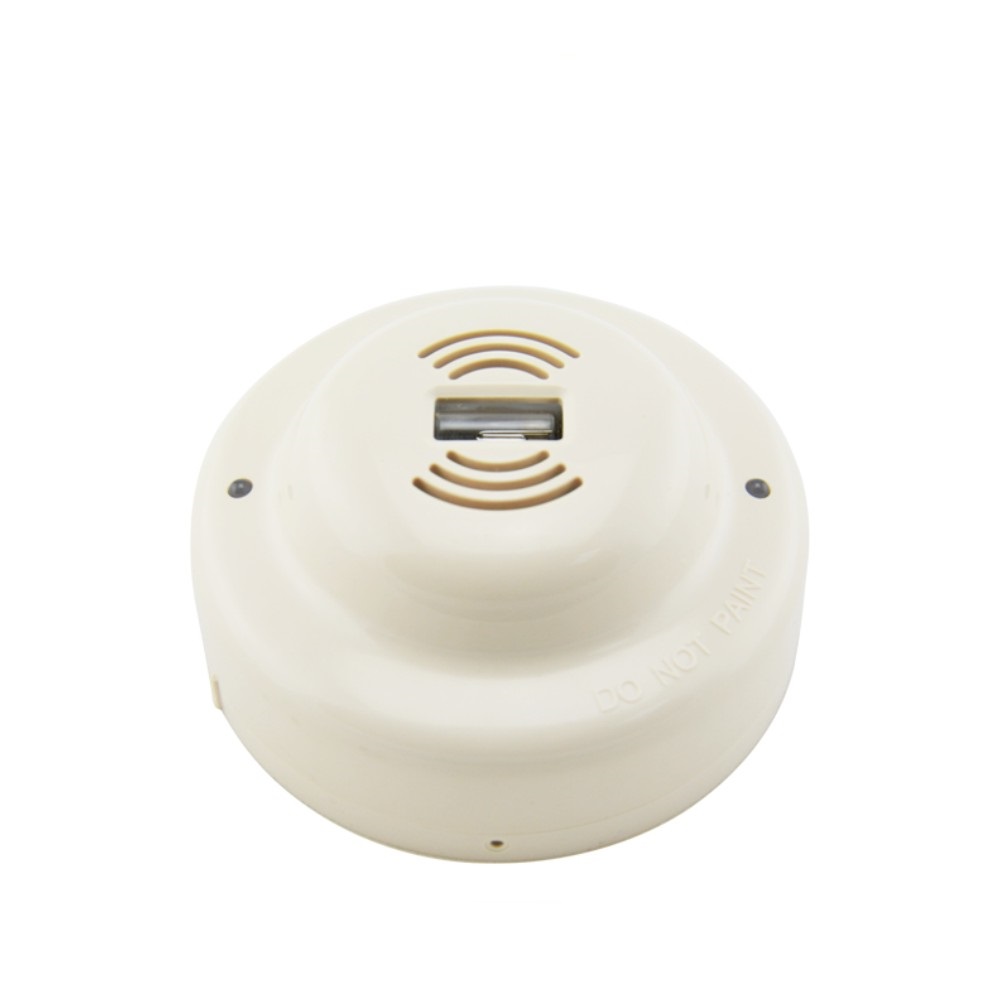

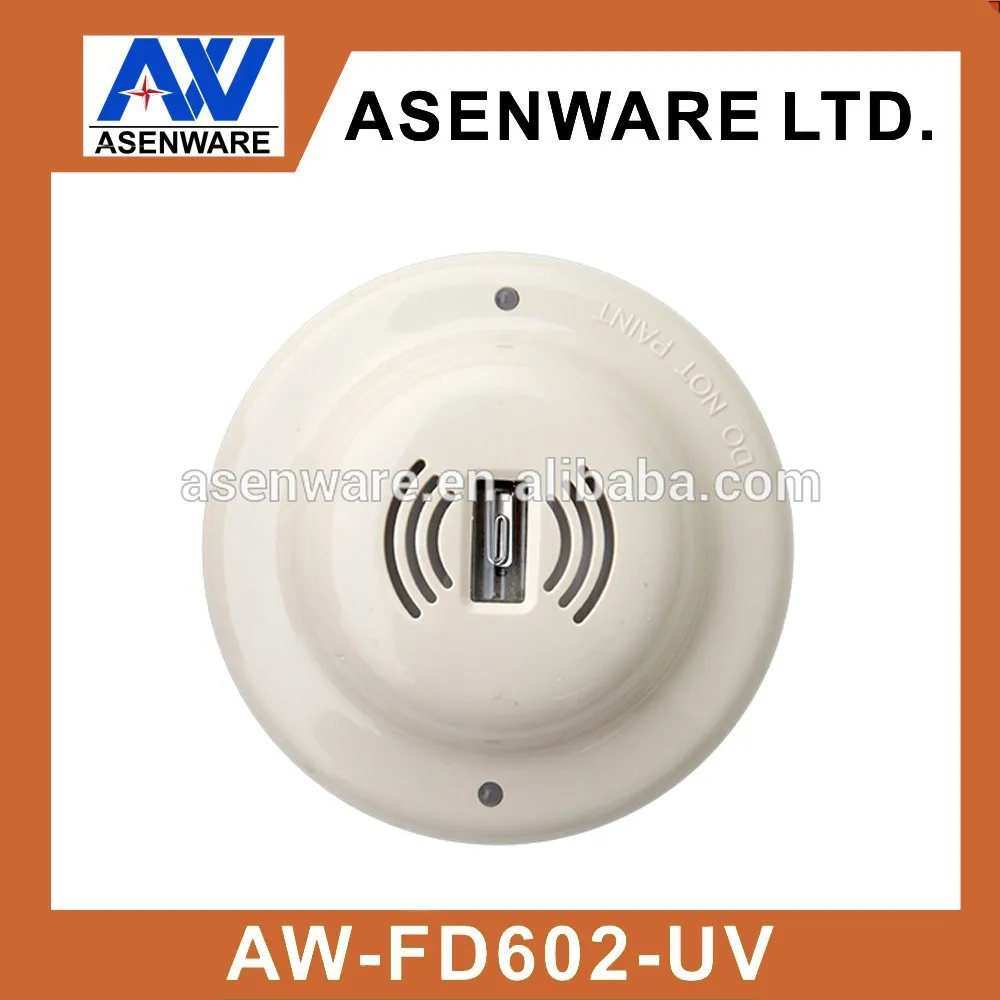

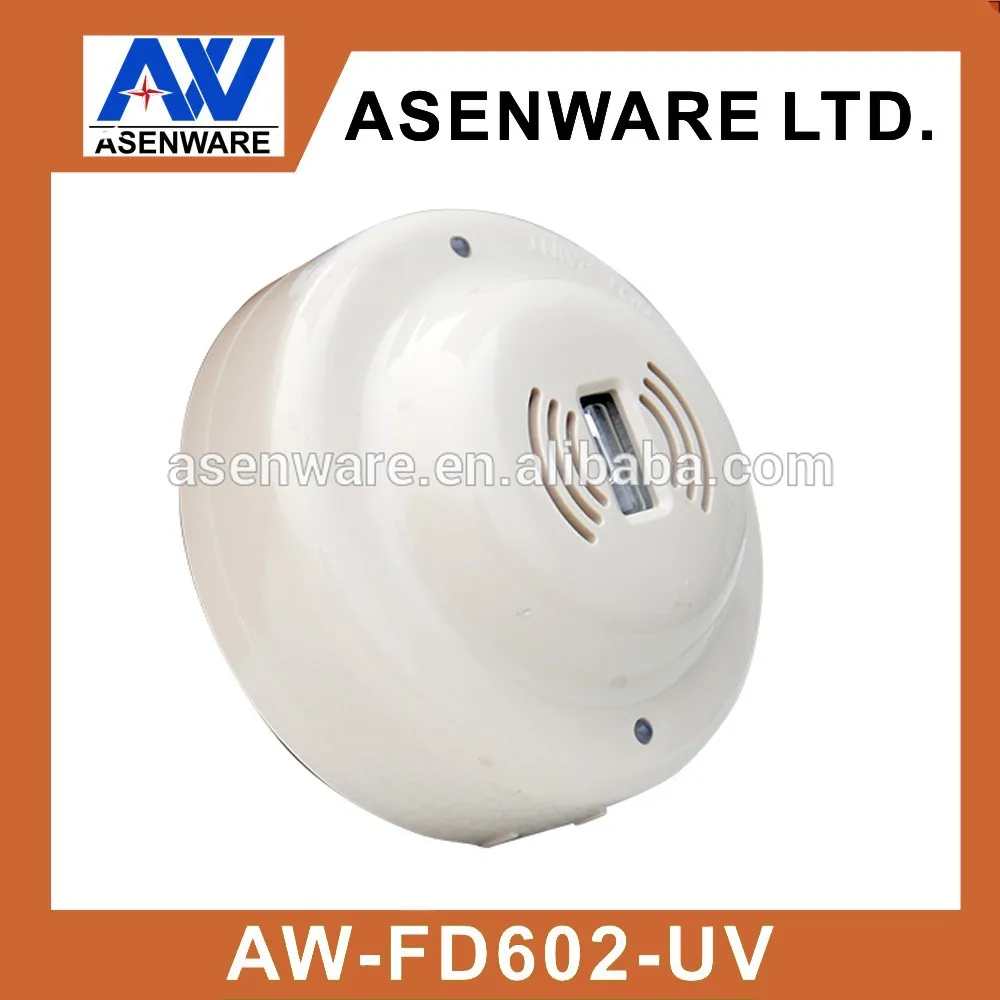

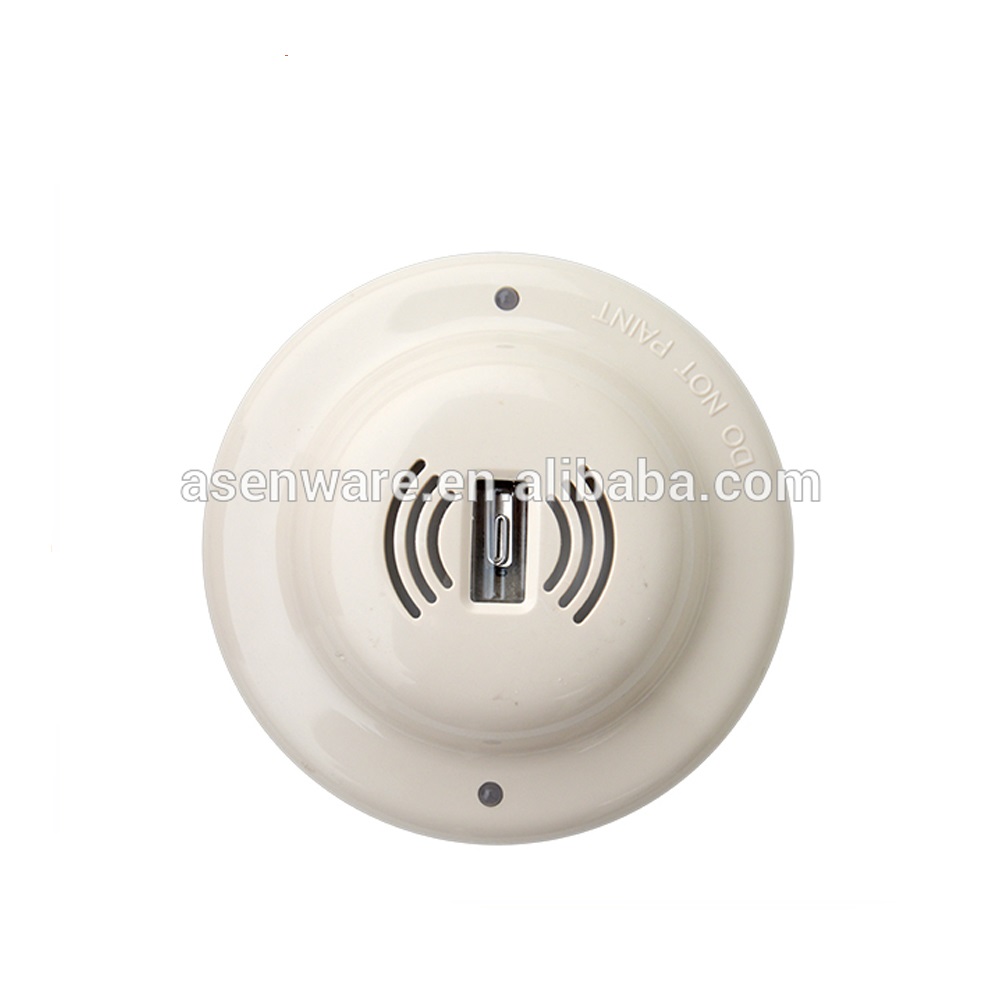

Photos of AW-FD602-UV Conventional UV Flame Detector:

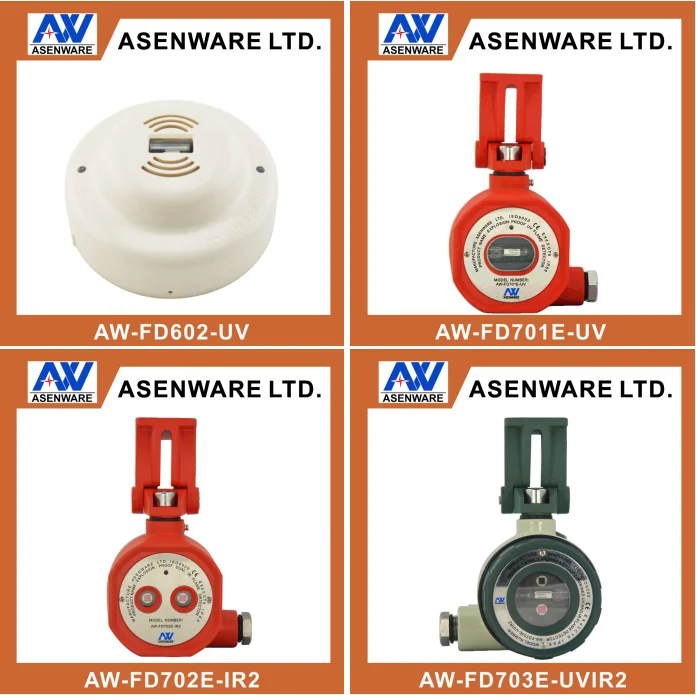

Related Products of AW-FD602-UV Conventional UV Flame Detector:
1.AWCFP2166 1-32 Zone Conventional Fire Alarm Control Panel
2.AW-CSD411-2/4W:Conventional photoelectric smoke detector
3.AW-CSD501-2/4W:Conventional photoelectric smoke detector
4.AW-CSH202:Conventional smoke and heat combined detector
5.AW-FD602-UV:UV flame detector
6.AW-FD701E-UV:Explosion-proof UV flame detector
7.AW-FD702E-IR2:Explosion-proof IR2 flame detector
8.AW-FD703E-UVIR2:Explosion-proof UV/IR2 combined flame detector
9.AW-FD704E-IR3:Explosion-proof IR3 Flame Detector
...
