8 Zone Fire Telephone Panel with Telephone Jack
Features of Fire Telephone System
* AW-FTP2008 fire telephone panel is a new fire special communications equipment, when
the fire accident, which provides a convenient means of communication, the fire control and
alarm systems necessary communications products. Wall-mounted structure, easy to install,
suitable for small systems.
* The device is composed of a star switchboard fire communications systems. You need to
connect an extension before the composition of the fire alarm communication systems.
Extension is a dedicated co-electric fire telephone or regular telephone.
* When the device goes off-hook extension audible alarm. When the extension with the
switchboard call, the corresponding extension indicator light, stop the sound and light alarm
* The device can simultaneously call multiple extensions. Each extension can be inserted at
any time or to exit.
* The device uses a digital recording, reliable, durable and automatic record ing for each call.
* All keys are used on the device panel touch keys, feel good, beautiful, reliable and durable.
* This equipment working conditions: temperature of 0 ~ 40 ℃, relative humidity
40% ~ 85%, no vibration.
Technical Specification of Fire Telephone System:
Product Name | 8 Zone Fire Telephone Panel with Telephone Jack |
Brand | Asenware |
Model No. | AW-FTP2008 |
Panel Capacity | 8 zones |
Operation Voltage | 24VDC±10%, 220VAC |
AC Current | ≤0.5A |
Environment Temperature | 0~40° C |
Relative Humidity | 40%~85% |
Frequency Range | 300 ~ 3400Hz (± 3 dB) |
Crosstalk level | less than -60dB (600 ohm load) |
Transmission attenuation | less than 5dB |
Dimension | 385mm ×330mm ×120mm |
Gross Weight | 4.15kg |
Fire Telephone Whole System:

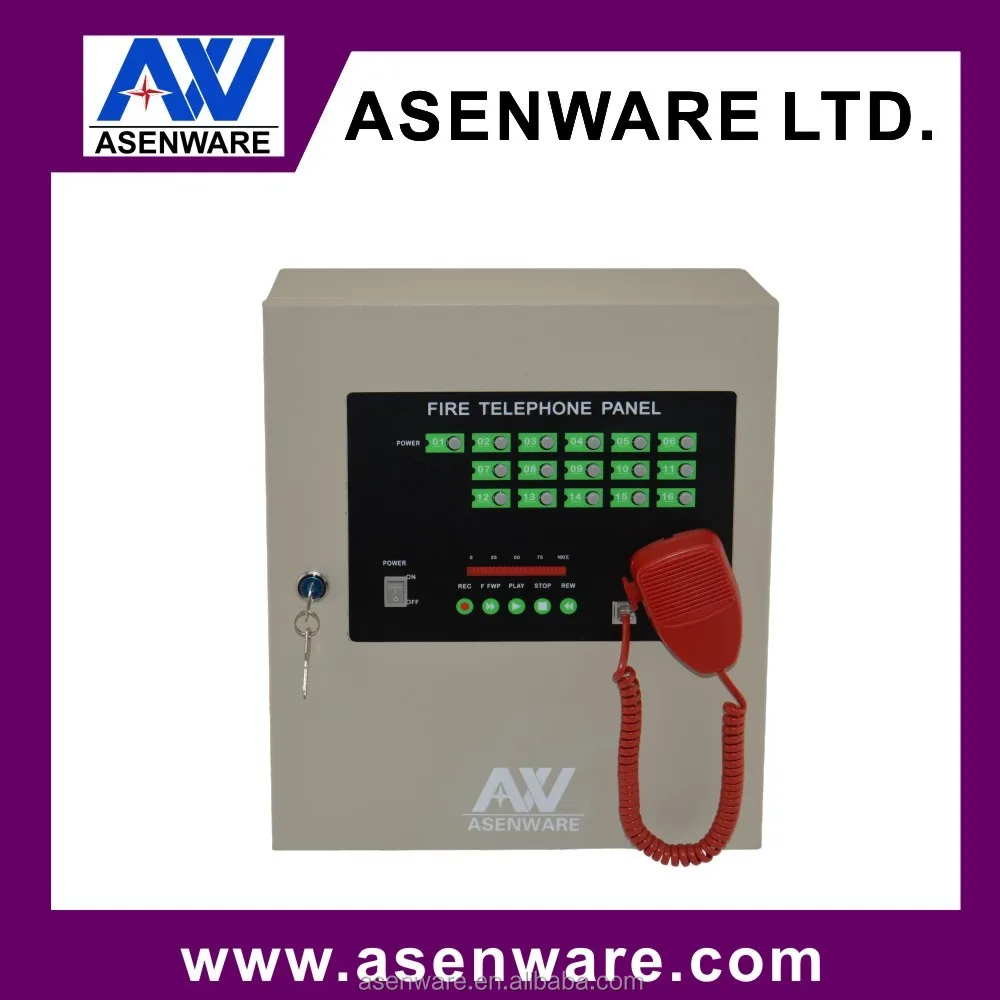

Fire Telephone Panel
* 8/16 Zone conventional fire telephone center
* 2 Way voice communication
* Wall mounted type
* Operator can select single or grough call
* Operator ccan ring outstations and fixed handsets
* Operating Voltage: AC220V 50HZ OR DC24V
* Alarm Current: ≤0.5A
* Temperature Range: 0℃~+40℃
* Humidity Range: 40%~85%RH NO VIBRATION
* Frenquency range: 300-3400HZ(±3DB)
* Cross level: less than -60db
* Dimension: Size: 385*330 *120mm

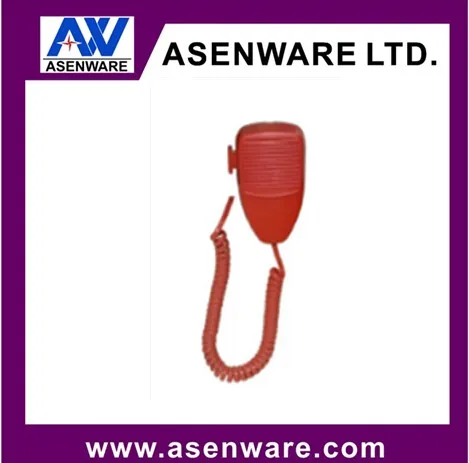

Fire Telephone Speaker
* Compatiable with fire telephone panel
* Operating Voltage:AC220V 50HZ OR DC24V
* Alarm Current: ≤0.5A
* Temperature Range:0℃~+40℃
* Humidity Range:40%~85%RH NO VIBRATION
* Dimension:: Size:9*5.5*3.5cm

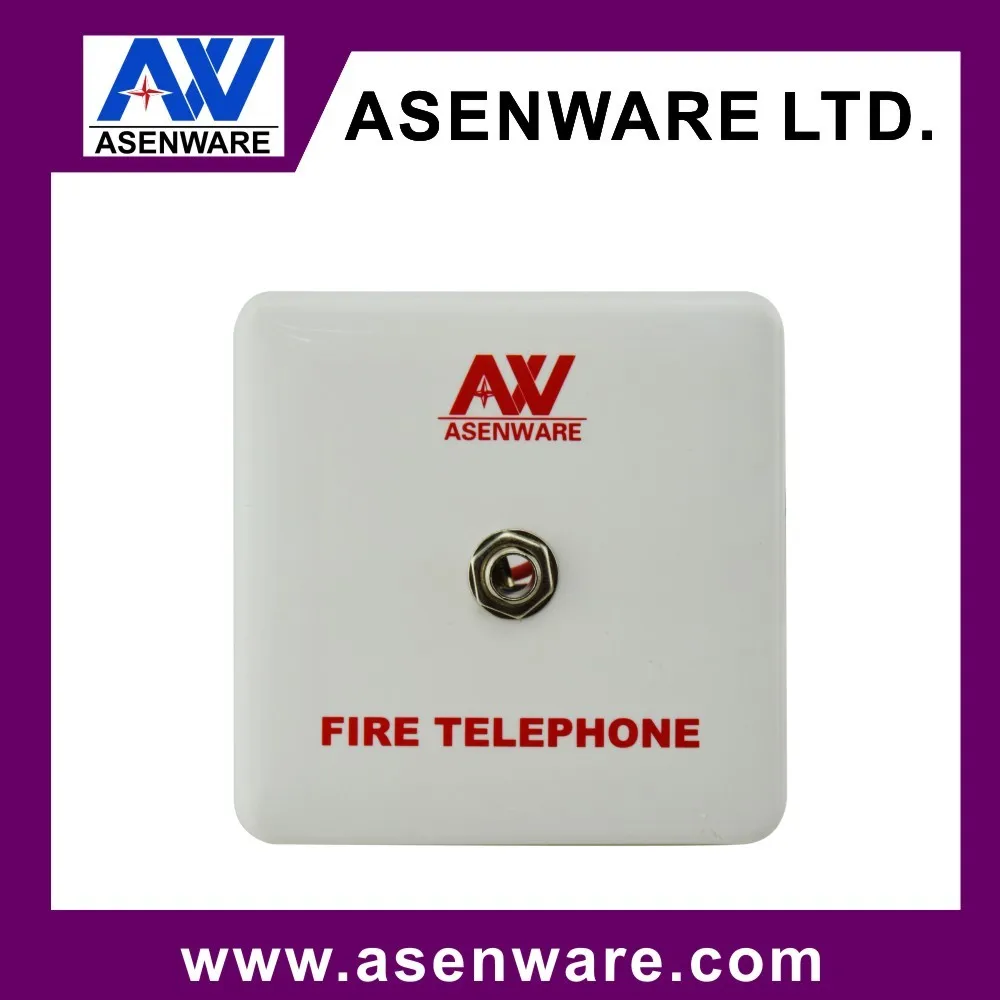

Fire Telephone Jack Socket
* Simple install mobile handset into jack to establish
* Compatible with conventional fire telephone handset in same zone
* Operating Voltage:AC220V 50HZ OR DC24V
* Dimension: Size: 85*85*10mm

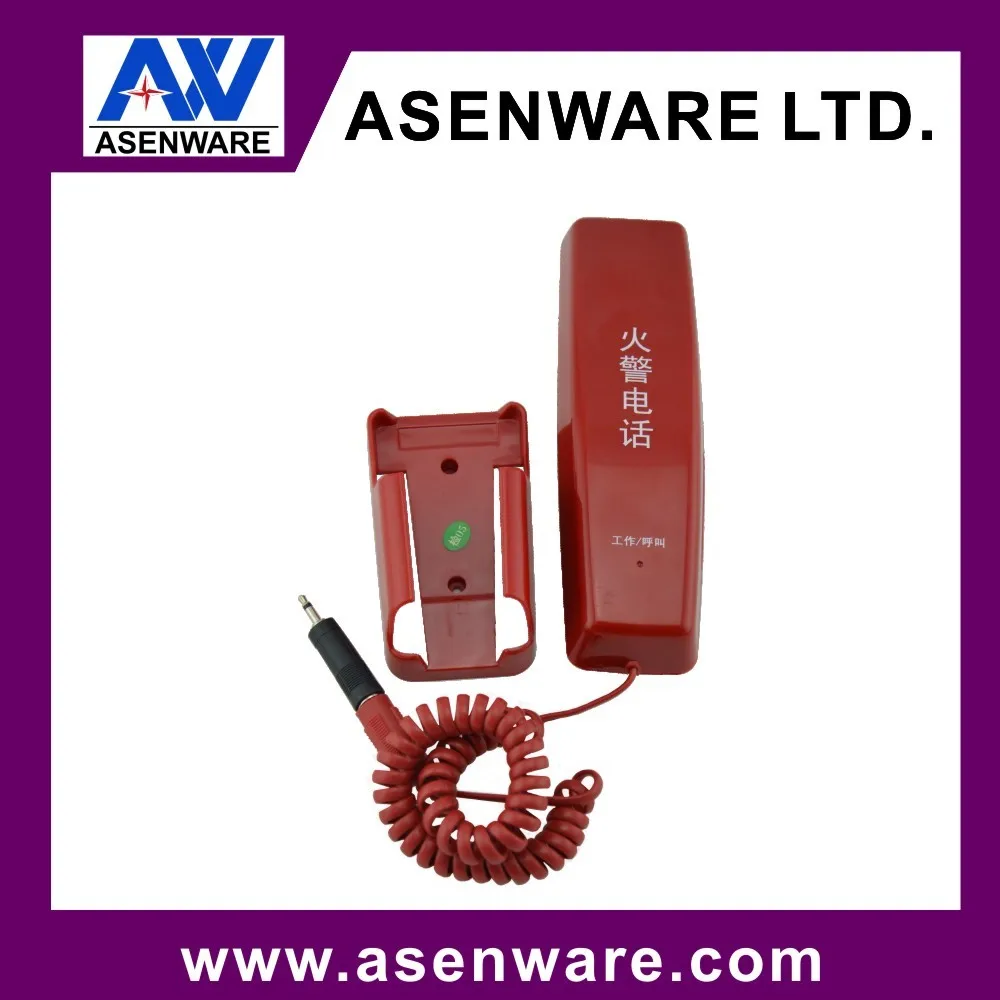

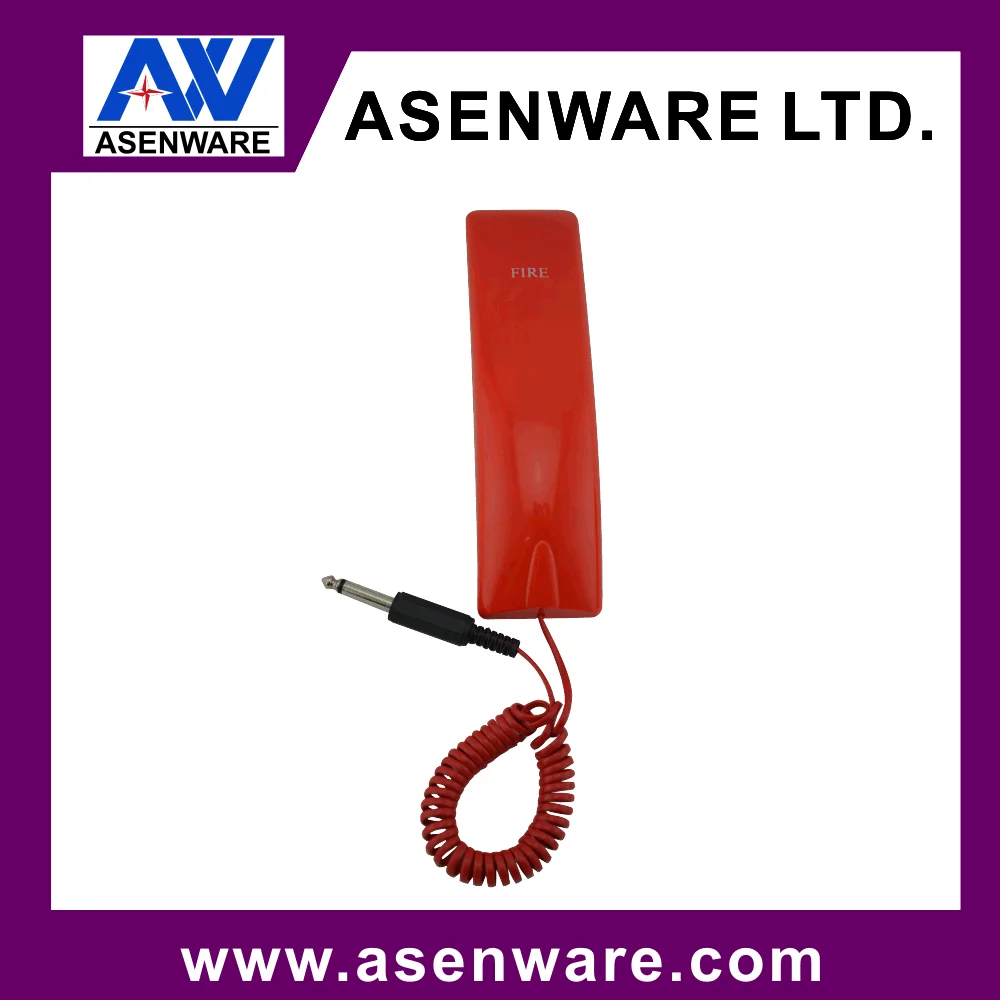

Fire Telephone Mobile Hanset
* Mobile hanset compatible with fire telephone jacks
* Operating Voltage: AC220V 50HZ OR DC24V
* Alarm Current: ≤0.5A
* Temperature Range:0℃~+40℃
* Dimension:: Size: 75*45*20mm
* Crosstalk Level: ≤-60dB;
* Sending Allowance: ≤5dB;
* Dimension: 209mm * 60mm * 45mm;
* Gross Weight: 150g.
automatic fire extinguishing system
* Over 10 years" experience.
* Prompt response.
* OEM & ODM is available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
automatic fire extinguisher
* Is Asenware Company a factory ?
Yes, we have Factory in Zhongshan, Office in Shenzhen, Headquarter in London.
* What is our payment term ?
T/T; L/C; Western union.
* How long is the delivery time ?
Usually about 2 to 7 days. Mass production about 3 weeks.
* Do we have technical support ?
Yes, we have a professional engineering team.
* How to assure the quality ?
Firstly, all of our materials and components pass the serious China Quality Standard and Control.
Secondly, all of our finished products should pass Asenware Quality Check System before export.
Thirdly, our products can be provided to test and cetify by Authories according to customer"s special need.
* Do we have warranty ?
Yes, One year or more depends.
* Sample for testing ?
Yes, Stock sample or Customized sample is available.
* Procedure to Purchase our products ?
Inquiry --- Offer --- Dicssion --- Confirmation --- Order --- Deposit --- Production --- Payment --- Shipment --- Arrival --- Finished --- Feedback --- Repeat Order.
* The ways to contact us ?
Offical web "asenware.en.alibaba.com"; Domestic and Abroad Exhibitions; Factory Tour; Email & Phone etc.
