Linear heat detector

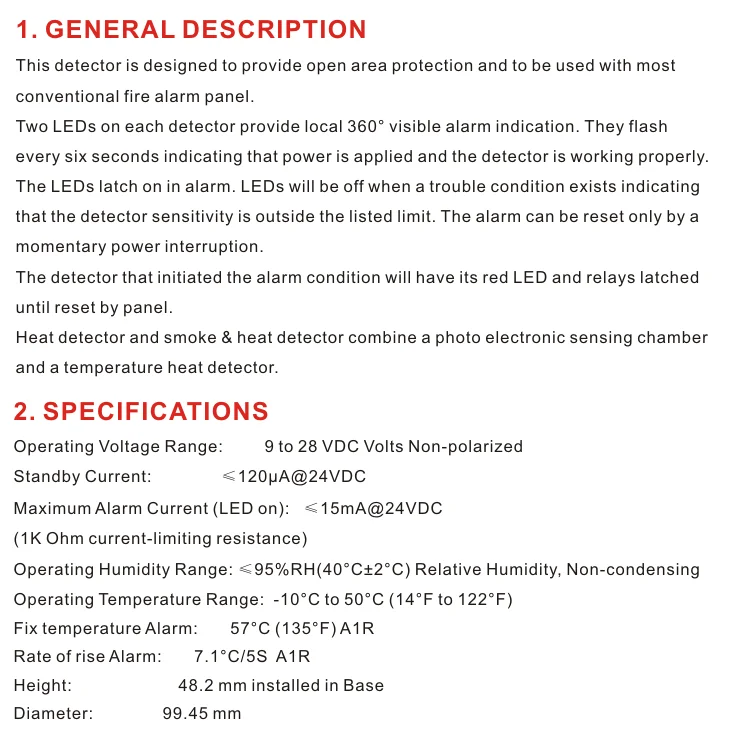

Descrition:
1. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
2.Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption. The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
3.Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector. .
Parameters:
| 1. Operating Voltage: DC9V~28V |
| 2. Standby Current:≤18mA@DC24V |
| 3. Alarm Current:≤20mA@DC24V |
| 4. Alarm Indicate: Red LED on |
| 5. Temperature Range: -10℃~+50℃ |
| 6. Humidity Range: 0%~95%RH (No Condensation) |
| 7. Alarm Output: Remote LED |
| 8. Value of detector threshold:≥150PPM |
Shows:
1.Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
2.Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service.
3.In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Packing:
Standard export packing including:
1.Plastic
2.Cartons
3.Pallets or plywood case for sea shipping
