4 Zone Conventional Fire Alarm Control Panel
Features Of Conventional Fire Alarm Detection System Control Panel:
1. AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
2. It is modularized design, the panel can extend from 1 zone to 32 zones easily.
3. It has 2 level control mode by a lock,
4. It has FIRE and FAULT signal output.
5. It has 2 general sounders output.
6. Each zone has 1 circuit detectors input .
7. Each zone can be disable by a button.
8. It has RESET button to reset the panel.
9. It has SILENCE button to stop BUZZER and SOUNDERS.
10. It has EVACUATE button to start a manual fire alarm immediately.
11. It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
12. It has an optional GSM module for fire alarm by SMS .
13. It is economic, user-friendly and easy maintenance.
Specification Of Conventional Fire Alarm Detection System Control Panel:
| ITEM | 1 Zone panel | 2 Zone panel | 4-8 Zone panel | 4-32 Zone panel |
| Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-16 | AW-CFP2166-04-32 |
| Power specification | ||||
| Mains supply voltage | 110VAC or 240VAC | |||
| Internal power supply | 27.2VDC | |||
| Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
| Batteries (Default Configuration) | 12V2AH*2=24VDC in Total | |||
| End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| Size and weight | ||||
| Dimensions(mm) | 272*200*70mm | 320*231*90mm | 395*502*124mm | 362*565*124mm |
| Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
| Weight (with batteries) | 5.8kg | 6.8kg | 9.6kg | 12.5kg |
Model | Conventional Fire Alarm Control Panel AW-CFP2166 (1-32 Zones) |
Matched Detector&Accessories | Conventional Smoke Detector/Heat Detector/Manual Call Point Fire alarm bell/Strobe horn/Flash light |
Working Environment | industrial and civil buildingsrestaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms, |
Benefits | wiring your building into different zones, economical |

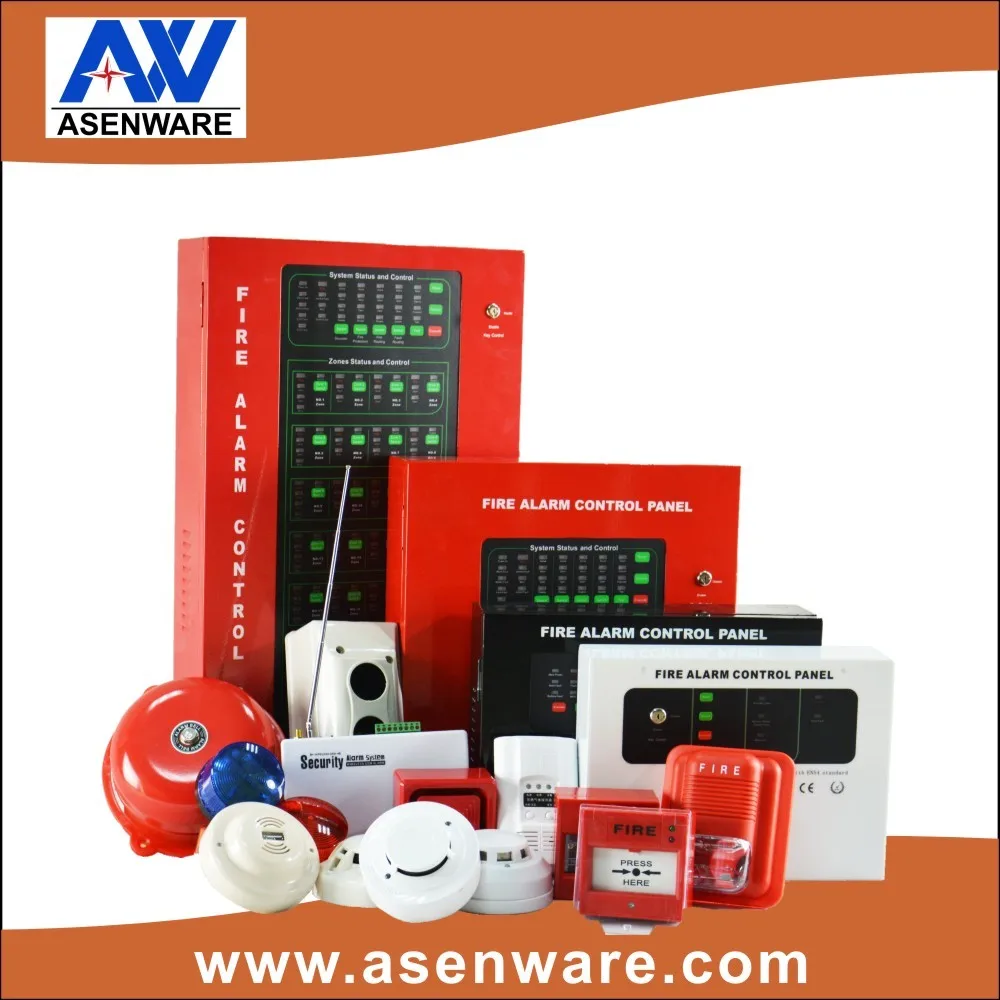

Photos of Conventional Fire Alarm Detection System Control Panel:
(1 Zone Conventional Fire Alarm Control Panel)
(2 Zone Conventional Fire Alarm Control Panel)
(4-8 Zone Conventional Fire Alarm Control Panel)
(4-32 Zone Conventional Fire Alarm Control Panel)
Related Products of Conventional Fire Alarm Detection System Control Panel:
1.AW-CFP2166:1-32 Zones Conventional Fire Alarm Control Panel
2.AW-CSD811:Conventional Fire Alarm Photoelectric Smoke Detector
3.AW-CTD821:Conventional Fire Alarm Heat Detector
4.AW-CSH831:Conventional Fire Alarm Smoke & Heat Combined Detector
5.AW-CMC2166:Conventional Fire Alarm Manual Call Point
6.AW-CSS2166:Conventional Fire Alarm Strobe Sounder
7.AW-FD602-UV:Conventional Fire AlarmUV Flame Detector
8.AW-BK901:Conventional Fire Alarm Beam Smoke Detector
...
