Addressable Fire Pump Control Panel 1 loop/2Loop/4Loop

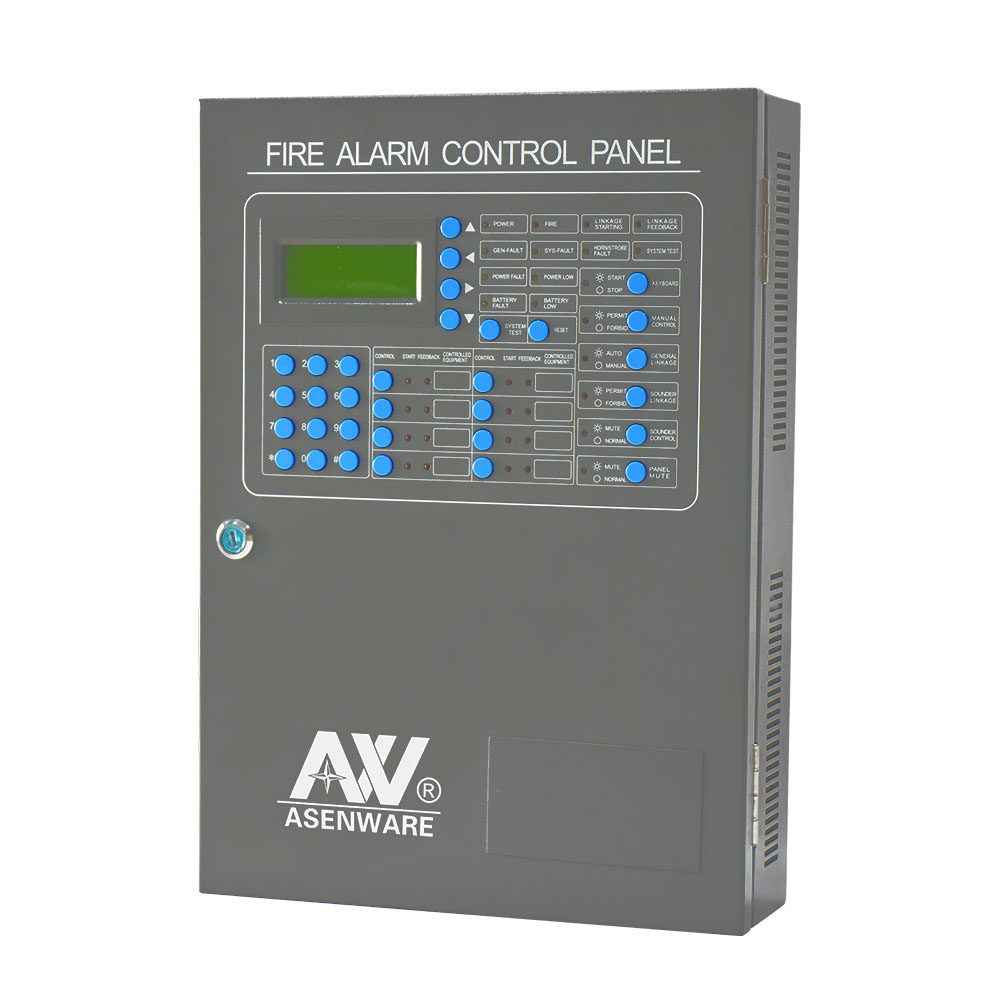

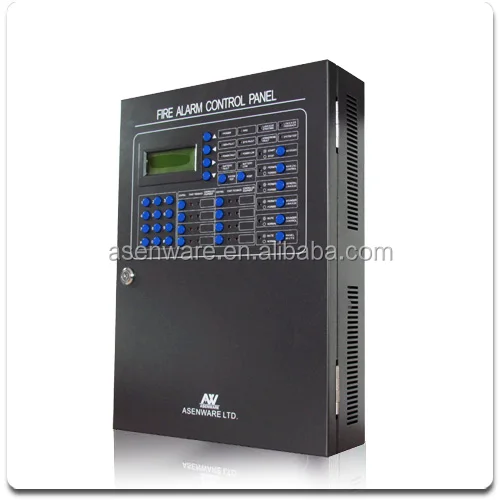

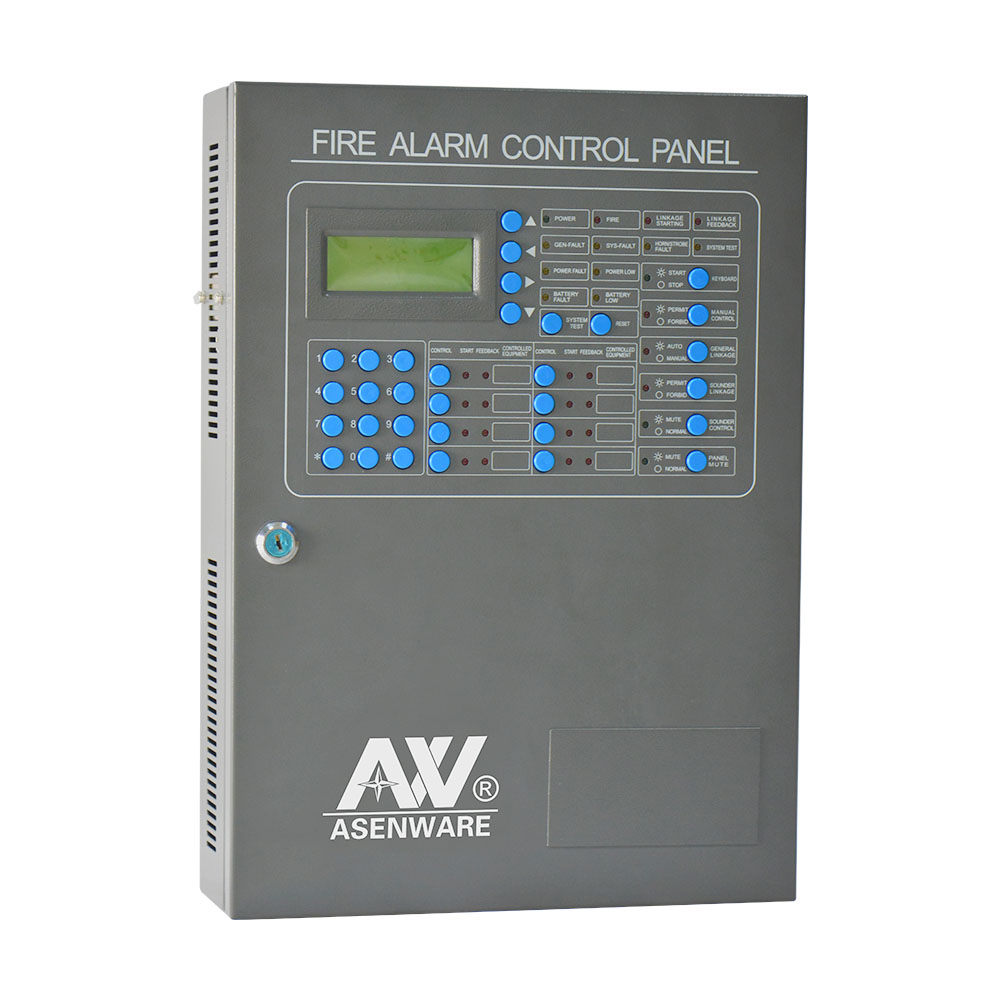

The AW-AFP2188 fire alarm detection system is type of analog fire alarm control panel which has 324 alarm control points (detectors and modules which are characterized by fully mixed coding, non-polarity and two buses). It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006).
1. Fire alarm control panel uses an AC-DC master-standby power supply system which will automatically change between the master and standby power supplies in the event of a power failure of either of the two power supplies to ensure uninterrupted operation of the system.
2. The AW-AFP2188 can be connected to a special mini-printer to realize real-time printing. The AW-AFP2188 can be connected to floor fire display panels to display fire alarms by standard RS-485
3. The AW-AFP2188 fire alarm control panel can be connected to ten multi-line linkage control/monitoring points to control and monitor important equipment.
working condition parameters fire alarm detection system for building safety
 | Temperature | -10°C~+50°C |
| Humidity | ≤95% | |
| Power supply | AC 220V 50HZ DC 24V 6A | |
| Output contact capacity | AC 220V 1A DC 27.6V 3A | |
| DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series | |
| AC input voltage | AC 220V±20% 50Hz | |
| AW-AFP2188 system capacity | 100/200/324 points (non-polarity, two wire bus, fully mixed coding) |
Analog addressable gsm fire alarm system | ||
| Length | ≤1500m |
AC input voltage | AC 220V±20% 50Hz | |
AC input power | 120w | |
DC power | DC24V 5.0AH | |

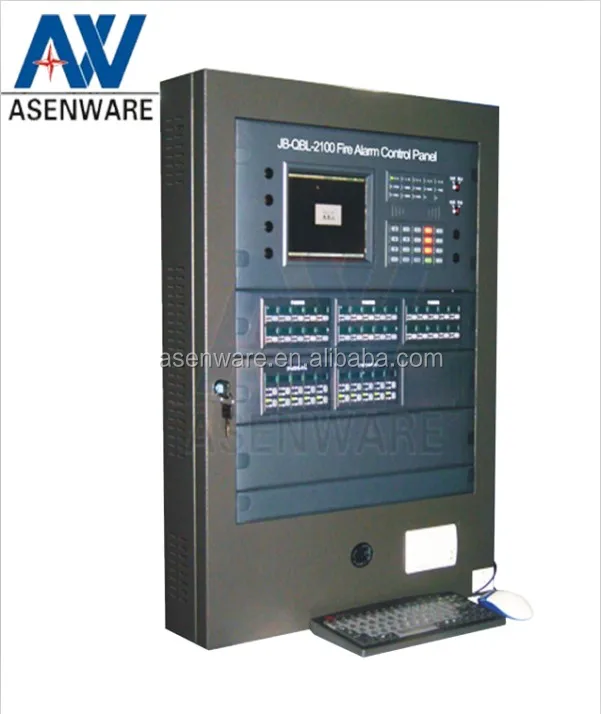

AW-AFP2100 system capacity
| 648 points .biggest capacity is 1992 points with three loop cards | |
System working conditions | 1. Temperature: -10°C~+50°C 2.Humidity: ≤95% 3.Power supply: AC 220V 50HZ DC 24V 6A 4.Output contact capacity: AC 220V 1A DC 27.6V 3A | |
fire alarm detection system 3
1.Free training for fire alarm system operation
2.Free desgn for building project before sales
3.Free techncial support after sales in installation
4.1 year warranty and life long maintance
1.all package can sent by FedEx/DHL/UPS/EMS, based on customer requires.
2. Freight By Sea to Any nearnest port of customer country.
3.Freight by Air to airport of import country.
