Fix temperature addressable heat detector tester
General Description of AW-ATD2188 Addressable Fire Alarm Heat Detector:
Addressable heat detector is a mated product of the 2188 series fire alarm control panels.It uses a two-bus work mode. With an internal microprocessor, it supports electronic coding.The heat detector realizes real-time acquisition of the in situ smoke concentration data and sends back the data to a fire alarm control panel.It can also receive and execute the control commands given by a fire alarm control panel.
Specification of AW-ATD2188 Addressable Fire Alarm Heat Detector:
| Addressable Heat Detector | |
| Brand | ASENWARE |
| Model No | AW-ATD2188 |
| Executive standard | GB4716-2005 |
| Operating Voltage | 24V (Pulse Modulation) |
| Wiring Method | Non-polarity two-bus addressable system (L1,L2) |
| Opearing Current | <300 μA (Monitoring Status); or <1.5 mA (Alarm Status) |
| Operating Environment | Indoor |
| Temperature | -10℃ to +50℃ |
| Relative Humidity | ≤95% (40℃±2℃, without condensation) |
| Protection Area | ≤60 sq.m |
| Installation Height | ≤12m |
| Coding mode | It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection. |
| Work indication | The red indicator will blink in the monitoring status or remain lit in the alarm status. |
| Size ( With Base) | Diameter:100mm; Height: 56mm |
| Weight | About 47g |
| Shell Material | Hard Plastics |
| Shell Color | White or customized |
| Service | ODM, OEM is available |
| Applicable Places | School;Factory;Office;Dormitory;Hospital;Super Market etc |
Feature of AW-ATD2188 Addressable Fire Alarm Heat Detector:
*The heat detector can realize electronic coding and rewrite the address via coder in situ within a single-chip microcomputer,
*The heat detector have a temperature compensation function and a sensor fault detection function (fault reporting to fire alarm control panel).
*Non-polarity, two-bus connection that ensures convenient installation and maintenance.
*Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.

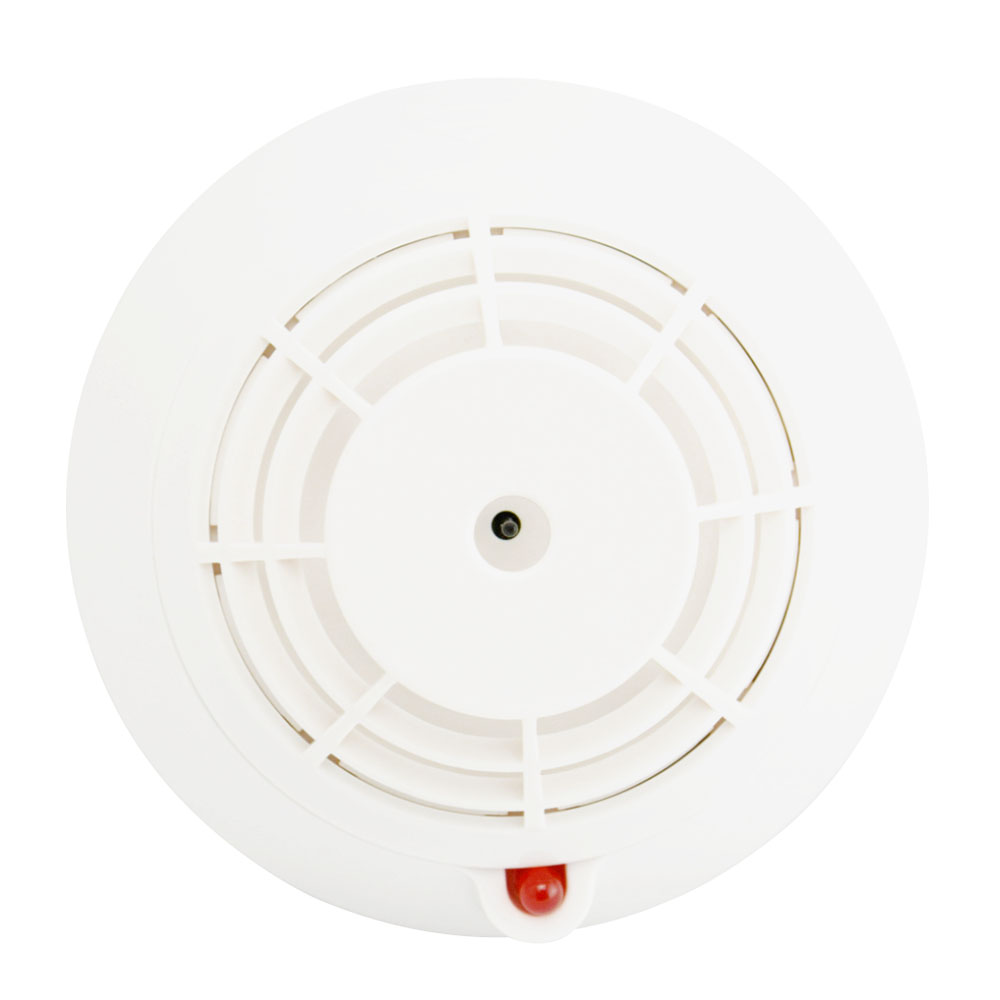

Photo of AW-ATD2188 Addressable Fire Alarm Heat Detector:
Related Product of AW-ATD2188 Addressable Fire Alarm Heat Detector:
1.AW-AFP2100:2-lops addressable fire alarm confrol panel
2.AW-AFP2188:Single loop addressable fire alarm confrol panel
3.AW-ASD2188:Addressable photoelectric smoke detector
4.AW-ATD2188:Addressable fixed temperature heat detector
5.AW-ASH2188:Addressable smoke and heat combined detector
6.AW-AMC2188:Addressable manual call point
7.AW-ASS2188:Addressable hooter/horn
8.AW-AIO2188-IN:Addressable input module
9.AW-AIO2188-OUT:Addressable out module
10.AW-CODERF2188:Coder for setting address
11.AW-RP2188: Repeater
...
Packing:Regular packing or customized packing
Shipping:DHL,UPS,EMS,TNT,Fedex Express,etc
1.Sample oder is welcomed to test the quality.
2.OEM,ODM service
3.One year warranty and warm afterservice
4.Welcome visit our factory.
