Fire Alarm Sounder With 8 Kinds of Alarm Sounds
Description of AW-CSS2166-4 Conventional Fire Alarm Strobe Sounder
This model is a conventional type fire alarm use combined sounder and flasher.Operating voltage is DC 12V to DC 30V,the alarm sounder have 8 kinds of alarm sounds.the sounder level can adjust form 95dB to 115dB and the flashing period about 120 times per minute.It"s an automatic fire alarm system output devices,mainly through the alarm will sound and flash signal.it will send out warning sound and flashing to notify people in the event of a fire.
Specification of AW-CSS2166-4 Conventional Fire Alarm Strobe Sounder
| Conventional Fire Alarm Strobe Sounder/Flash Sounder | |
Model No. | AW-CSS2166-4 |
Operating Voltage | DC12V~30V |
| Working Current | ≤35mA |
| Flash Period | ≤120 times/min |
| Temperature Range | -10℃ ~ +50℃ |
| Humidity Range | 0%~95%RH |
| Sound Pressure Level | 95- 115 dB (Adjustable) |
| Life of Flash Light | N/A |
| Type of Sound Alarm | 8 kinds |
| Size | 122*128*100mm |
| Weight | 160g |

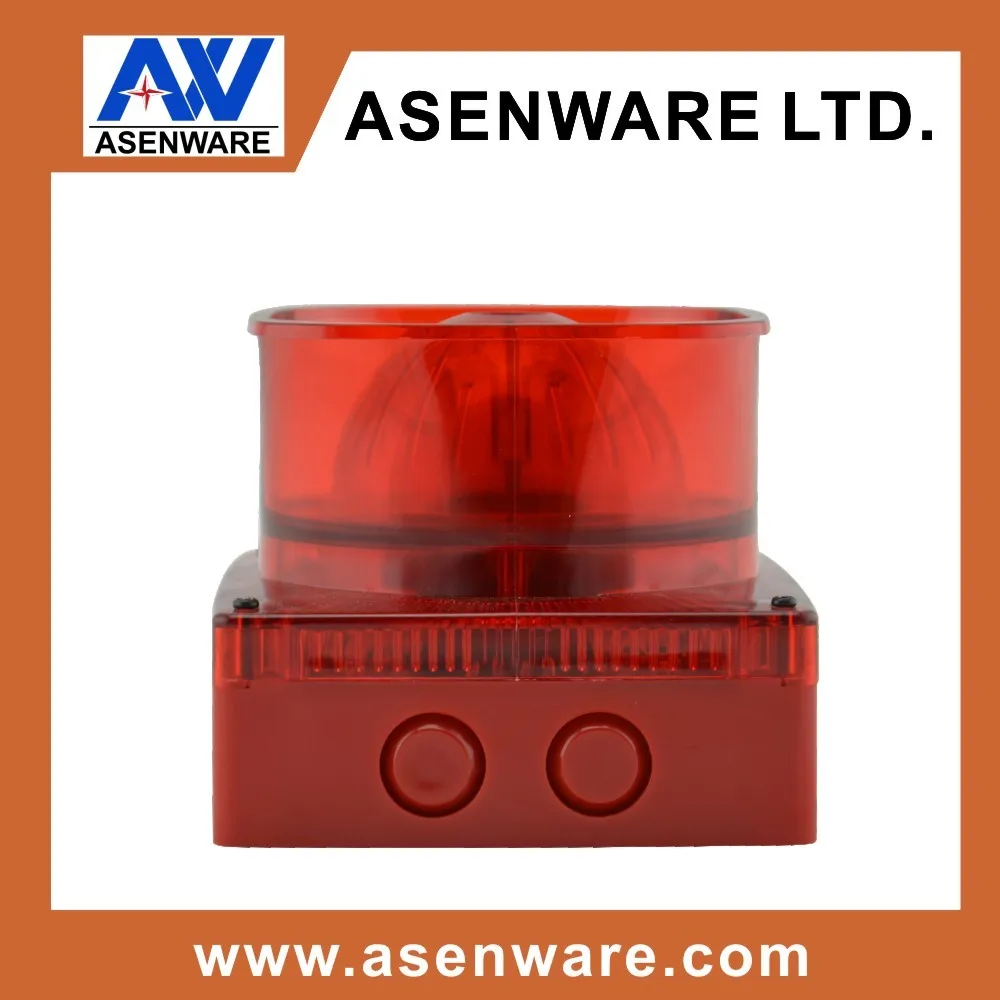

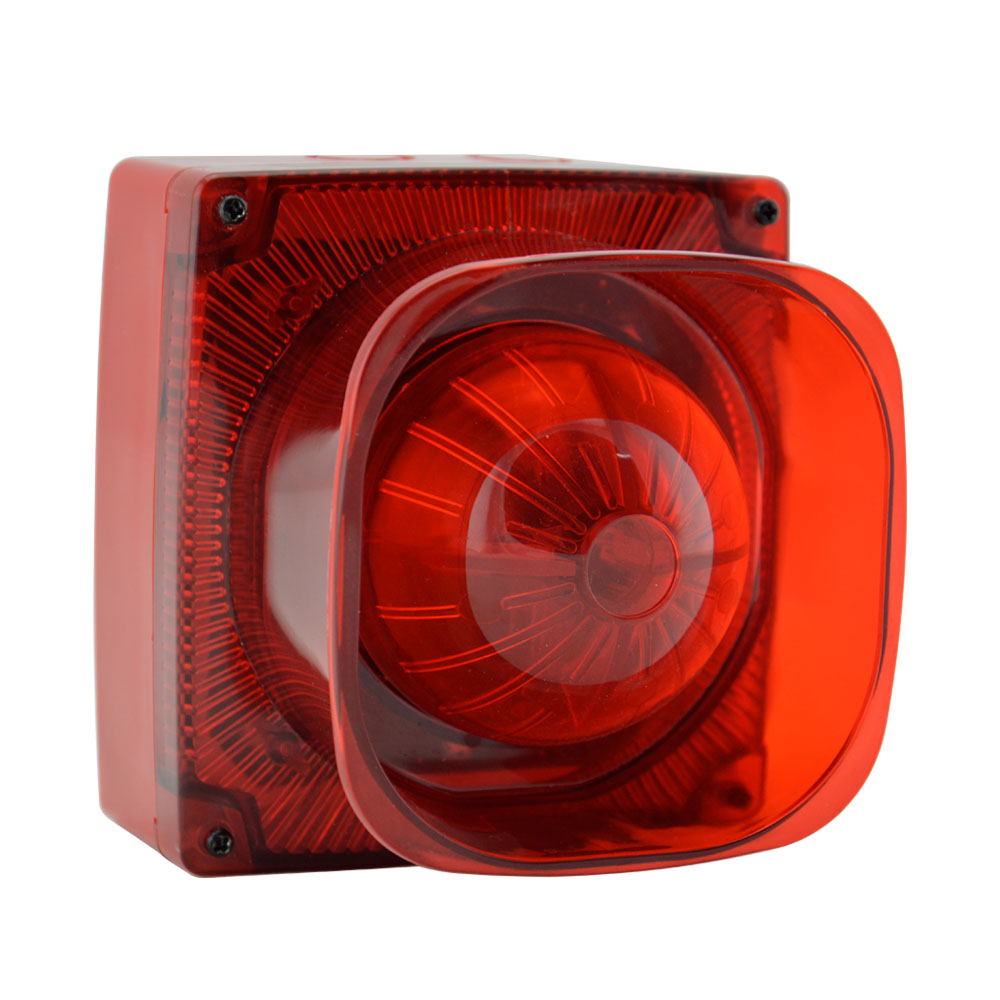

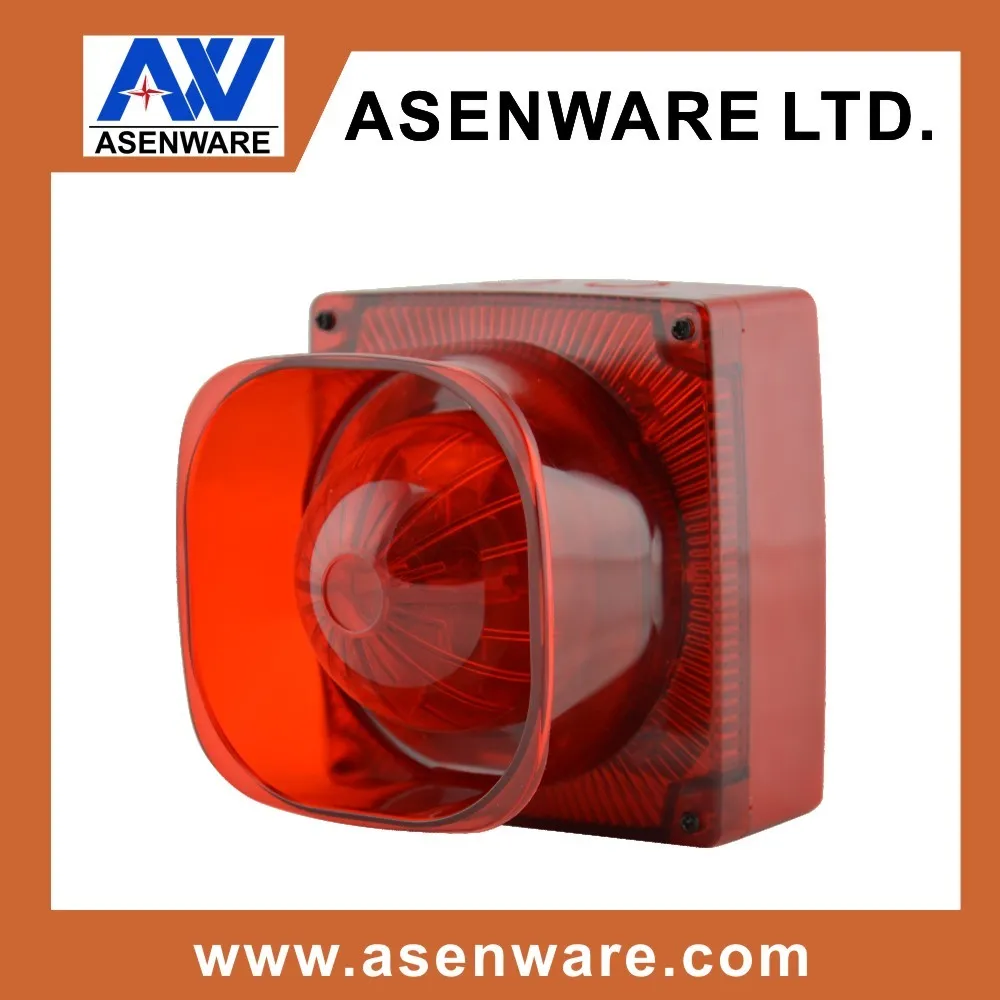

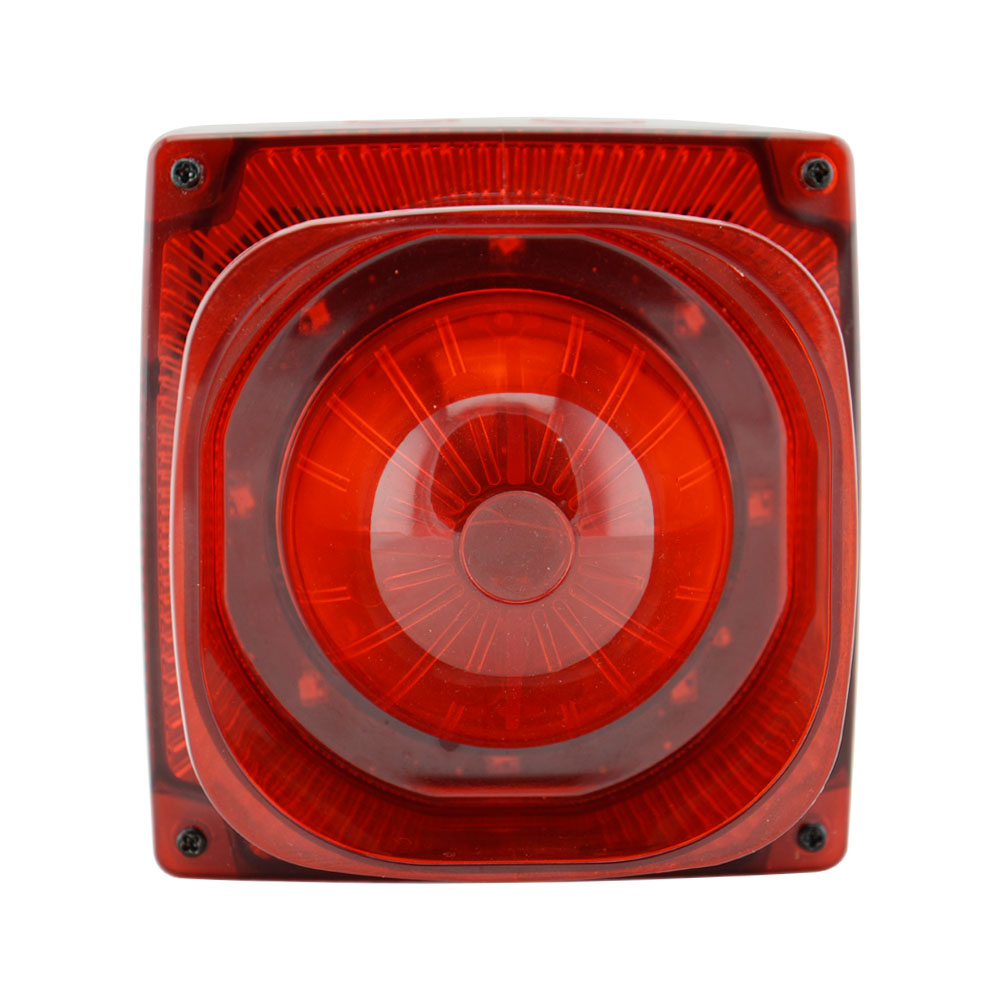

Photo of AW-CSS2166-4 Conventional Fire Alarm Strobe Sounder
Related Products of AW-CSS2166-4 Conventional Fire Alarm Strobe Sounder
Indoor Fire Alarm Strobe Sounder
Outdoor Fire Alarm Strobe Sounder
Explosion-proof Fire Alarm Strobe Sounder
1.AW-CFP2166:1-32 Zone Conventional Fire Alarm Control Panel
2.AW-CSD411-2/4W:Conventional photoelectric smoke detector
3.AW-CSD501-2/4W:Conventional photoelectric smoke detector
4.AW-CSH202:Conventional smoke and heat combined detector
5.AW-CTD805:Conventional heat detector
6.AW-SSD601:Independent smoke detector
7.AW-SSD701:Independent smoke detector
8.AW-FD602-UV:UV flame detector
9.AW-CGD2166:Conventional gas detector
...
