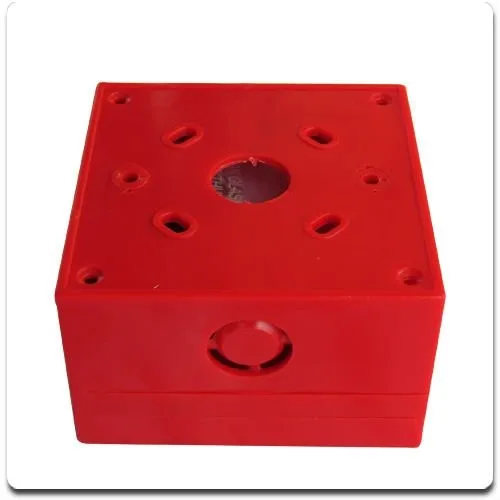

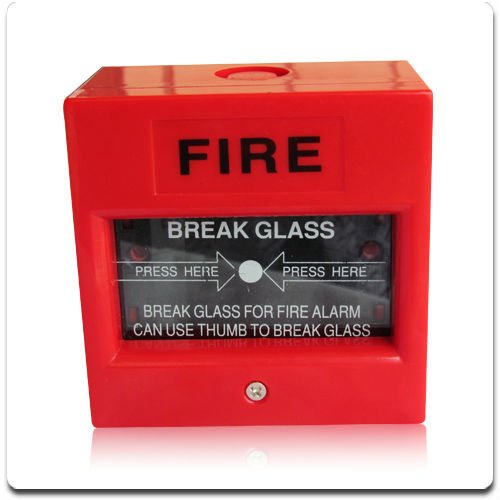

Fire Alarm Emergency Break Glass Manual Alarm Call Point
Description of Conventional Fire Alarm Break Glass Manual Call Point
The AW-CMC2166-1 Manual Call Point is used to manually transmit fire alarm signal,
it provides contact closure to activate emergency equipment, audible and visual signals, and alarm panels.This fire alarm manual call point is generally installed in staircase, hallway, evacuation passage or places where people haunt.
We have the others conventional manual call point which are resettable, "AW-CMC2166-5" and "AW-CMC2166-6".
Specification of Conventional Fire Alarm Break Glass Manual Call Point
| Product Name | Manual Call Point/ Break Glass |
| Model No. | AW-CMC2166-1 |
| Operating Voltage | 220VAC/50Hz or 24 VDC |
| Operating Current | Max.Curren:5A(220VAC/50Hz) or 8A(24VDC) |
| Contactor Resistance | ≤ 0.1 Ω |
| Temperature | -10℃ to 50 ℃ |
| Humidity | 10% to 93%, Non-condensation |
| Feature | Unresettable |
| Color | Red or Customized |
| Weight | 165g |
| Wiring Method | Nonpolar two-bus system |
| Operating enviroment | Indoor |
| Applicable Places | School;Factory;Office;Dormitory;Super Market etc. |
Photos of Conventional Fire Alarm Break Glass Manual Call Point

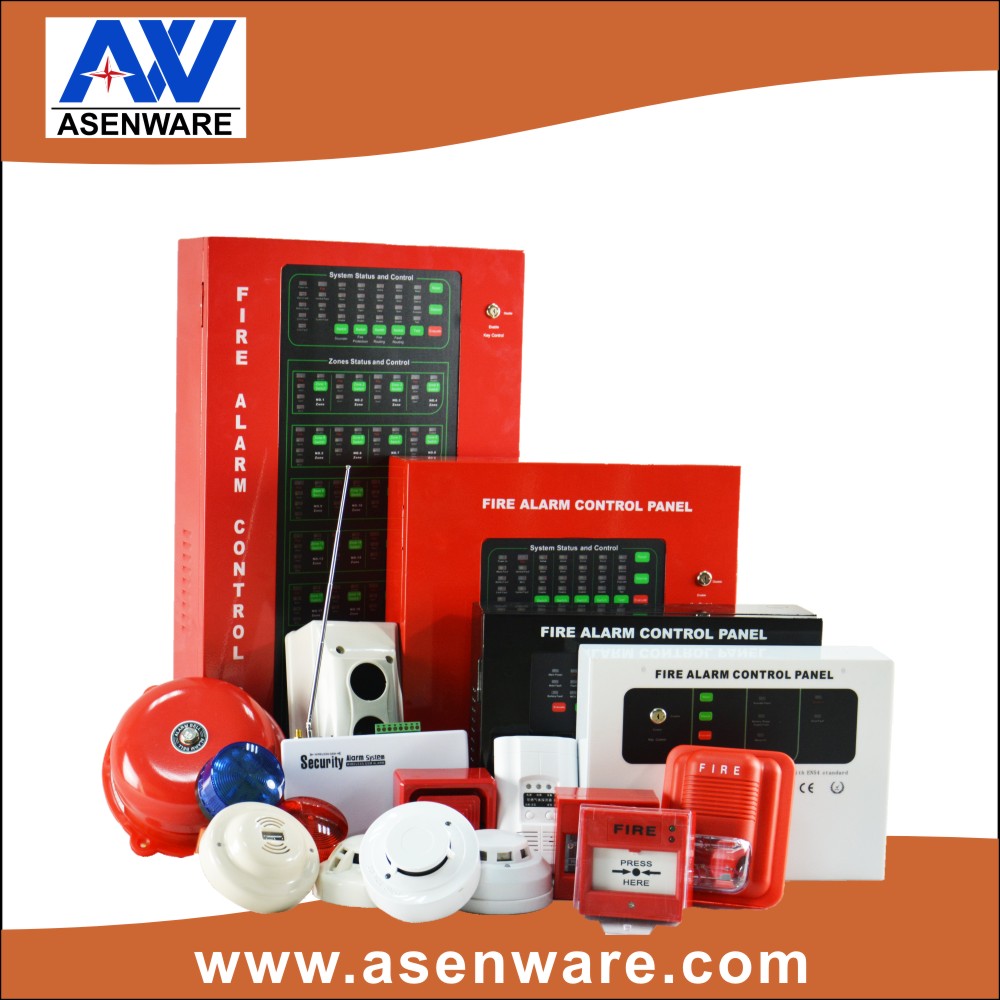

Related Products of Conventional Fire Alarm Break Glass Manual Call Point
1.AW-CFP2166:1-32 Zone Conventional Fire Alarm Control Panel
2.AW-CSD411-2/4W:Conventional photoelectric smoke detector
3.AW-CSD501-2/4W:Conventional photoelectric smoke detector
4.AW-CSH202:Conventional smoke and heat combined detector
5.AW-CTD805:Conventional heat detector
6.AW-SSD601:Independent smoke detector
7.AW-SSD701:Independent smoke detector
8.AW-FD602-UV:UV flame detector
9.AW-CGD2166:Conventional gas detector
...
