UV IR2 Flame Detector
Specifications of AW-FD703E-UVIR2 Conventional Flame Detector
| Item | Specification |
| Implementation of standards | *GB15631-2008 "special fire detectors" *GB3836.1-2000 "explosive gas environment with electrical equipment" on 1: Common technology to begging *GB3836.2-2000 "explosive gas environment with electrical equipment" on 2 parts: flameproof "D" |
| Sensor | Career Exploration AE-S708 / 4 and AE-S708 / 5 pyroelectric infrared sensor |
| Optical window | Sapphire (Al2O3) |
| Case | *Material: Aluminum *Molding process: Die Casting *Coating process: electrostatic powder coating surface, inside metal passivation. |
| Weight | ≤1kg |
| Explosion prevention and protection | *Explosion: EXd ⅡCT6 *Protection: IP66 |
Features of AW-FD703E-UVIR2 Conventional Flame Detector
*Built-in high speed, low power consumption, high performance 16-bit high-precision data processing chip.
*Using patent narrow-band IR sensor and solar blind UV sensor.
*The improvement of the algorithm improvesthe ability of flame detection and false alarm.
*Explosion-proof design is suitable for the hazardous locations of industrial site.
*Multistage sensitivity for more occasions.
*Can detect small fire much earlier.
*Low maintenance cost, easy to update and improvement.
*Detection Angle of 120 degrees.
*Detection range up to 60 meters(AW-FD702E-IR2).
*Suitable for heavy industrial applications.
*Detector is suitable for a variety of fuel.

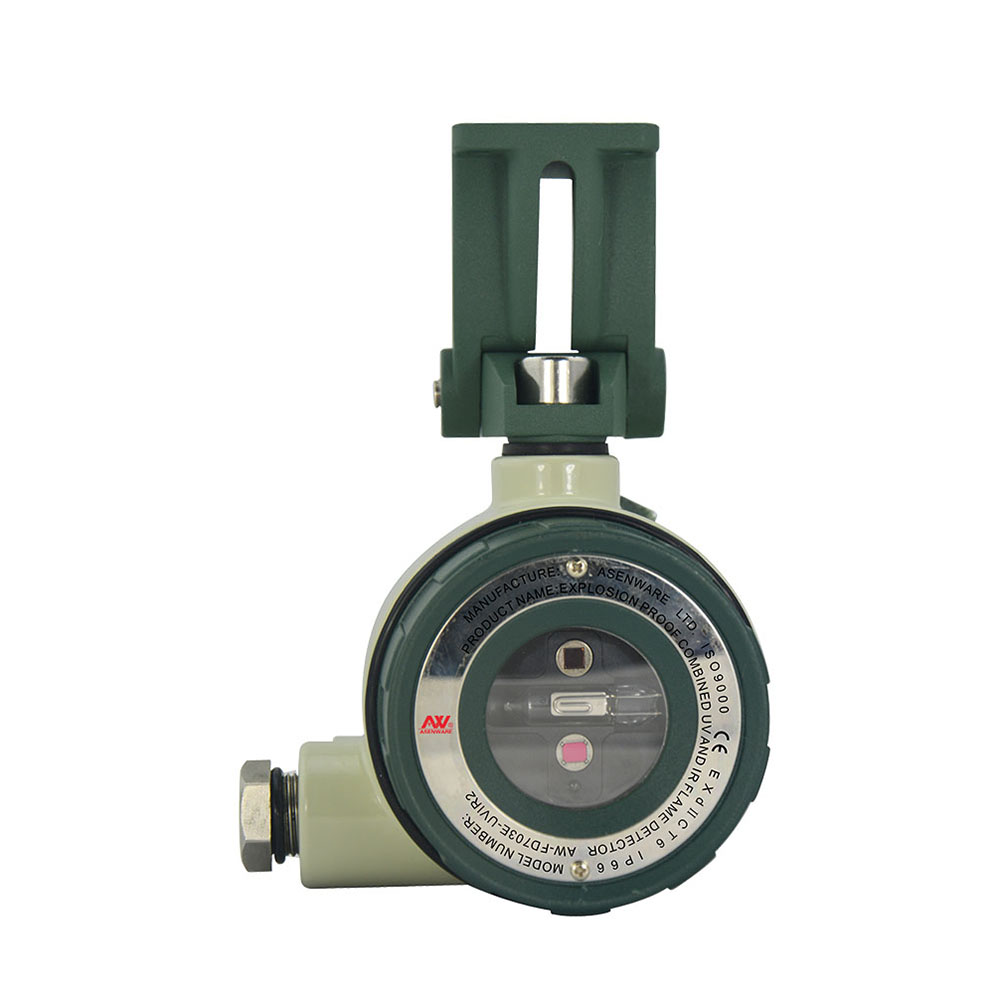

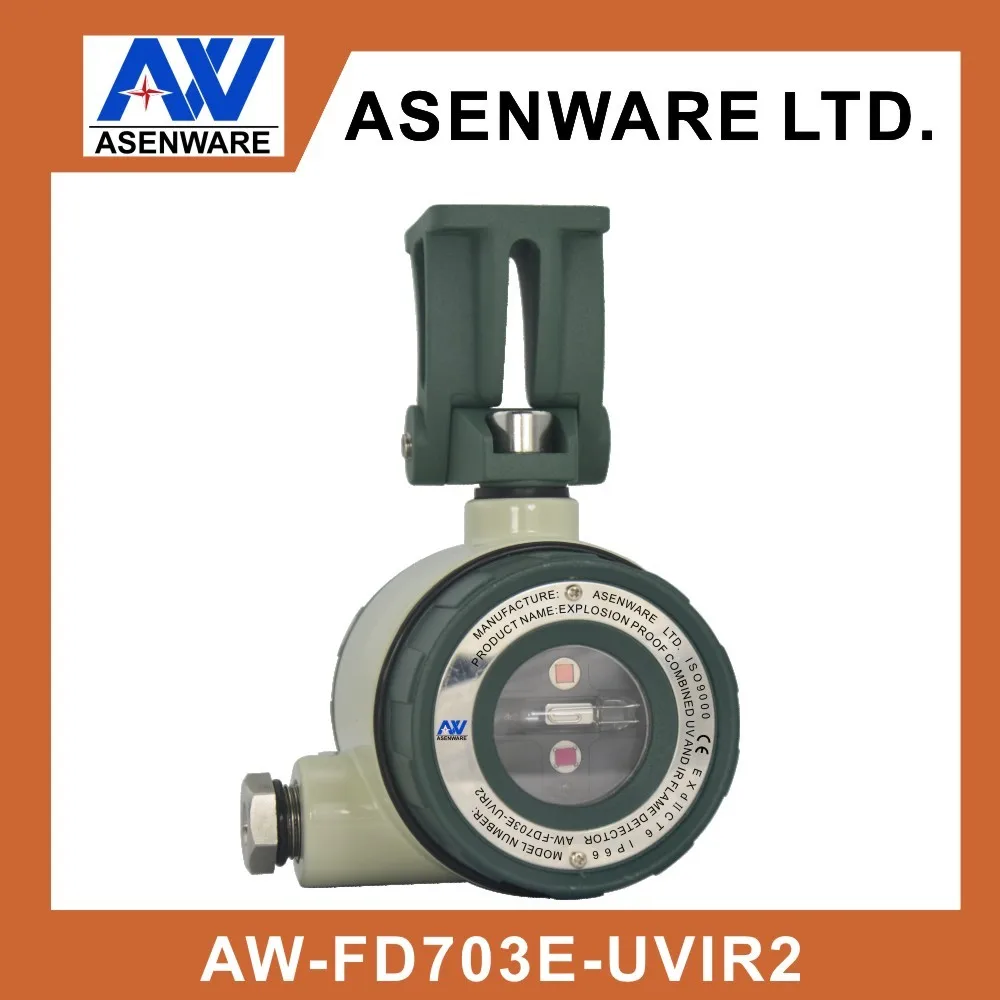

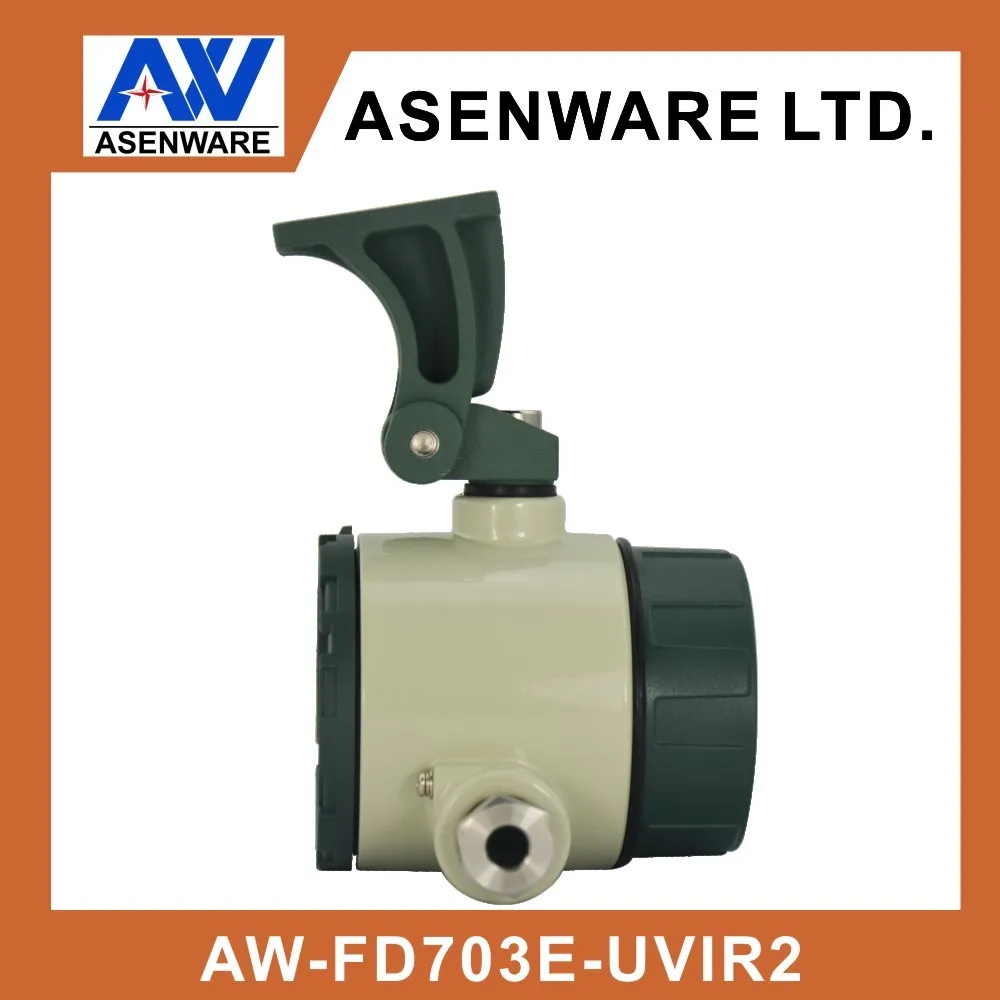

Photos of AW-FD703E-UVIR2 Conventional Flame Detector
Related Products of AW-FD703E-UVIR2 Conventional Flame Detector
1.AWCFP2166 1-32 Zone Conventional Fire Alarm Control Panel
2.AW-CSD411-2/4W:Conventional photoelectric smoke detector
3.AW-CSD501-2/4W:Conventional photoelectric smoke detector
4.AW-CSH202:Conventional smoke and heat combined detector
5.AW-FD602-UV:UV flame detector
6.AW-FD701E-UV:Explosion-proof UV flame detector
7.AW-FD702E-IR2:Explosion-proof IR2 flame detector
8.AW-FD703E-UVIR2:Explosion-proof UV and IR2 combined flame detector
9.AW-CGD2166:Conventional gas detector
...
Packing:Regular packing or customized packing
Shipping:DHL,UPS,EMS,TNT,Fedex Express,etc
1.Sample oder is welcomed to test the quality.
2.OEM,ODM service
3.One year warranty and warm afterservice
4.Welcome visit our factory.
Asenware explosion-proof series flame detector provides a new generation of flame detection capability and technical standards, the flame detectors using a specially designed narrow-band IR sensor pieces and solar blind type UV sensor pieces, through the built-in 16-bit microprocessor and patent signal processing algorithms, the flame detectors can distinguish more effectively between the real flame radiation and interference sources. Also significantly reduce the effects of environmental factors on the detectors. The flame detectors can be set up 5 sensitivity level, can meet the different needs of more occasions.
Asenware explosion-proof flame detector series is on the basis of original flame detector,through the market research and collect customer feedback information, and a lot of experimental data, the flame detector’s hardware circuit and software algorithm are improved.
