FM200 Cylinder for HFC-227EA Fire Suppression system
General Description of FM200 Gas Fire Extinguishing Fire Suppression System
Manual/Automatic Extinguishing System FM200 is an engineered system utilizing a fixed nozzle agent distribution network. The system is designed and installed in accordance with the National Fire Protection Association (NFPA) Standard 2001, "Clean Agent Fire Extinguishing Systems." When properly designed, the FM-200 system will suppress surface burning fire in Class A, B, and C hazards.
The clean agent fire extinguishing system shall perform as outlined in the following sub-sections.
A. Achieve a 6.25% (v/v) extinguishing concentration for Class A (Surface Type Fires) hazards.
B. Achieve a 8.70% (v/v) or greater, as required, extinguishing concentration for Class B (Flammable Liquids) hazards.
C. Achieve a 7.00% (v/v) extinguishing concentration for Class C (Energized Electrical Equipment) hazards.
D. Within 10 seconds, the clean agent fire extinguishing system shall discharge 95% of the required suppression agent mass.
E. The clean agent fire extinguishing system shall consist of one or more Asenware Fire Systems agent cylinders and related equipment. The cylinders may be either connected to a discharge pipe arrangement separately or connected to a common manifold and discharge pipe arrangement. The agent cylinders shall be filled with FM-200, and super pressurized with dry nitrogen to a working pressure of 360 PSIG at 70°F (24.8 bar gauge at 21°C).
Specification of FM200 Gas Fire Extinguishing Fire Suppression System

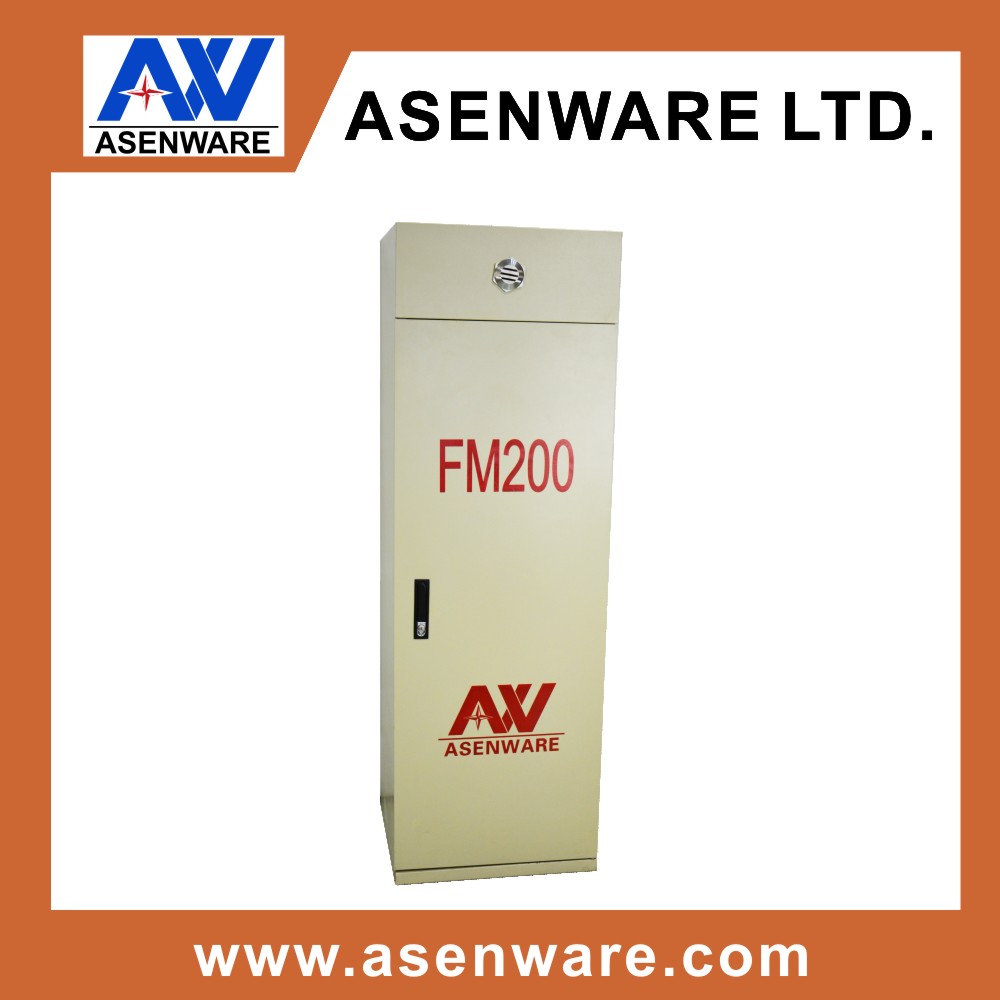

Type | Cabinet Type | N2 Driving Pipe Network Type |
Filling Pressure(20℃) | 2.5MPa | 4.2MPa |
Max. Pressure(50℃) | 4.2MPa | 5.3MPa |
Filling Density(kg/m3) | η≤1120 | η≤950 |
Max.Guarding Area | 500m2 | 800m2 |
Max. Guarding Cubage | 1600m³ | 3600m³ |
Volume(L) | 40,70,100,120,150,180 | |
Power Supply | AC 220V/DC24V,1A | |
Working Temperature | -10℃~55℃ | |
Release Time | ≤10s | |
Start-up method | Automatic, electrical manual, mechanical emergency manual | |
Automatic start-up Delay Time | 0~30s | |
The clean agent fire extinguishing system shall consist of FM-200, agent cylinder(s), actuation hardware and discharge nozzle(s) attached to a pipe network.
Detection System - The ASENWARE Detection System is used where an automatic electronic detection system is required to actuate the FM-200 suppression system. This detection system is used to actuate a single, fixed, fire suppression or alarm system based on inputs received from fire detection devices. The detection circuits can be configured using cross, counting, independent or priority-zone (counting) concepts. The detection system has been tested to the applicable FCC Rules and Regulations for Class A Computing devices.
Pictures of FM200 Gas Fire Extinguishing Fire Suppression System
Related Products of FM200 Gas Fire Extinguishing Fire Suppression System
1.AW-GEC2158:Automatic Gas Extinguisher Control Panel
2.AW-MS215:Maintance Switch
3.AW-MRS2158:Manual Release Station
4.AW-GRS2158:Gas Release Warning Signage
5.AW-CSD811:Conventional Photoelectric Smoke Detector
6.AW-CTD821:Conventional Heat Detector
7.AW-CSH831:Conventional Smoke and Heat Combined Detector
...
