Independent 9V Battery Operated Fire Alarm Photoelectric Smoke Detector
General Description of Standalone/Independent Fire Alarm Photoelectric Smoke Detector
AW-SSD602 is a standalone photoelectric smoke detector,this detector was powered by a build-in 9V battery and no need to connect with the fire alarm control panel.It can also work with the control panel and the voltage is DC 12V.there are 2 leds and flash every 40 seconds indicating that the power is applied and the smoke detector is working properly.
Specifications of Standalone/Independent Fire Alarm Photoelectric Smoke Detector
| Standalone/Independent Photoelectric Smoke Detector | |
| Brand | ASENWARE |
| Model No | AW-SSD602 |
| Executive standard | GB20517-2006 |
| Operating Voltage | DC 12V(Network) or 9V Battery(Independent) |
| Opearing Current | |
| ≤10 μA (Standby); ≤20 mA (Alarm) | |
| Operating Environment | Indoor |
| Temperature | -10℃ to +50℃ |
| Relative Humidity | ≤95% (40℃±2℃, without condensation) |
| Protection Area | >40 sq.m |
| Size | Diameter:105mm; Height: 59mm |
| Weight | About 135g (Including battery) |
| Material | ABS |
| Color | White or customized |
| Service | ODM, OEM is available |
| Applicable Places | School;Factory;Office;Dormitory;Hospital;Super Market etc |
Features of Standalone/Independent Fire Alarm Photoelectric Smoke Detector
* This detector is designed to provide open area protection and no need to connect with control panel.
* Two LEDs on each detector provide local 360° visible alarm indication.
* They flash every 40 seconds indicating that power is applied and the detector is working properly.
* The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit.
* The detector that initiated the alarm condition will have its red LED .

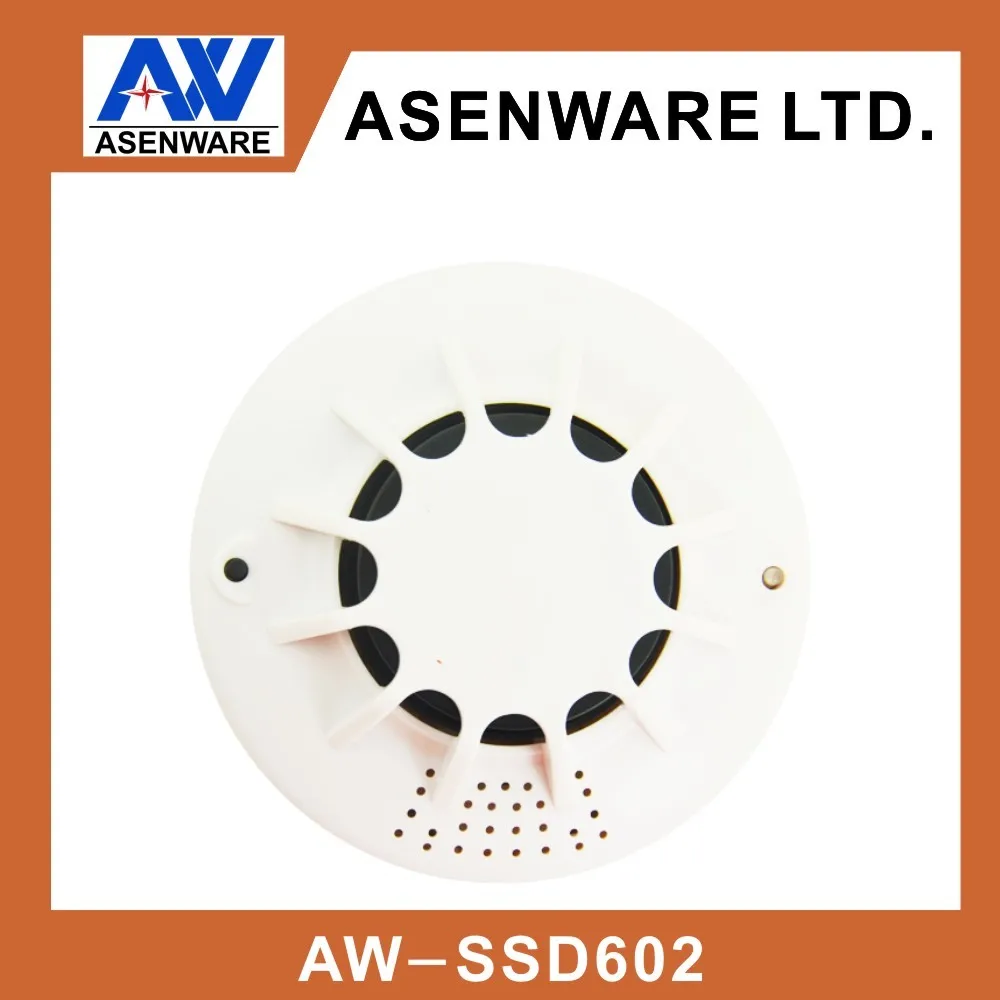

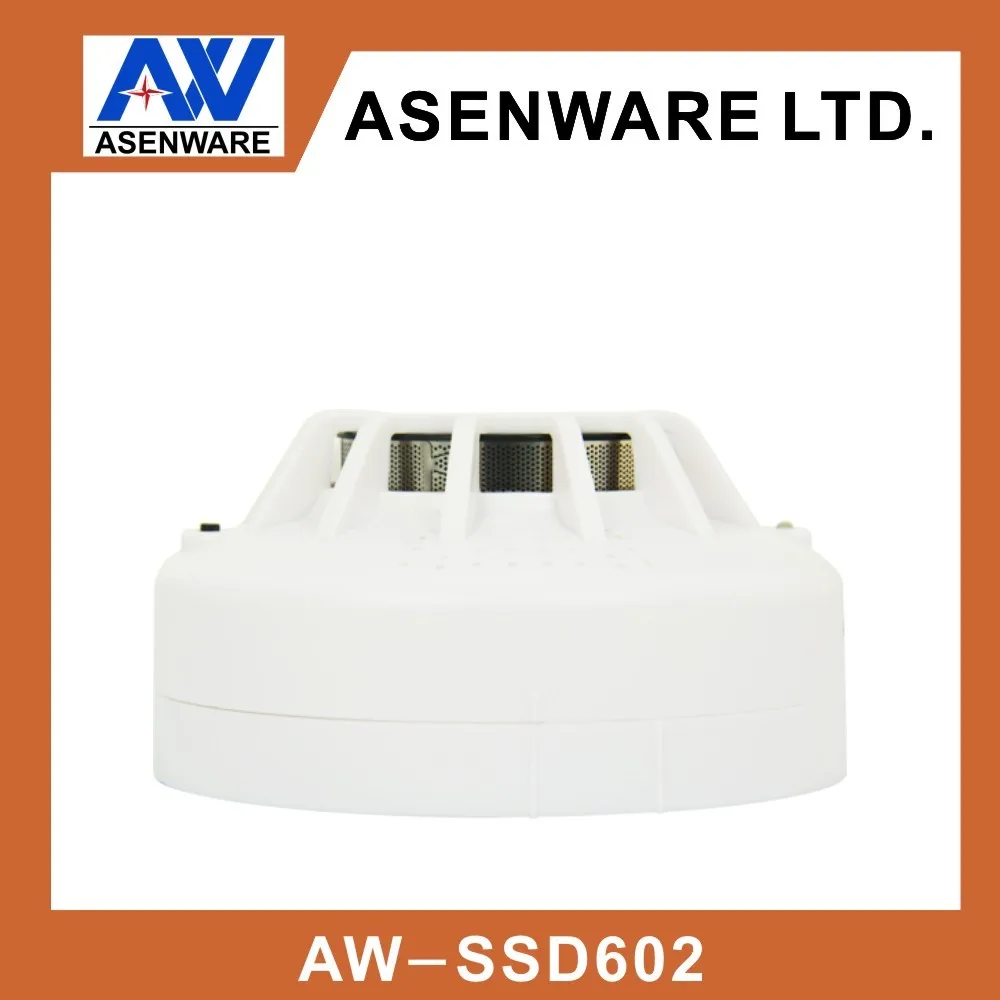

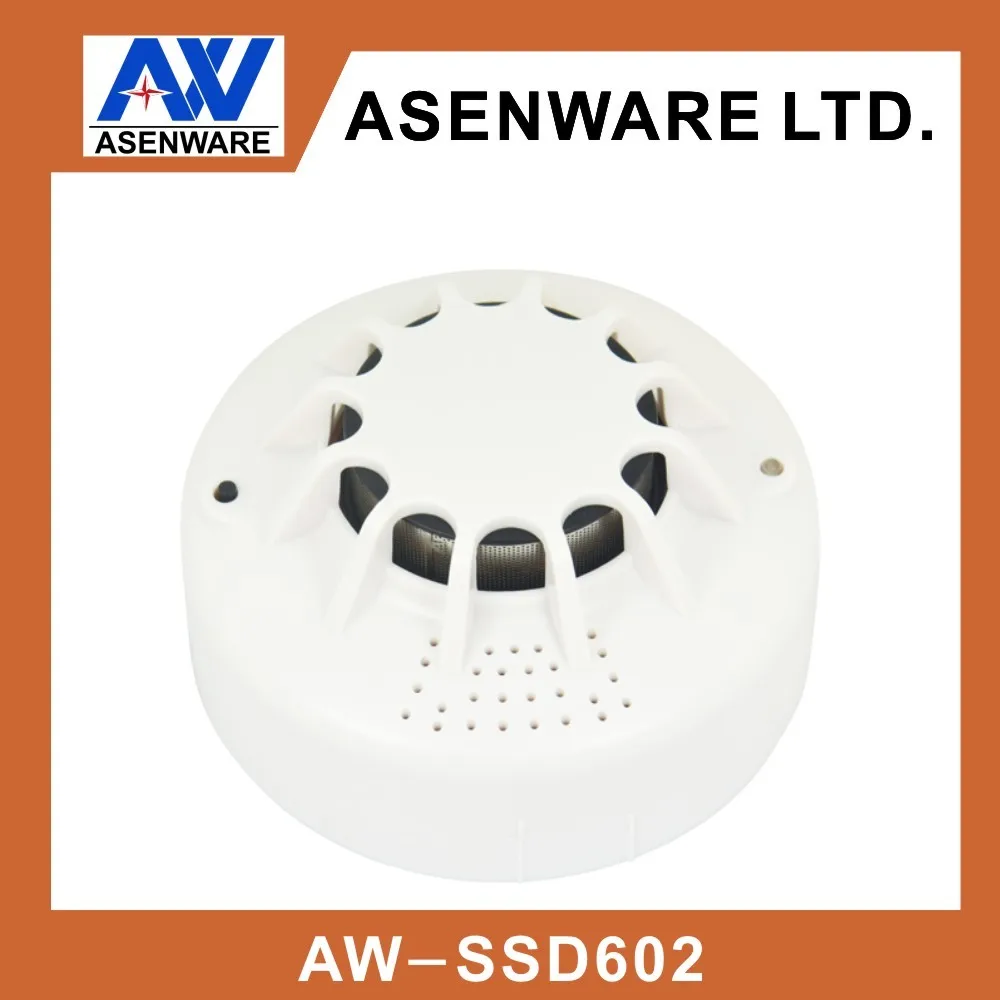

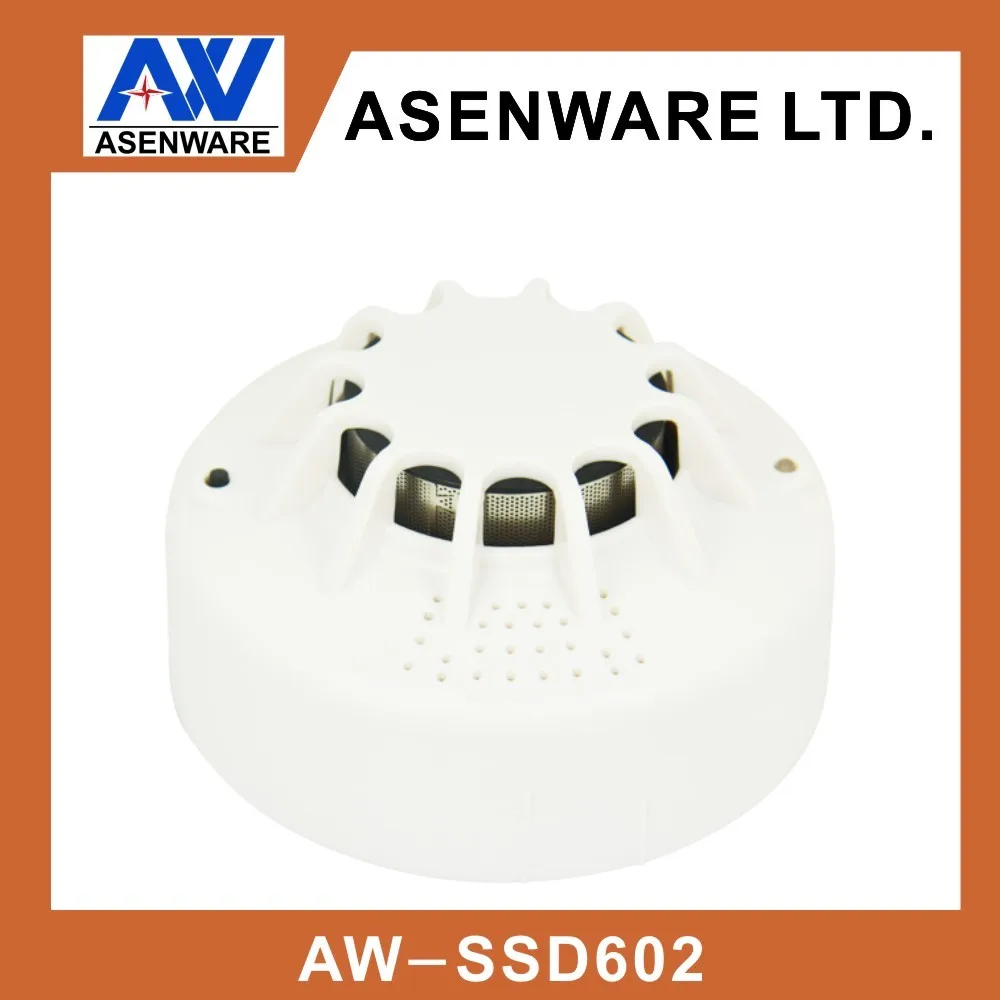

Photos of Standalone/Independent Fire Alarm Photoelectric Smoke Detector
Related Products of Standalone/Independent Fire Alarm Photoelectric Smoke Detector
1.AW-AFP2188:Single loop addressable fire alarm control panel
2.AW-AFP2100:2-loops addressable fire alarm control panel
3.AW-ASD2188:Addressable photoelectric smoke detector
4.AW-ATD2188:Addressable fixed temperature heat detector
5.AW-ASH2188:Addressable smoke and heat combined detector
6.AW-AMC2188:Addressable manual call point
7.AW-ASS2188:Addressable hooter/horn
8.AW-AIO2188-IN:Addressable input module
9.AW-AIO2188-OUT:Addressable out module
10.AW-CODERF2188:Coder for setting address
11.AW-RP2188:Addressable Repeater/Announcer
...
Packing:Regular packing or customized packing
Shipping:DHL,UPS,EMS,TNT,Fedex Express,etc
1.Sample oder is welcomed to test the quality.
2.OEM,ODM service
3.One year warranty and warm afterservice
4.Welcome visit our factory.
