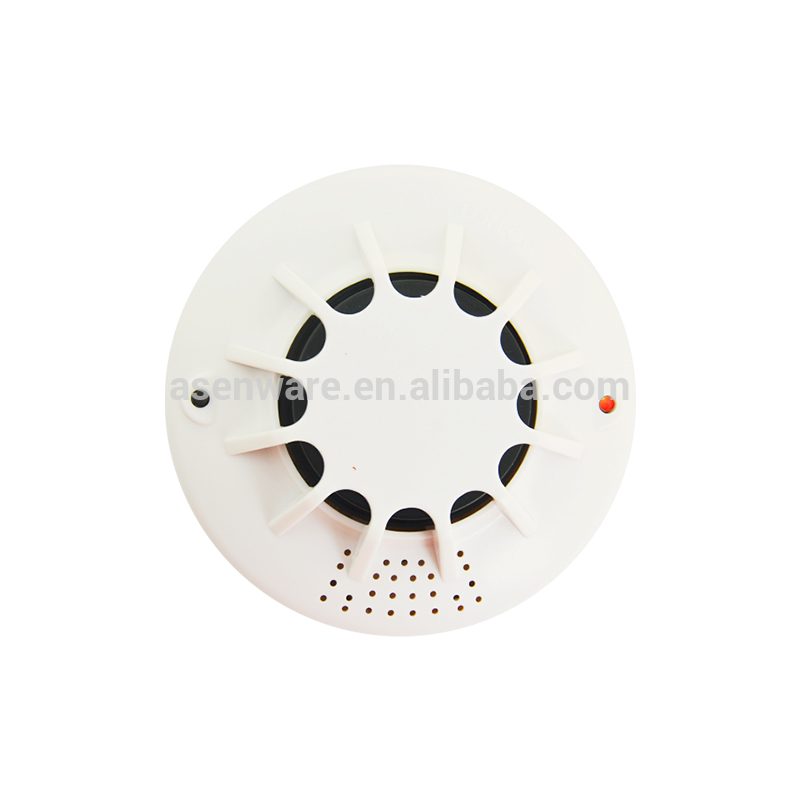

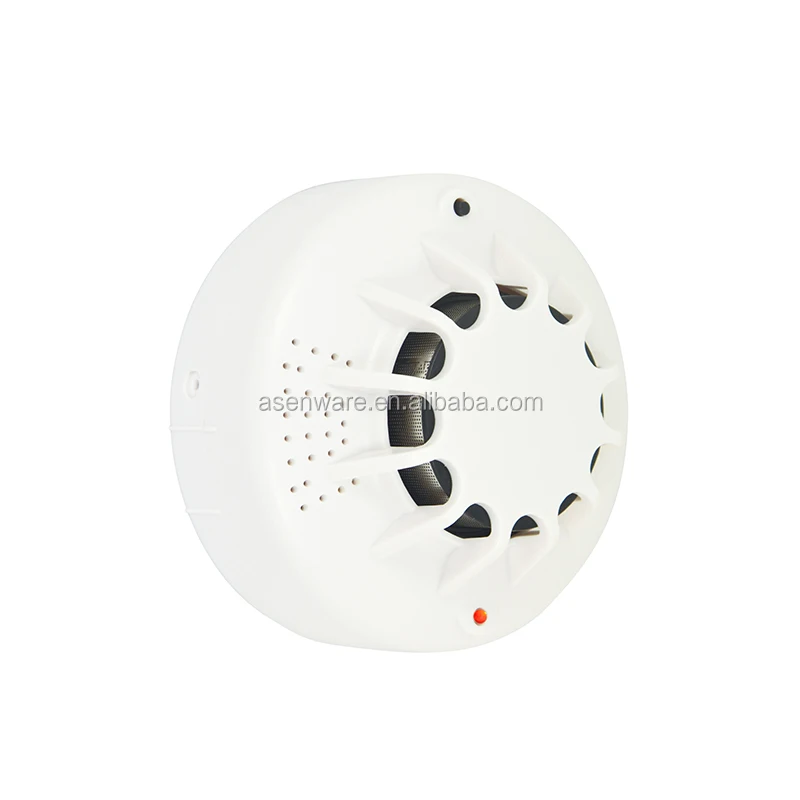

Low Price Wholesale Independent Smoke Detector AW-SSD602
General Description of Standalone/Independent Fire Alarm Photoelectric Smoke Detector
AW-SSD602 is a standalone photoelectric smoke detector,this detector was powered by a build-in 9V battery and no need to connect with the fire alarm control panel.It can also work with the control panel and the voltage is DC 12V.there are 2 leds and flash every 40 seconds indicating that the power is applied and the smoke detector is working properly.
Specifications of Standalone/Independent Fire Alarm Photoelectric Smoke Detector
| Standalone/Independent Photoelectric Smoke Detector | |
| Brand | ASENWARE |
| Model No | AW-SSD602 |
| Executive standard | GB20517-2006 |
| Operating Voltage | DC 12V(Network) or 9V Battery(Independent) |
| Opearing Current | |
| ≤10 μA (Standby); ≤20 mA (Alarm) | |
| Operating Environment | Indoor |
| Temperature | -10℃ to +50℃ |
| Relative Humidity | ≤95% (40℃±2℃, without condensation) |
| Protection Area | >40 sq.m |
| Size | Diameter:105mm; Height: 59mm |
| Weight | About 135g (Including battery) |
| Material | ABS |
| Color | White or customized |
| Service | ODM, OEM is available |
| Applicable Places | School;Factory;Office;Dormitory;Hospital;Super Market etc |
Features of Standalone/Independent Fire Alarm Photoelectric Smoke Detector
* This detector is designed to provide open area protection and no need to connect with control panel.
* Two LEDs on each detector provide local 360° visible alarm indication.
* They flash every 40 seconds indicating that power is applied and the detector is working properly.
* The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit.
* The detector that initiated the alarm condition will have its red LED .
1.Are you manufacturer?
(yes)
2.How do you package?
(Standard export packing including):
1) PEE bag per unit
2) Outside Cartons
3.what kind of shipment?
4. warranty
(two years)
5.Delivery time
usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
6. technical support
fire alarm and fire
fighting solutions
provider
our project list
FEW RECENT FINISHED PROJECTS
• Indonesia: Government Apartment ( Addressable and Telephone Panel)
• Cambodia: Coal Plant ( FM-200, LPCO2 System, Addressable Panel )
• Kenya: Senior High School ( Addressable and Conventional Panel)
• Bangladesh: Industrial Building ( Addressable Panel )
• Thailand: Ware House ( Addressable Panel with Beam Detectors )
• Laos: Telecommunication Center ( FM-200, Addressable Panel )
• Myanmar: Data Center ( FM-200, Addressable Panel )
