General Description of AW-AFP2100 Addressable Fire Alarm Control Panel:

*The addressable fire alarm control panel is a dual wire analog bus system, it can replace the conventional fire alarm control system to save 50% or more cables.
*Each detector, module, manual call point, horn, strobe ,hydrant has its own independent address, the fireman or the guard can find the exact fire alarm address instead of a wide area in conventional system.
*The AW-AFP2100 series addressable fire alarm control panel is an advanced, perfect and reliable system, it has been used in many countries.

Specification of AW-AFP2100 Addressable Fire Alarm Control Panel:

Characteristics

* 32-bit MCU, Support communication with PC via USB
* 2-wire communication between detector/module
* Each detector sensitivity adjustable
* Field-programmable with PS/2 standard PC  keypad and mouse
* 7.4" LCD back-lit display
* Windows menu and interface
* Chinese or English interface and panel display
* CF card duplicate or reset system setup file and  history file to facilitate maintenance
* Communicate with PC via USB
* Single point start/stop of module (Menu operation)
* Single point test of detector/module
* Zone, building or floor display
* CRT visually display the location of fire and trouble
* Eleven users each with a password and selectable  access levels
* Field software upgrade
* 20 AW-AFP2100 peer-to-peer, long-distance  optical fiber transmission network via CAN  communication transform module
* Flexible collocation by modularized combination

Standards that apply

* GB 4717-2005 "General Technical Conditions for Fire Alarm Control Units"
* GB 16806-2006"Automatic Control Systems for Fire Protection"
* EN54-2& EN54-4-"The Requirements of European standards"

Capacity

* Each loop card has 2 loops, with 324 alarm/ control points of each loop (Max. control points-324), the capacity of each loop card is 2×324= 648 (points/addresses)

* Each AW-AFP2100 panel can connect maximum 3 loop cards, the capacity is 3*648=1,944 (points). Over 1,944 points, use the cabinet panel, each cabinet panel can connect maximum  40 loop cards,the max. capacity is 40×648=25,920 (points/addresses)

* Peer-to-peer with maximum 20 AW-AFP2100 panels, the maximum system capacity is 20 × 25,920=518,400 (points/addresses)

Maximum simultaneous alarm of each host

*Fire Alarm:500

*Failure:500

*Feedback:500

Operating environment

*Temperature:-10°C∼+55°C

*Relative humidity:≤95%(40°C,non-condensing)

*AC power:220VAC,50Hz,3A

*DC power:24VDC,7.0Ah

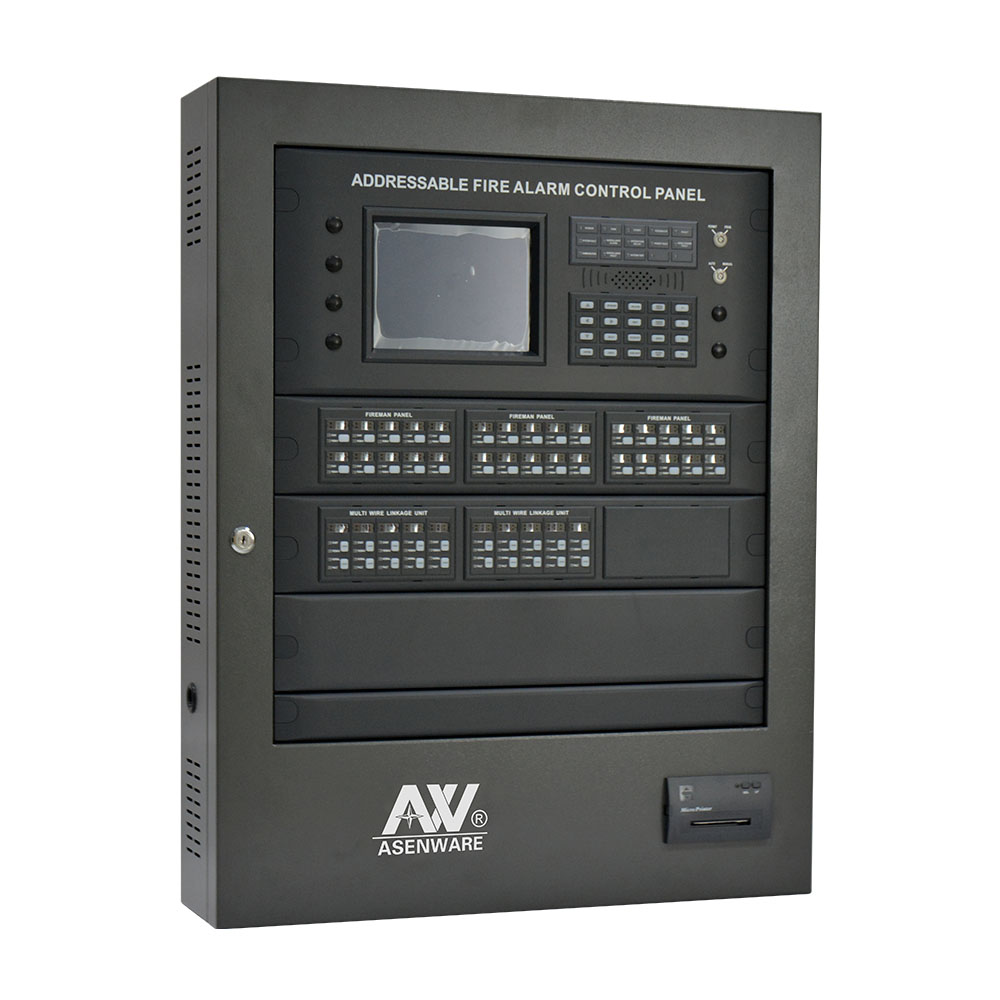

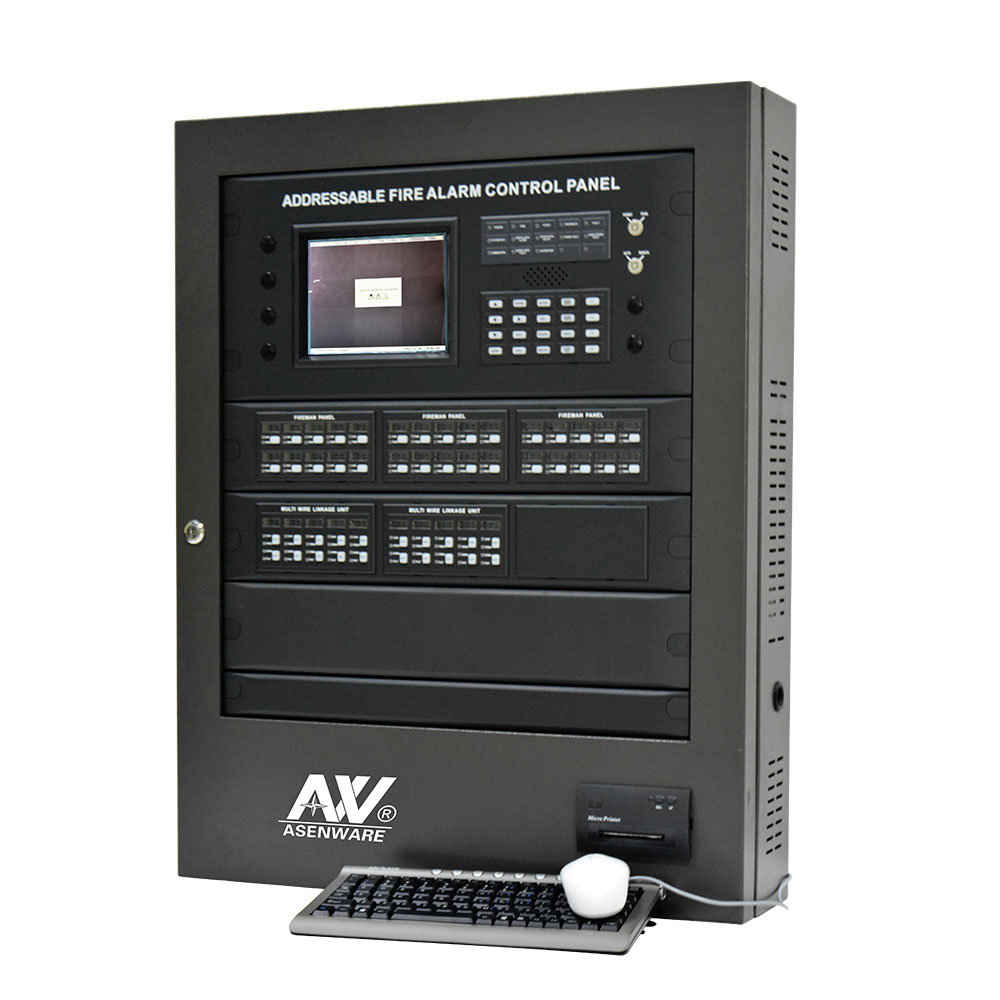

Pictures of AW-AFP2100 Addressable Fire Alarm Control Panel:

Related Products of AW-AFP2100 Addressable Fire Alarm Control Panel:

1.AW-AFP2188:Single loop addressable fire alarm control panel

2.AW-AFP2100:2-loops addressable fire alarm control panel

3.AW-ASD2188:Addressable photoelectric smoke detector
4.AW-ATD2188:Addressable fixed temperature heat detector
5.AW-ASH2188:Addressable smoke and heat combined detector
6.AW-AMC2188:Addressable manual call point
7.AW-ASS2188:Addressable hooter/horn
8.AW-AIO2188-IN:Addressable input module
9.AW-AIO2188-OUT:Addressable out module
10.AW-CODERF2188:Coder for setting address
11.AW-RP2188:Addressable Repeater/Announcer

...
