Ultraviolet and Dual Infrared Flame Detector
Specifications of AW-FD703E-UVIR2 Conventional Flame Detector
| Item | Specification |
| Implementation of standards | *GB15631-2008 "special fire detectors" *GB3836.1-2000 "explosive gas environment with electrical equipment" on 1: Common technology to begging *GB3836.2-2000 "explosive gas environment with electrical equipment" on 2 parts: flameproof "D" |
| Sensor | Career Exploration AE-S708 / 4 and AE-S708 / 5 pyroelectric infrared sensor |
| Optical window | Sapphire (Al2O3) |
| Case | *Material: Aluminum *Molding process: Die Casting *Coating process: electrostatic powder coating surface, inside metal passivation. |
| Weight | ≤1kg |
| Explosion prevention and protection | *Explosion: EXd ⅡCT6 *Protection: IP66 |
Features of AW-FD703E-UVIR2 Conventional Flame Detector
*Built-in high speed, low power consumption, high performance 16-bit high-precision data processing chip.
*Using patent narrow-band IR sensor and solar blind UV sensor.
*The improvement of the algorithm improvesthe ability of flame detection and false alarm.
*Explosion-proof design is suitable for the hazardous locations of industrial site.
*Multistage sensitivity for more occasions.
*Can detect small fire much earlier.
*Low maintenance cost, easy to update and improvement.
*Detection Angle of 120 degrees.
*Detection range up to 60 meters(AW-FD702E-IR2).
*Suitable for heavy industrial applications.
*Detector is suitable for a variety of fuel.

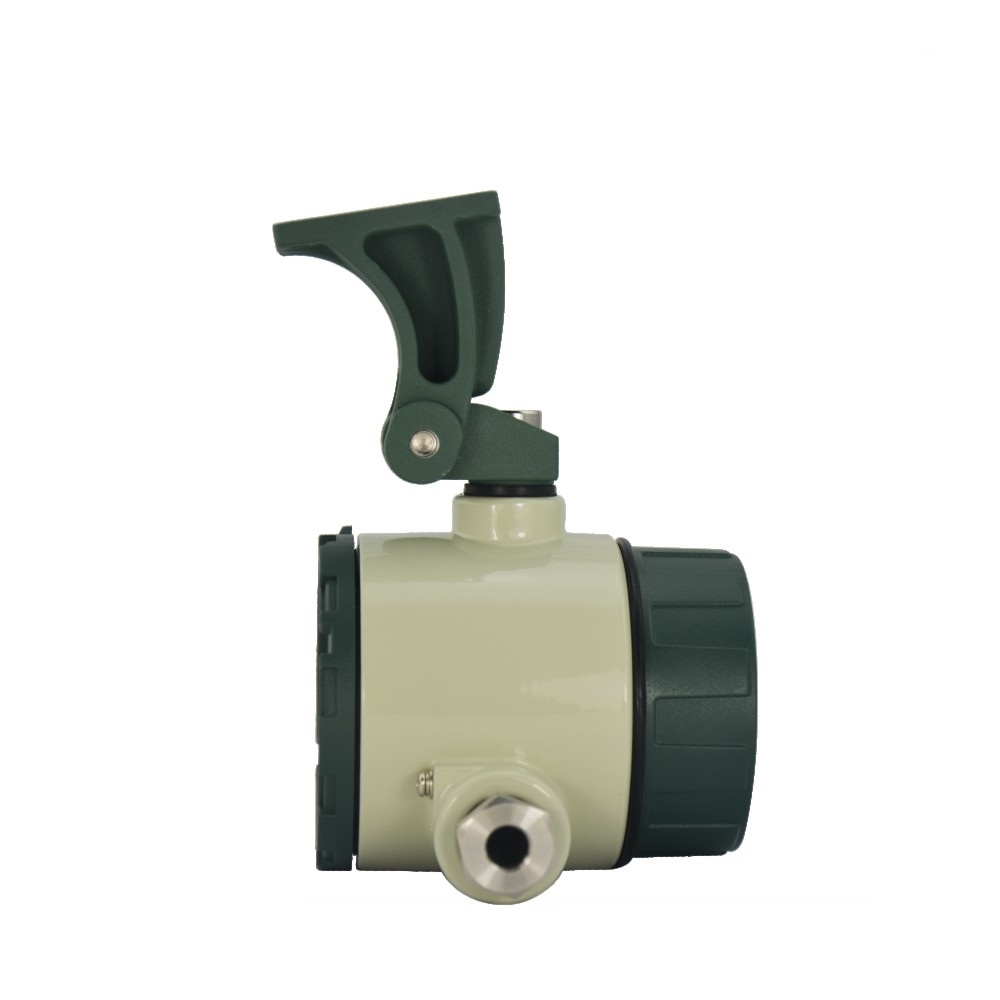

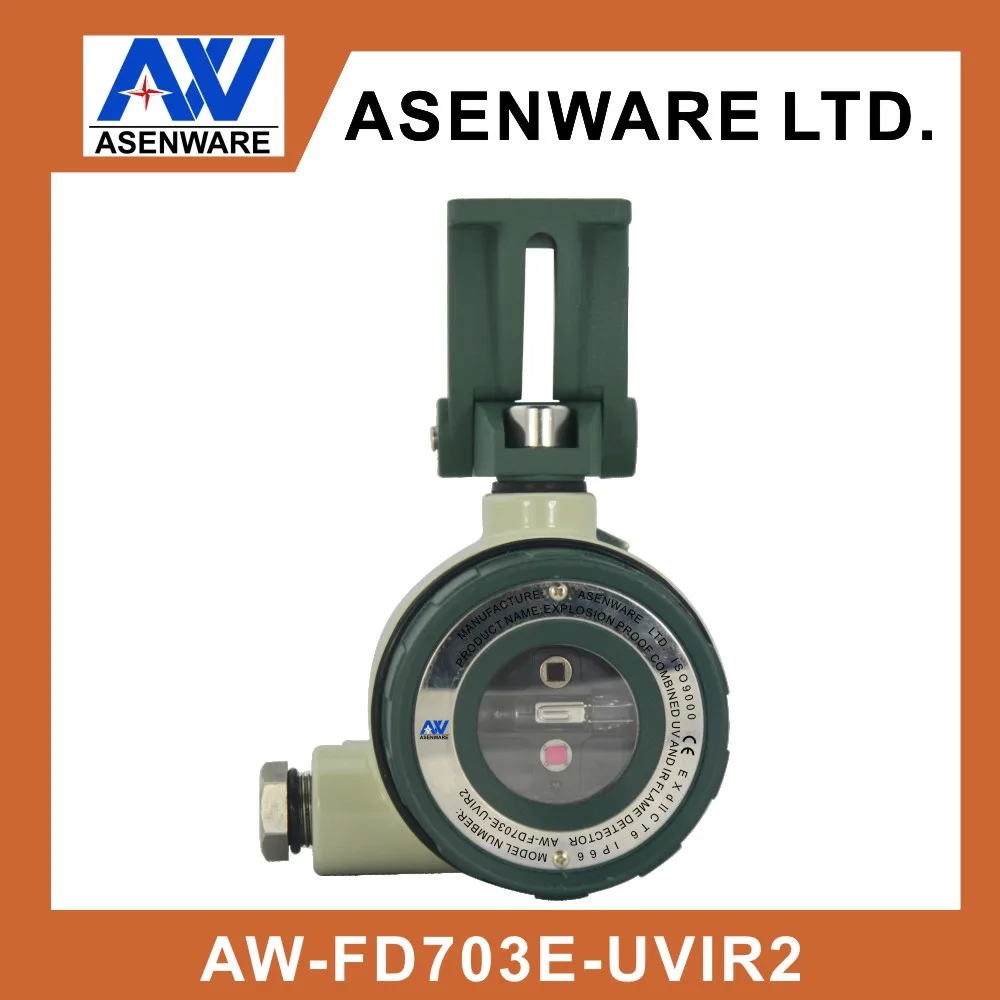

Photos of AW-FD703E-UVIR2 Conventional Flame Detector

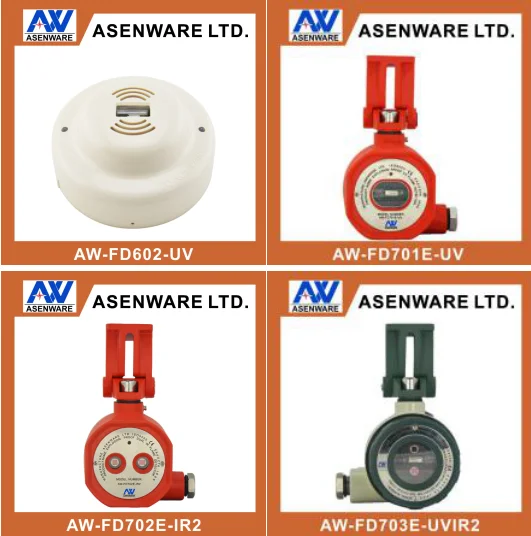

Related Products of AW-FD703E-UVIR2 Conventional Flame Detector
1.AWCFP2166 1-32 Zone Conventional Fire Alarm Control Panel
2.AW-CSD411-2/4W:Conventional photoelectric smoke detector
3.AW-CSD501-2/4W:Conventional photoelectric smoke detector
4.AW-CSH202:Conventional smoke and heat combined detector
5.AW-FD602-UV:UV flame detector
6.AW-FD701E-UV:Explosion-proof UV flame detector
7.AW-FD702E-IR2:Explosion-proof IR2 flame detector
8.AW-FD703E-UVIR2:Explosion-proof UV and IR2 combined flame detector
9.AW-CGD2166:Conventional gas detector
...
