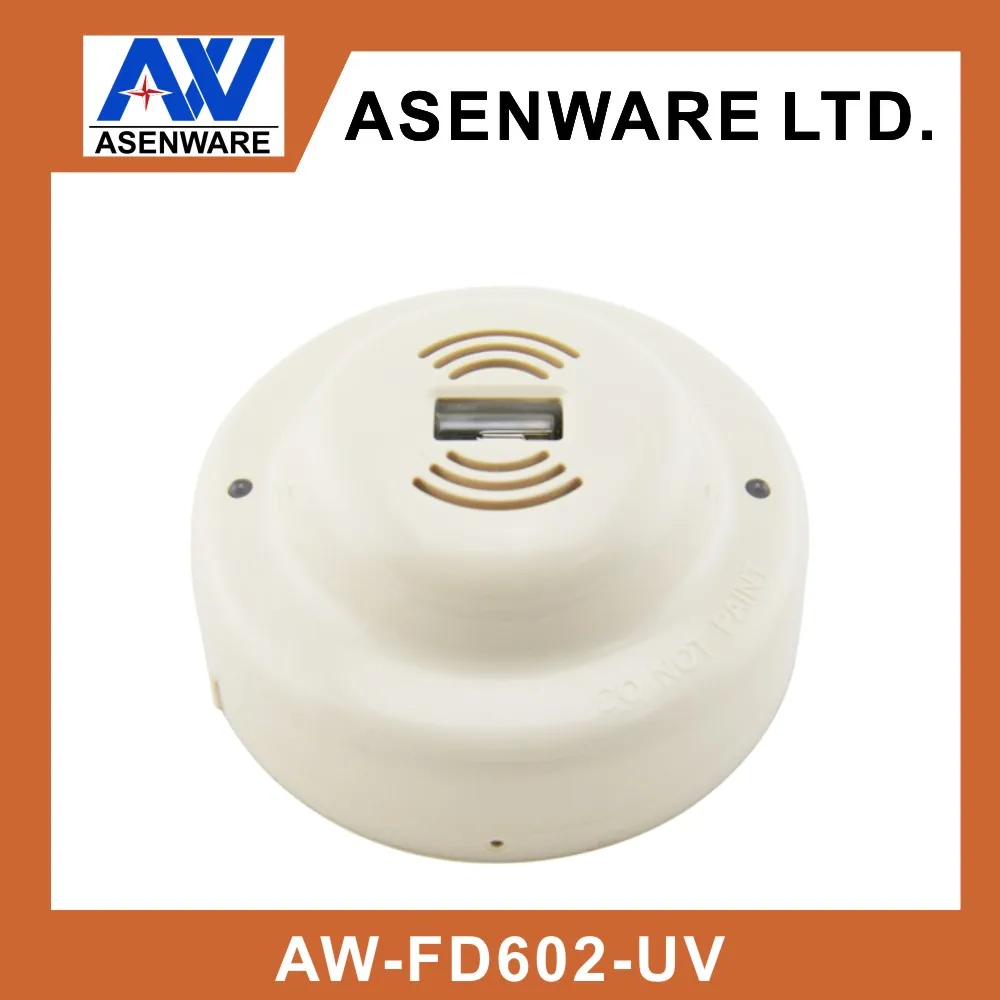

Fire Alarm Flame Sensor
Specifications of AW-FD602-UV Conventional UV Flame Detector
| Conventional UV Flame Detector | |
| Model No. | AW-FD602-UV |
| Operating Voltage Range | 12 to 30 VDC Volts |
| Standby Current | ≤10 mA @ 24 VDC |
| Alarm Current | ≤30 mA @ 24 VDC |
| Spectrum | 180~290nm |
| Detection Angle | 110 degree |
Detection Sensitivity | Grade I, 25m@flame |
| Relay Contact Load | 1A@DC24V |
| Normal Status | LED blinking in 5 seconds interval |
| Alarm Status | LED lit steady |
| Protection rating | IP32 |
| Operating Humidity Range | 10% to 93% Relative Humidity, Non-condensing |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Height | 1.8 (45 mm) installed in Base |
| Diameter | 4.0 (103 mm) |
| Weight | 5.4 oz. (153g) |
Features of AW-FD602-UV Conventional UV Flame Detector
*Advanced electronic technology used to minimise false alarms
*Wide operating voltage 12-30VDC
*Designed to meet approvals worldwide
*Dual leds for 110 degree visibility
*Compatible with a wide range of bases
*Attractive design
*Can be fitted to a duct-sampling unit
*Remote LED output
*Lockable to base to stop unauthorised removal
*IP 32

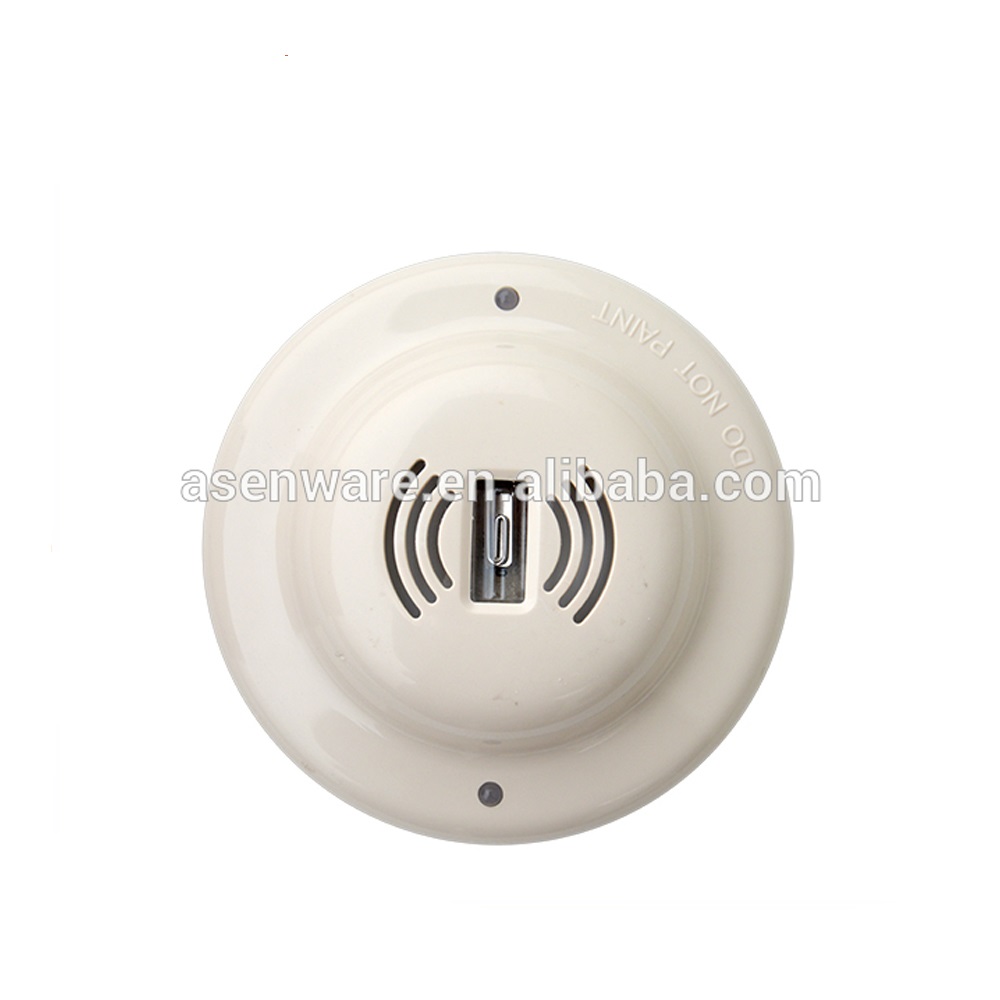

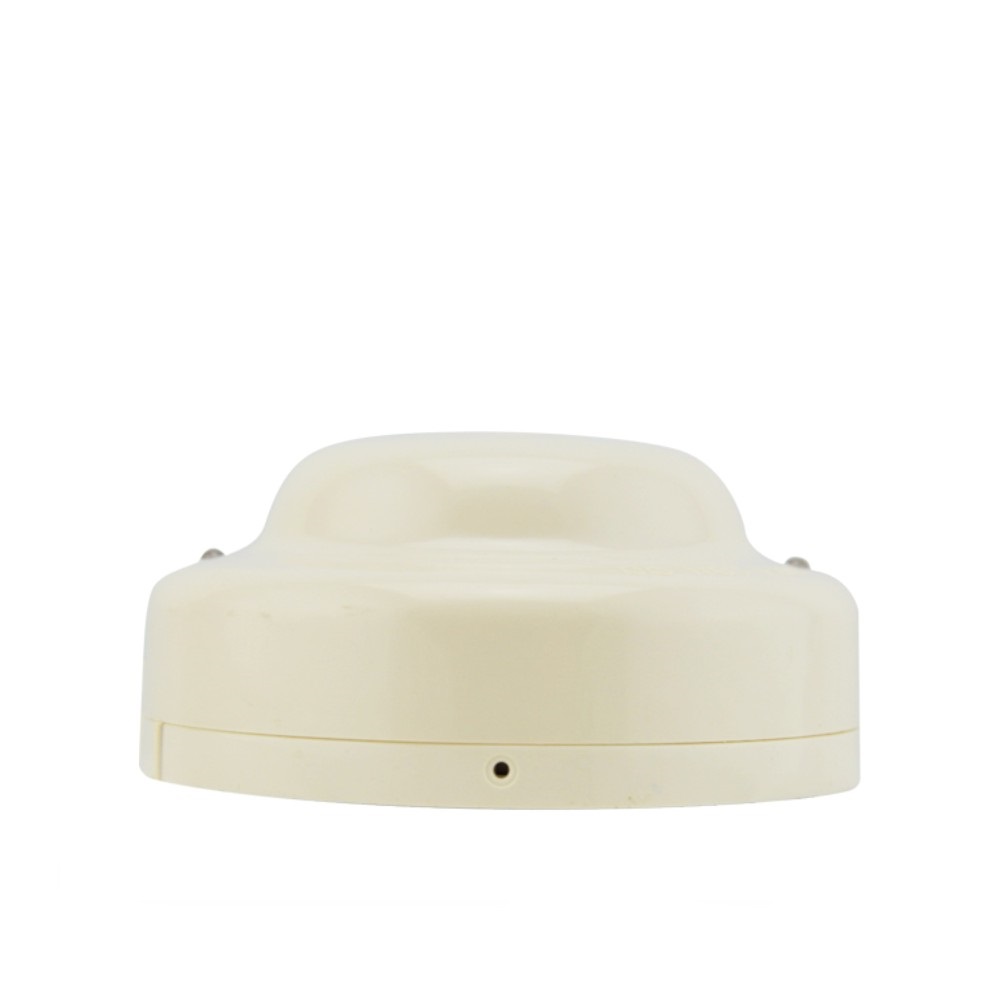

Photos of AW-FD602-UV Conventional UV Flame Detector
Related Products of AW-FD602-UV Conventional UV Flame Detector
1.AWCFP2166 1-32 Zone Conventional Fire Alarm Control Panel
2.AW-CSD411-2/4W:Conventional photoelectric smoke detector
3.AW-CSD501-2/4W:Conventional photoelectric smoke detector
4.AW-CSH202:Conventional smoke and heat combined detector
5.AW-FD602-UV:UV flame detector
6.AW-FD701E-UV:Explosion-proof UV flame detector
7.AW-FD702E-IR2:Explosion-proof IR2 flame detector
8.AW-FD703E-UVIR2:Explosion-proof UV and IR2 combined flame detector
9.AW-CGD2166:Conventional gas detector
...
Packing:Regular packing or customized packing
Shipping:DHL,UPS,EMS,TNT,Fedex Express,etc
1.Sample oder is welcomed to test the quality.
2.OEM,ODM service
3.One year warranty and warm afterservice
4.Welcome visit our factory.
