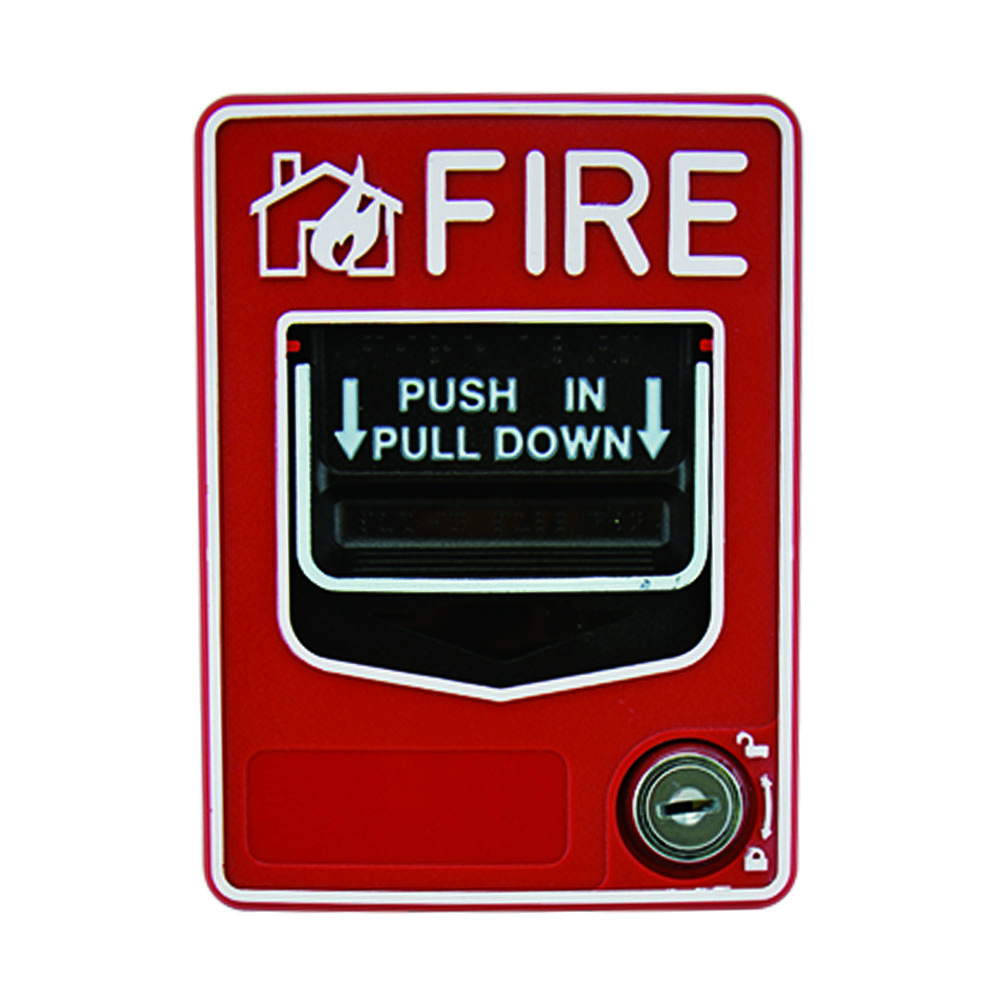

Fire Alarm Pull Station
Specifications of AW-CMC2166-6 Conventional Resettable Manual Call Point
| Product Name | Conventional Manual Call Point/Resettable |
| Model No. | AW-CMC2166-6 |
| Operating Voltage | 9 -28 VDC Volts |
| Operating Current | Alarm Current: 45mA@24 VDC |
| Contactor Resistance | 5.6K |
| Temperature | -10℃ to 50 ℃ |
| Humidity | 10% to 93%, Non-condensation |
| Feature | Resettable |
| Color | Red or Customized |
| Dimension | 140MM*105mm*45mm |
| Weight | 220g |
| Wiring Method | Nonpolar two-bus system |
| Operating enviroment | Indoor |
| Applicable Places | School;Factory;Office;Dormitory;Super Market etc. |
Features of AW-CMC2166-6 Conventional Resettabe Manual Call Point
* The AW-CMC2166-6 Manual Call Point is used to manually transmit fire alarm signal, it provides contact closure to activate emergency equipment, audible and visual signals, and alarm panels.
* It"s designed for conventional fire alarm system for reporting fire or emergency condition by pressing its breakable glass. The manual call point can be test by a test key without breaking the glass.
* The manual push button provide textured finger-hold area that includes braille text. In addtion to push in and pull down text there are arrows indicating how to oprate the station, provide for non english speaking people
* Pushing in and then pulling down on the handle activates the normally open alarm switch. Ocnce latched in the down position the word activated appears at the top in bright yellow with a portion of the handle proturding at the bottom as a visible flag.
* Resetting the station is simple: Insert the key, twist one quarter-turn then open the station"s front cover. Causing the spring-loaded operation handle to return to its orginal position. The alarmn switch can then be reset to its normal position manually or by closing the station"s front cover. Which automatically reset the switch.

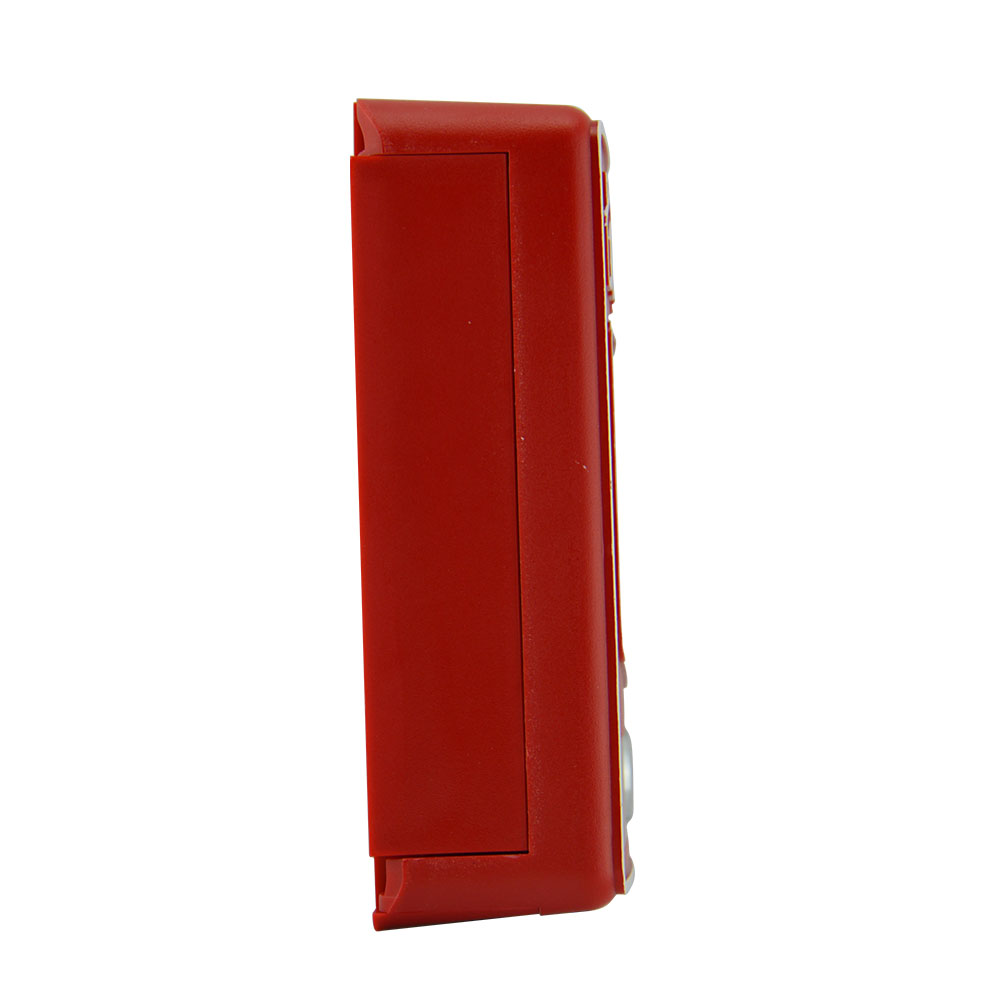

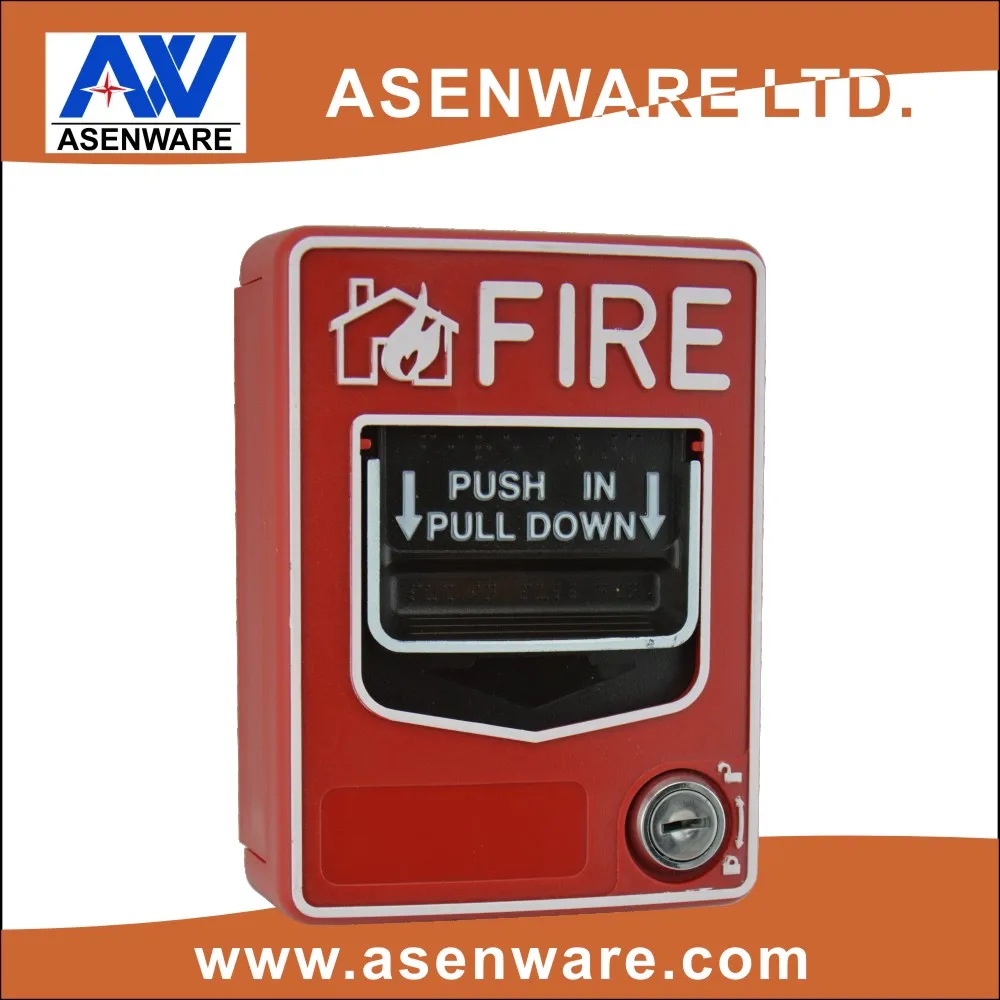

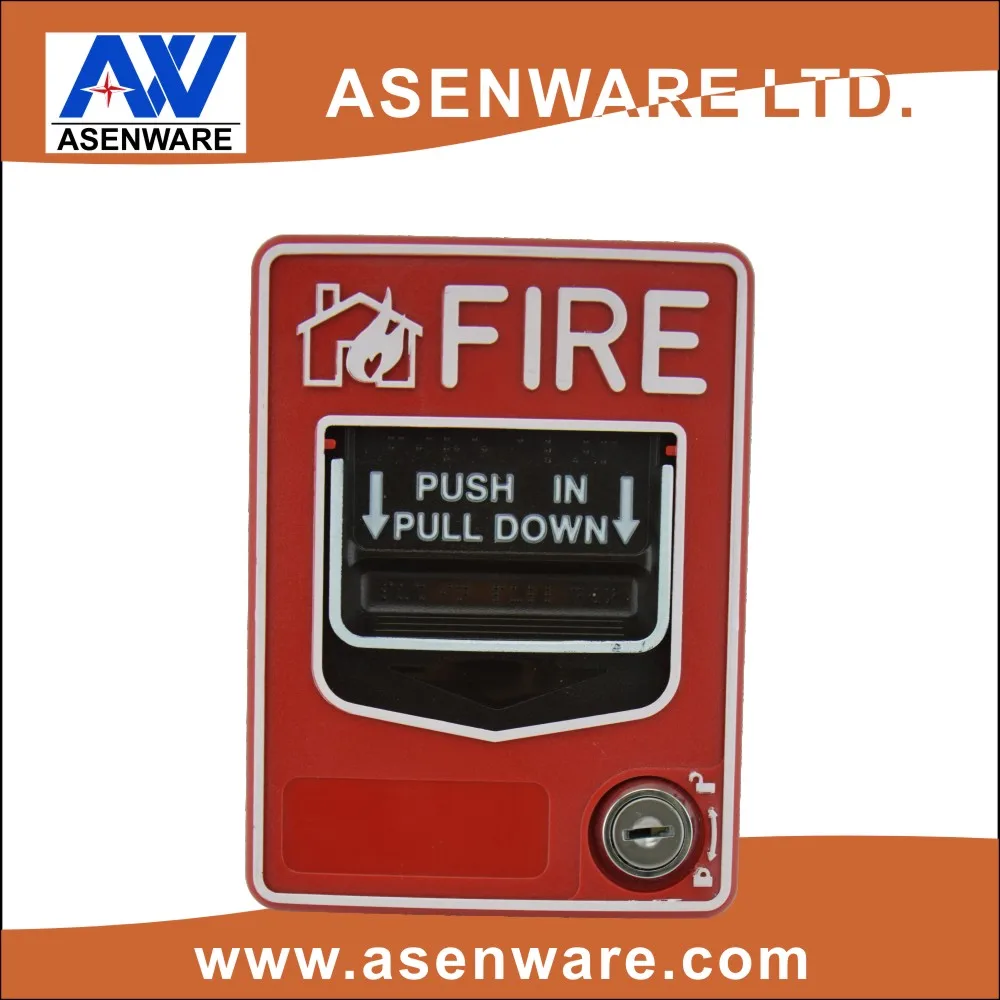

Photos of AW-CMC2166-6 Conventional Resettable Manual Call Point
Related Products of AW-CM2166-6 Conventional Resettable Manual Call Point
1.AWCFP2166 1-32 Zones Conventional fire alarm control panel
2.AW-CSD411-2/4W:Conventional photoelectric smoke detector
3.AW-CSD501-2/4W:Conventional photoelectric smoke detector
4. AW-CSH202:Conventional smoke and heat combined detector
5. AW-CTD805:Conventional heat detector
6. AW-SSD601:Independent smoke detector
7. AW-SSD701:Independent smoke detector
8. AW-FD602-UV:UV flame detector
9. AW-CGD2166:Conventional gas detector
...

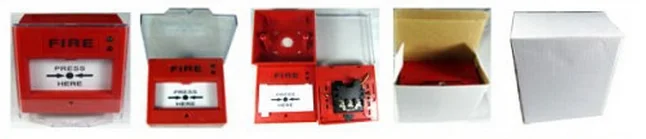

Packing:Regular packing or customized packing
Shipping:DHL,UPS,EMS,TNT,Fedex Express,etc
1.Sample oder is welcomed to test the quality.
2.OEM,ODM service
3.One year warranty and warm afterservice
4.Welcome visit our factory.
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2005.Our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
We have an experienced R&D team to design special electric product for test and control usage.We have been striving to provide customers with satifying service throughout a whole sales process.
We have the whole series from fire alarm to fire protection system,we also supply CCTV system.More details,please check our website:www.asenware.com OR asenware.en.alibaba.com
