Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- Asenware
- Model Number:
- AW-AMC2188
- Product Name:

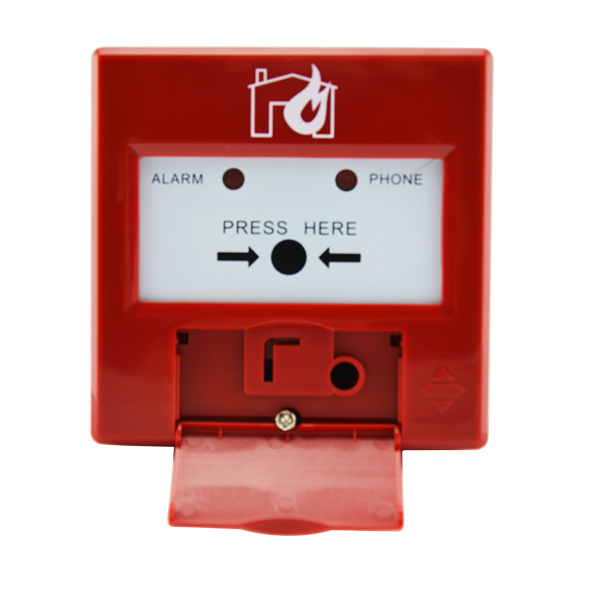

- Quality Approved Manual Pull Station Fire Alarm Push Button
- Operating Voltage:
- DC24V (Pulse Modulation)
- Wiring Method:
- Non-polarity 2-wire Bus system L1, L2; Fire telephone jack hole
- Opearing Current:
- ≤300μA(in the monitoring status);≤2mA(in the action status)
- Temperature:
- -10℃ to +50℃
- Relative Humidity:
- ≤95% (40℃±2℃, without condensation)
- Capacity:
- 0.1A/30VDC
- Telephone Jack:
- Two-wire fire telephone jack
- Starting Mode:
- Press the pressing sheet manually
- Size ( With Base):
- 90mm x 51mm x 90mm
Supply Ability
- Supply Ability:
- 1000000 Piece/Pieces per Year
Packaging & Delivery
- Packaging Details
- Standard export packing including:
1) PP Bag
2) Cartons
3) Pallets or plywood case for sea shipping
- Port
- Shenzhen; China Ocean Port
