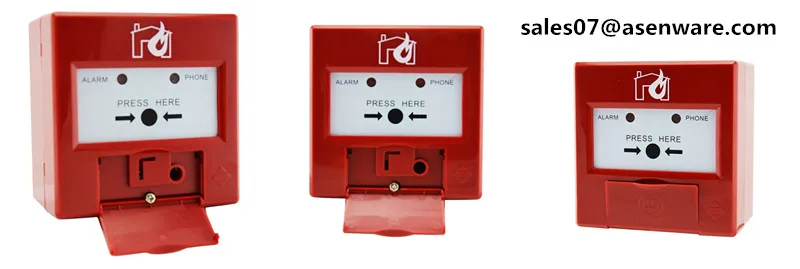

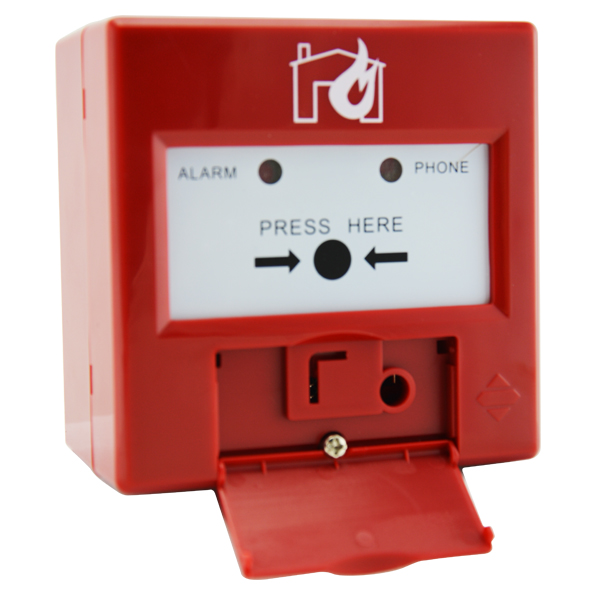

10 Years Manufacturer Resettable Manual Alarm Call Point
Description of Addressable manual call point:
* It can realize complete electronic coding and in situ rewriting with help of a coder.
* Designed with an upper cover and a lower cover, it can be installed, debugged and maintained conveniently.
* It is designed with a two-wire fire telephone jack and is therefore more applicable to engineering application.
* Designed with passive output contacts, it can control other external equipment directly through an intermediate relay.
* The pressing sheet on the manual call point will not get crushed after it is pressed, but can be reset by a special tool, so it can be used repeatedly.
Parameter of Addressable manual call point:
| Product Name | Addressable Manual Call Points for Fire Alarm |
| Brand | ASENWARE |
| Model No | AW-AMC2188 |
| Executive standard | GB19880-2005 |
| Operating Voltage | DC24V (Pulse Modulation) |

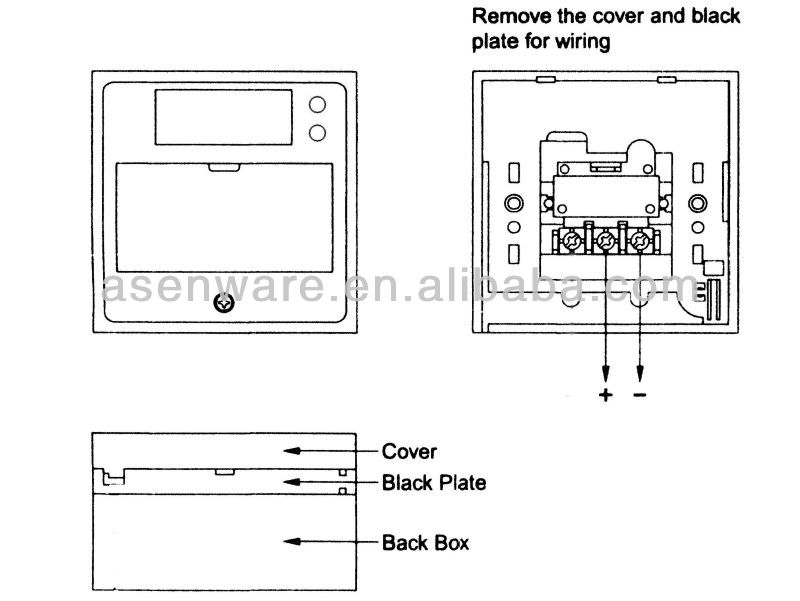

| Wiring Method | Non-polarity 2-wire Bus system L1, L2 Fire telephone jack hole TL1,TL2 |
| Opearing Current | ≤300μA(in the monitoring status) ≤2mA(in the action status) |
| Temperature | -10℃ to +50℃ |
| Relative Humidity | ≤95% (40℃±2℃, without condensation) |
| Capacity | 0.1A/30VDC |
| Telephone Jack | Two-wire fire telephone jack |
| Starting Mode | Press the pressing sheet manually |
| Size ( With Base) | 90mm x 51mm x 90mm |
| Weight | About 120g |
| Shell Material | Hard Plastics |
| Shell Color | Red or customized |
| Matched host machine: Service | ODM, OEM is available |
| Applicable Places | School;Factory;Office;Dormitory;Hospital;Super Market etc |
Connect With Addressable Fire Alarm System
Quality Assurance
* Over 10 years" experience.
* Prompt response.
* OEM & ODM is available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
