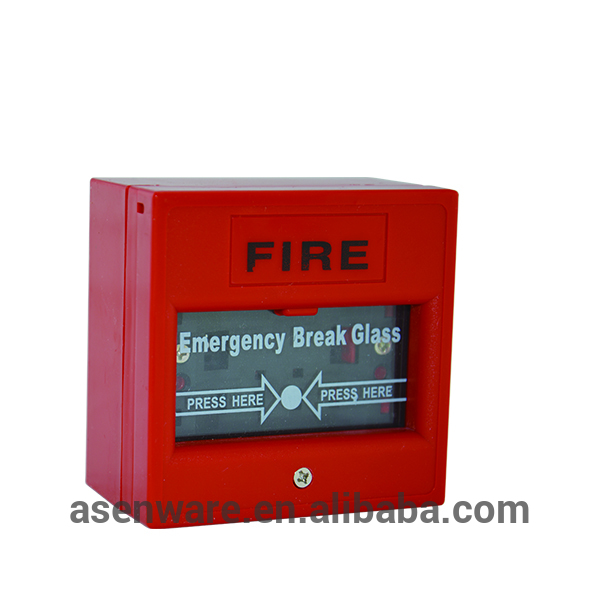

Asenware Brand Pull up Station Manual Call Point
Description of Manual Call Point:
The AW-CMC2166-1 Manual Call Point is used to manually transmit fire alarm signal,
it provides contact closure to activate emergency equipment, audible and visual signals, and alarm panels.
It is generally installed in staircase, hallway, evacuation passage or places where people haunt.
We have the others conventional manual call point which are resettable, "AW-CMC2166-5" and "AW-CMC2166-6".
More details, pls scearch the Model No. on our officail website or contact me directly.
Specification of Manual Call Point:
| Product Name | Manual Call Point/ Break Glass |
| Model No. | AW-CMC2166-1 |
| Operating Voltage | 220VAC/50Hz or 24 VDC |
| Operating Current | Max.Curren:5A(220VAC/50Hz) or 8A(24VDC) |
| Contactor Resistance | Less than or equal to 0.1 Ohm |
| Temperature | -10℃ to 50 ℃ |
| Humidity | 10% to 93%, Non-condensation |
| Feature | Unresettable |
| Color | Red or Customized |
| Weight | 165g |

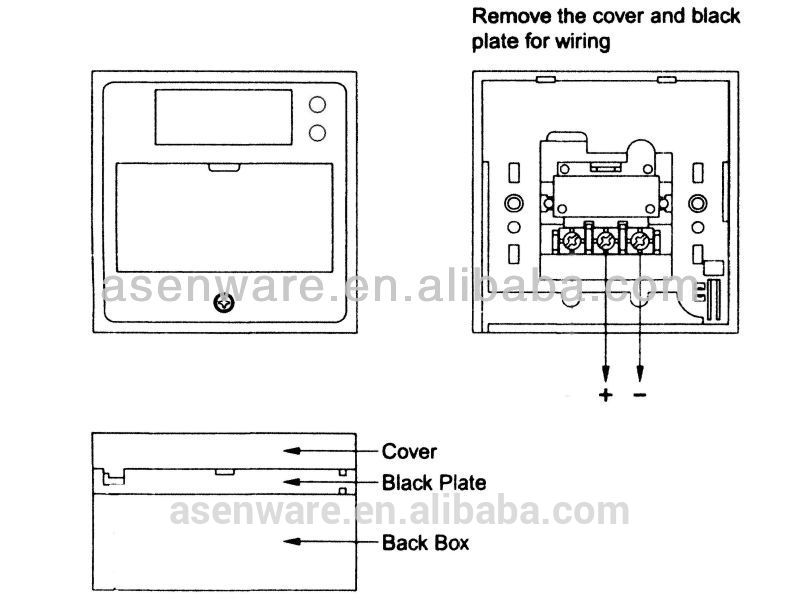

| Wiring Method | Nonpolar two-bus system |
| Operating enviroment | Indoor |
| Applicable Places | School;Factory;Office;Dormitory;Super Market etc. |
* Over 10 years" experience.
* Prompt response.
* OEM & ODM is available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
