Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- Asenware
- Model Number:
- AW-ASD2188
- Product Name:

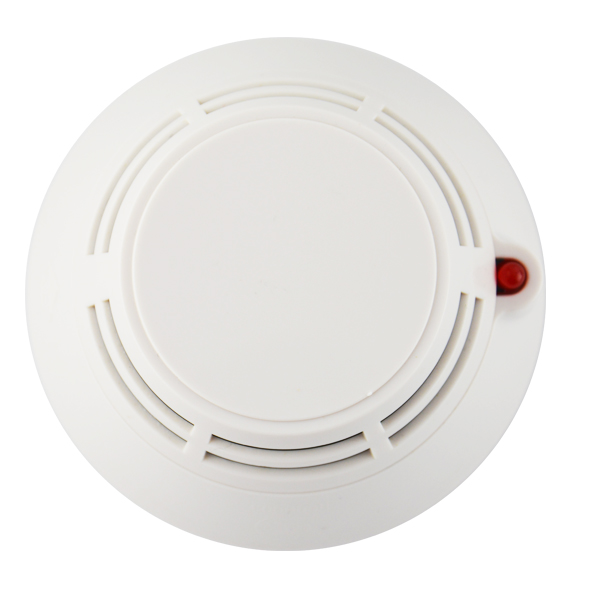

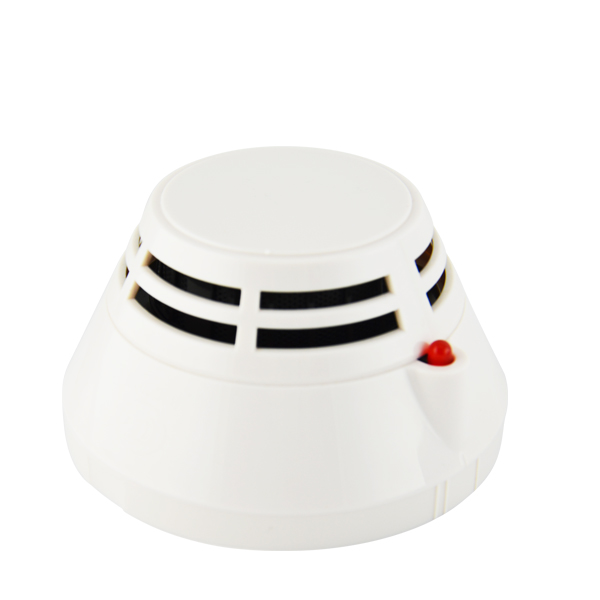

- 10 years factory production Addressable Fire Detector Smoke Alarm
- Operating Voltage:
- 24V (Pulse Modulation)
- Wiring Method:
- Non-polarity two-bus addressable system(L1,L2)
- Opearing Current:
- <300 μA (Monitoring Status); or <1.5 mA (Alarm Status)
- Operating Environment:
- Indoor
- Temperature:
- -10℃ to +50℃
- Relative Humidity:
- ≤95% (40℃±2℃, without condensation)
- Protection Area:
- ≤60 sq.m
- Installation Height:
- ≤12m
- Size ( With Base):
- Diameter:100mm;Height: 55mm
Supply Ability
- Supply Ability:
- 1000000 Piece/Pieces per Year
Packaging & Delivery
- Packaging Details
- Standard export packing including:
1) PP Bag
2) Cartons
3) Pallets or plywood case for sea shipping
- Port
- Shenzhen; China Ocean Port
