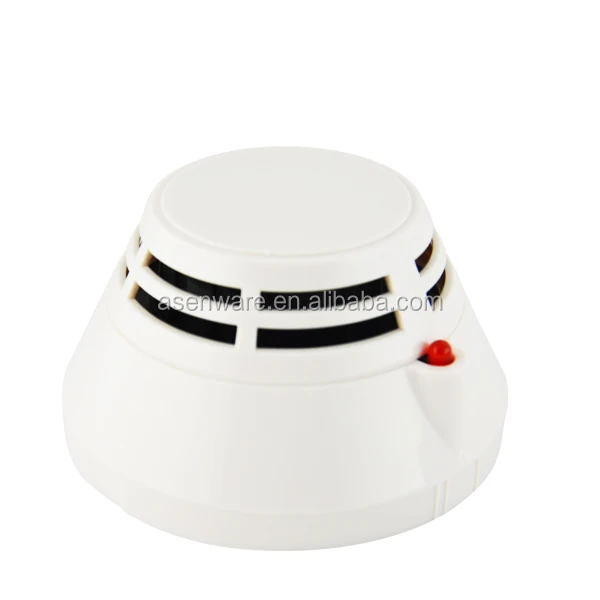

ASENWARE Hot Brand Photoelectric Addressable Smoke Detector Fire Alarm
Parameter
| Product Name | Addressable Smoke Detector Connect with Fire Alarm System |
| Brand | ASENWARE |
| Model No | AW-ASD2188 |
| Executive standard | GB4715-2005 |
| Operating Voltage | 24V (Pulse Modulation) |
| Wiring Method | Non-polarity two-bus addressable system (L1,L2) |
| Opearing Current | <300 μA (Monitoring Status); or <1.5 mA (Alarm Status) |
| Operating Environment | Indoor |
| Temperature | -10℃ to +50℃ |
| Relative Humidity | ≤95% (40℃±2℃, without condensation) |
| Protection Area | ≤60 sq.m |
| Installation Height | ≤12m |
| Coding mode | It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection. |
| Work indication | The red indicator will blink in the monitoring status or remain lit in the alarm status. |
| Size ( With Base) | Diameter:100mm; Height: 55mm |
| Weight | About 70g |
| Shell Material | Hard Plastics |
| Shell Color | White or customized |
| Service | ODM, OEM is available |
| Applicable Places | School;Factory;Office;Dormitory;Hospital;Super Market etc |
Description
* It can realize electronic coding and rewrite the address via coder in situ.
* Within a single-chip microcomputer, it can process the sampling data in real-time, save the latest 144 historical data and realize a curve tracing for the field situation.
* It has a temperature, humidity and dust accumulation drift compensation function and a sensor fault detection function (fault reporting to fire alarm control panel).
* Non-polarity, two-bus connection that ensures convenient installation and maintenance.
* Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.
Function
Can effectively detect fires produced smoke early and timely and reliable information on the specific location of the fire is transferred to the automatic intelligent fire alarm host.
Feature
* The device is stable and reliable;
* The device is easy to install, maintain;
* The device can be encoded with the chip inside the device, the address code can be stored by the encoder;
* The devices with status indicators, usually in a state when the patrol intermittently flashing red LED when smoke is detected in the alarm state, the red LED indicator light.
Connect With Addressable Fire Alarm System
Quality Assurance
Accessories In Fire Alarm System
See what the main products we are specialized in (Product Range)
Fire alarm system
* Addressable fire alarm system
* Conventional fire alarm system
Fire suppression system
* FM200 Gas suppression system
* Foam extinguishing system
* Water sprinkler extinguishing system
* ABC power/CO2 Fire extinguisher
DDC controller and BMS/HVAC system
CCTV camera/Thermal camera/DVR
Emergency lighting system
Firefighting supplies Accessores
More Relative or Matching Products for your reference
Link for Conventional Smoke Detector:
Link for Infrared Linear Beam Smoke Detector
Link for Addressable Fire Alarm Control Panel
Our services and advantages
* Over 10 years" experience.
* Prompt response.
* OEM & ODM available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better service.
* Direct control on materials, production status, quality checking.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
Frequently Asked Questions
* Is Asenware Company a factory ?
Yes, we have Factory in Zhongshan, Office in Shenzhen, Headquarter in London.
* What is our payment term ?
T/T; L/C; Western union.
* How long is the delivery time ?
Usually about 2 to 7 days. Mass production about 3 weeks.
* Do we have technical support ?
Yes, we have a professional engineering team.
* How to assure the quality ?
Firstly, our materials and components pass the serious China Quality Standard and Control.
Secondly, our finished products only should pass Asenware Quality Check System before export.
Thirdly, our products can be provided to test and certify by Authories according to customer"s special need.
* Do we have warranty ?
Yes, One year or more depends.
* Sample for testing ?
Yes, Stock sample or Customized sample is available.
* Procedure to Purchase our products ?
Inquiry --- Offer --- Dicssion --- Confirmation --- Order --- Deposit --- Production --- Payment --- Shipment --- Arrival --- Finished --- Feedback --- Repeat Order.
* The ways to contact us ?
Offical web "asenware.en.alibaba.com"; Domestic and Abroad Exhibitions; Factory Tour; Email & Phone etc.
Shipping
Payment
Customers
Certificates
Contacts
Just feel free to contact us now, best service and favorable quotation will be offered to you ! !
