* AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
* It is modularized design, the panel can expend from 1 zone to 32 zones easily.
* It has 2 level control mode by a lock.
* It has 24VDC and 5VDC power supply output.
* It has FIRE and FAULT signal output.
* It has 2 general sounders output.
* Each zone has 1 circuit detectors input .
* Each zone can be disable by a button.
* It has RESET button to reset the panel.
* It has SILENCE button to stop BUZZER and SOUNDERS.
* It has EVACUATE button to start a manual fire alarm immediately.
* It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
* It has an optional GSM module for fire alarm by SMS .
* It is economic, user-friendly and easy maintenance.
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
| ITEM | 1 Zone panel | 2 Zone panel | 4-8 Zone panel | 4-32 Zone panel |
| Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-08 | AW-CFP2166-04-16 |
| Power Specification | ||||
| Mains supply voltage | 110VAC or 240VAC | |||
| Internal power supply | 27.2VDC | |||
| Total output current limited | 500mA @ 240VAC | 3A @ 240VAC | ||
| Main supply monitor for fault | Yes | |||
| Battery protection for low voltage | Yes | |||
| Batteries (default configuration) | 12V2AH*2 | |||
| Detector Circuit Specification | ||||
| Number of circuit | 1 | 2 | 4-8 | 4-32 |
| Line fault monitor for open circuit | Yes | |||
| Line fault monitor for short circuit | Yes | |||
| Line fault monitor for detector removal | Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor | |||
| End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| Detector continuity diodes | Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault) | |||
| Call point resistor value | 470 to 680 Ω, 0.225 or 0.5 watt | |||
| Maximum number of smoke/heat detectors per zone | 20 (based on a total detector current of 2mA, each detector consuming 100μA).Note: if End of Line Monitor Unit is fitted, for correct operation maxmum voltage drop must not exceed 12 volts. | |||
| Maximum number of manual call points per zone | No limit | |||
| Sounder Circuit Specification | ||||
| Number of general circuits | 2 | |||
| End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| Line fault monitor for open circuit | Yes | |||
| Line fault monitor for short circuit | Yes | |||
| Outputs fused AT | 400mA | |||
| Maximum number of bells @ 20mA of each Sounder output | 20 | |||
| Fuses | ||||
| Battery fuse | 1.5A F 20mm | |||
| Sounder outputs | 500mA F 20mm | |||
| Fire Output | ||||
| Output type | NC and NO relay | |||
| Maximum current | 100mA | |||
| Connection Block | ||||
| Largest acceptable conductor size | 2.5mm2 | |||
| Smallest acceptable conductor size | 0.75mm2 | |||
| Size and Weight | ||||
| Dimensions(mm) | 272X200X70 | 320X231X90 | 395X502X124 | 362X565X124 |
| Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
| Weight (with batteries) | 5.8kg | 6.8kg | 19.6kg | 12.5kg |

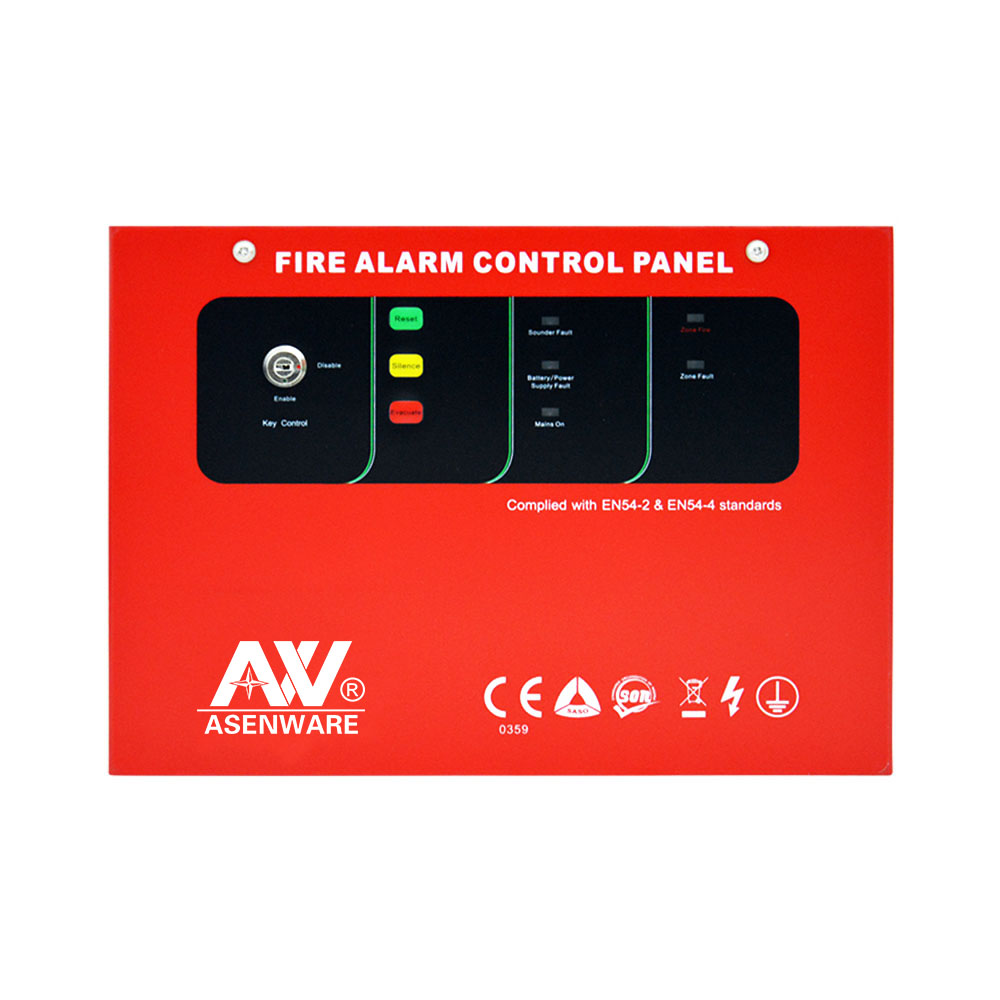

2 Zone Panel: conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system

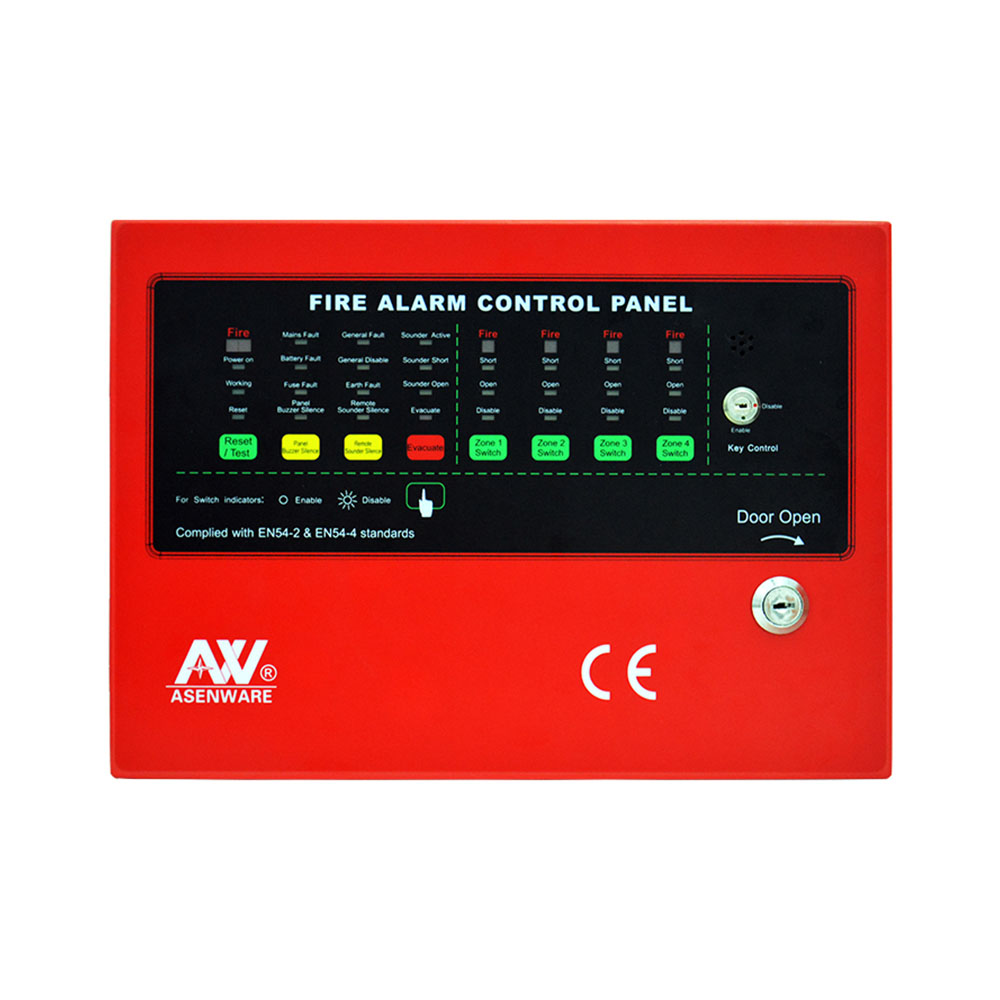

4 Zone Panel:
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
32 Zone Panel:
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
Red Look:
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
Black Look:
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
White Look:
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
System Diagram of The Conventional Fire Alarm Panel
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
Applicated in Various Places and Environment
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
The Whole Fire Alarm Control Panel System
conventional fire alarm, addressable fire alarm, fire alarm system, fire alarm panel, fire alarm control, alarm control system, with smoke detector, with heat detector, heat smoke sensor, fire fighting, security fire alarm system
| The conventional fire alarm control system 2166 series match the below detectors and accessories: | |||||||
| Image | | ||||||
| Name | conventional photoelectric smoke detector | conventional fixed temperature heat detector | conventional smoke and heat combind detector | conventional manual call point/break glass | conventional hooter/horn | conventional fire bell | conventional flash light |
| Model No. | AW-CSD311 | AW-CTD805 | AW-CSH202 | AW-CMC2166-1 AW-CMC2166-5 | AW-CSS2166-2 | AW-CBL2166-A | AW-CBL2166 |
