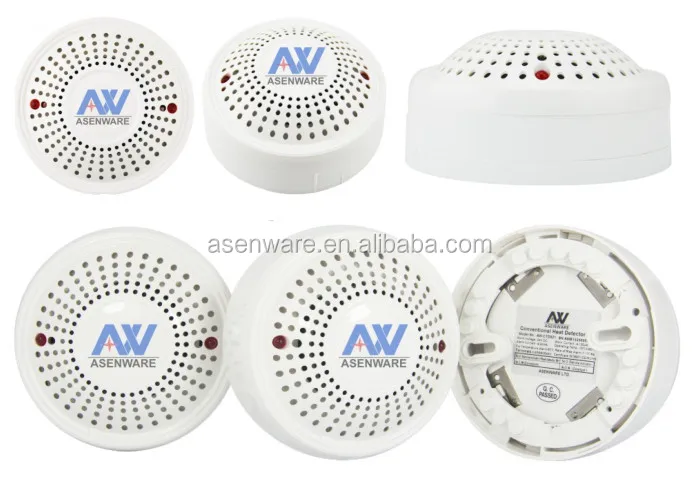

Project Hotel Facilities Conventional Heat Detector
Specification and Description
| Specifications: | |
| Operating Voltage Range | 9 to 28 VDC Volts Non-polarized |
| Standby Current | ≤120μ A@24VDC |
| Maximum Alarm Current (LED on) | ≤15mA@24VDC (1K Ohm current-limiting resistance) |
| Operating Humidity Range | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
| Operating Temperature Range | -10° C to 50° C (14° F to 122° F) |
| Smoke Alarm Sensitivity | 1.06± .26%FT |
| Fix temperature Alarm | 57° C (135° F) A1R |
| Rate of rise Alarm | 7.1° C/5S A1R |
| Height | 48.2 mm installed in Base |
| Diameter | 99.45 mm |
Description:
* The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber.
* This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
* Two LEDs on each detector provide local 360° visible alarm indication.
* They flash every six seconds indicating that power is applied and the detector is working properly.
* The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit.
* The alarm can be reset only by a momentary power interruption.
* The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
* Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.
Images
Detailed Parameter of AW-CSD811 Heat Detector
Upgraded Model Compared with Old Model :
More Fire Alarm Detectors of Asenware Company
Flexible Options for Big Buyers
Quality Assurance
More Relative or Matching Products for your reference :
Smoke Detector:
Conventional Fire Alarm Panel:
* Over 10 years" experience.
* Prompt response.
* OEM & ODM is available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
