- Place of Origin:
- Guangdong, China
- Brand Name:
- ASENWARE
- Model Number:
- AW-BK901
- Item:
- Indoor Infrared Photoelectric Beam Detector
- Operating Voltage:
- 20 V to 28 V DC
- Current Parameters:
- Standby:23mACommission:40mAAlarm:33mA
- Beam Path Angle:
- ±0.5Directional
- Alignment Guide:
- Laser Beam Pointer
- Digital Display Guide:
- Nixie Tube
- LED Indicator Guide:
- Red: Fire ; Yellow: Fault ; Green: Alignment
- Reset Time:
- Less than 2 Second
- Relay Capacity:
- Normally Open/ 2.0 A; 30 VDC
- Weight:
- 0.130 Kg with base
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- with plastic bag and carton box
- Port
- Zhongshan

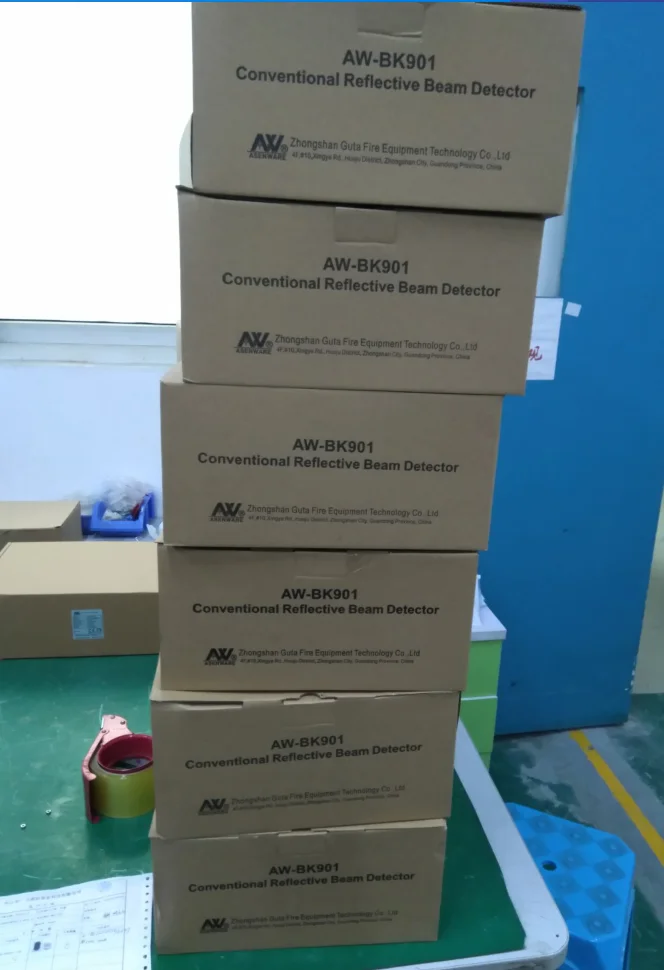

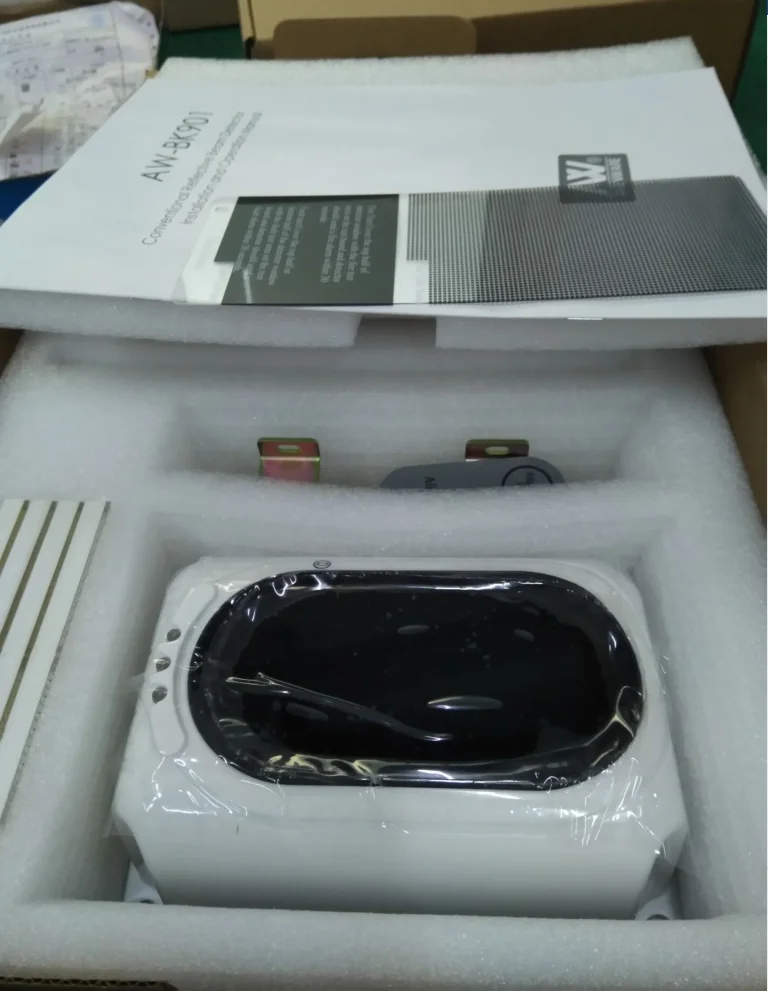

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
Indoor Infrared Photoelectric Beam Detector
| Model Number | AW-BK901 |
| Fire Detection and Alarm Systems | BS 5839 Part 1:2002 Specifications |
| Operating Voltage | 20 V to 28 V DC |
| Current Parameters | Standby:23mA Commission:40mA Alarm:33mA |
| Beam Sensor Sensitivity | Level 1: 2.6 dB High Sensitivity Level 2: 3.4 Medium Sensitivity Level 3: 4.8 dB Low Sensitivity |
| Beam Path Angle | ±0.5ºDirectional |
| Alignment Guide | Laser Beam Pointer |
| Digital Display Guide | Nixie Tube |
| LED Indicator Guide | Red: Fire ; Yellow: Fault ; Green: Alignment |
| Reset Time | Less than 2 Second |
| Relay Capacity | Normally Open/ 2.0 A; 30 VDC |
| Material / Color | ABS / White |
| Dimension / Weight | L:190.87 x W:126.87 x H:91.96 mm / 440 gm |
| Weight | 0.130 Kg with base |
| Environmental Operating Temperature /Protection | -10°C to 55°C / IP30 [IP66 glue seal] Rating |
| Humidity | 0 to 95% Relative Humidity, Non condensation |
he following accessories are included in the package
1. Four plastic expansion bolts
2. Two M4*12*10 three combination cross recessed pan head screws.
3. Four ST4*30 tap cross recessed pan head screws.
4. Mounting Bracket
5. Opaque/Translucent Material
6. Six Æ4 flat washers.
7. Magnetic Tool
ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005.
Driven by a commitment to sound operations, ongoing innovation, and open collaboration, we have established a competitive fire safety products line include addressable fire alarm system, conventional fire alarm system, central monitoring emergency light system, fire telephone and emergency audio system, fire pump, fire hose and gas suppression system.
Our fire safety products ,solutions and services are used in over 100 countries.
With over 200 employees work in United Kingdom-Marketing Center, China-R&D and Supply Chain Center and Bangladesh-Manufacture Center, ASENWARE is committed to design and manufacture the best fire safety products to reduce the risk of fire, and support the world to be more safe and more comfortable.
1.Sample is acceptable
2.1 year warranty
3.Full technical support including buildilding fire alarm system CAD design
4.Life long maintance
