Product Description

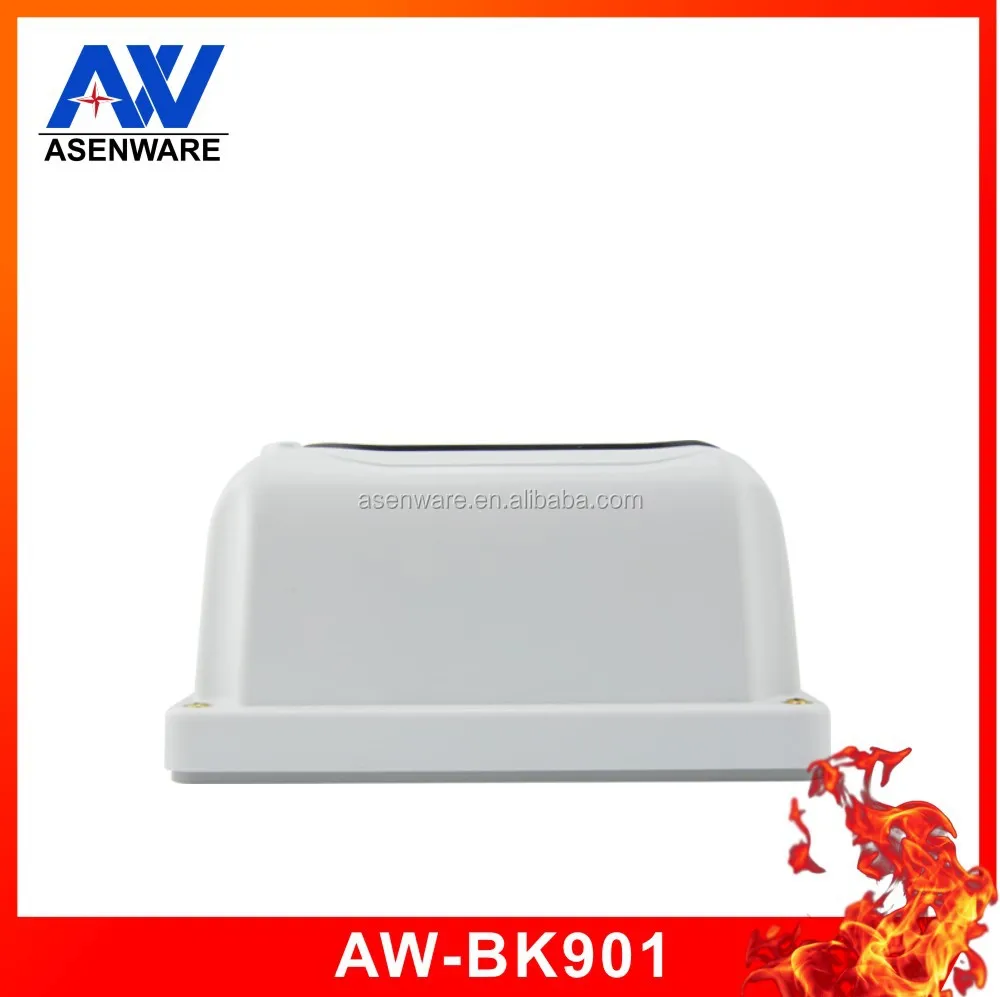

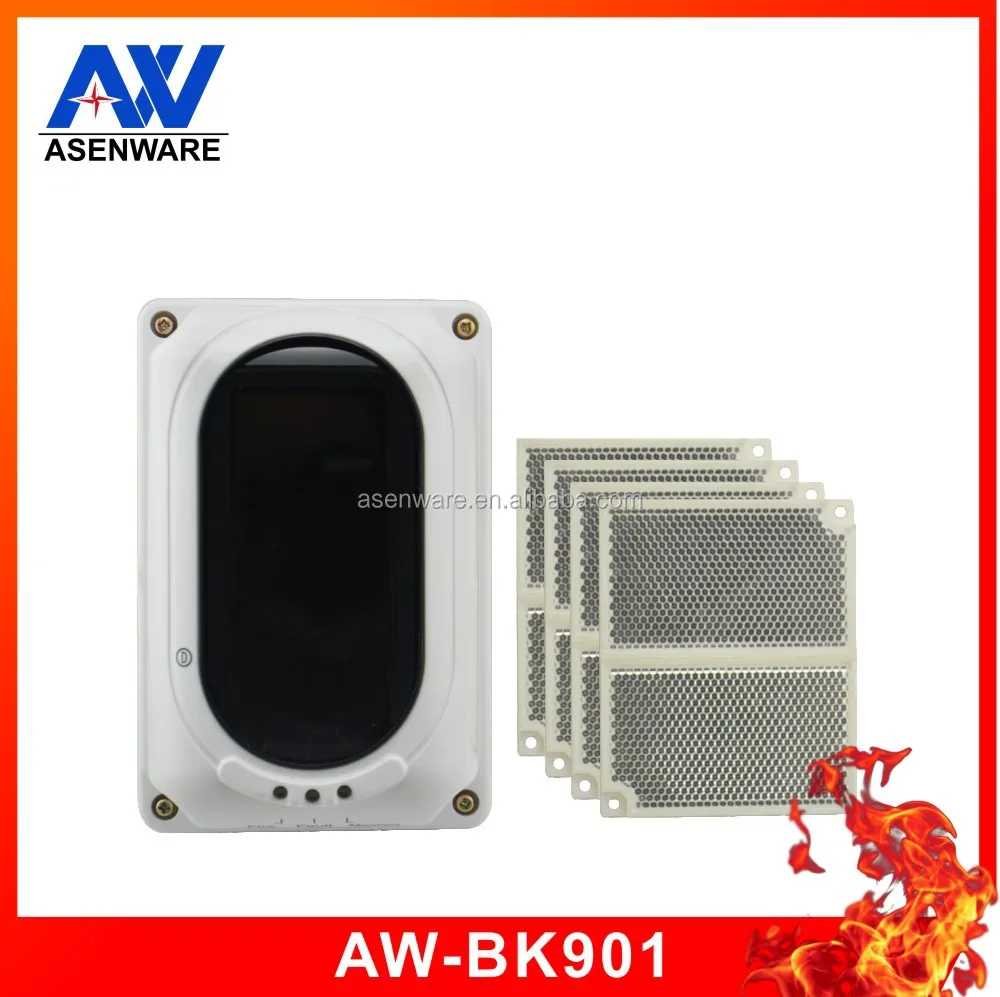

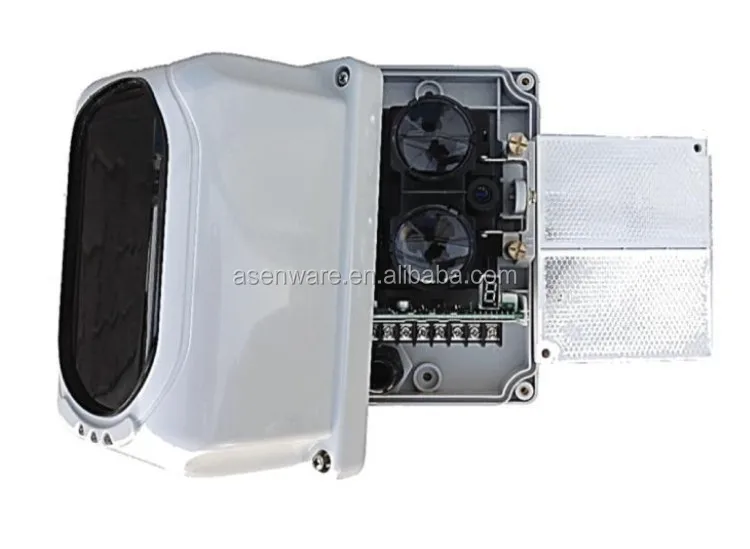

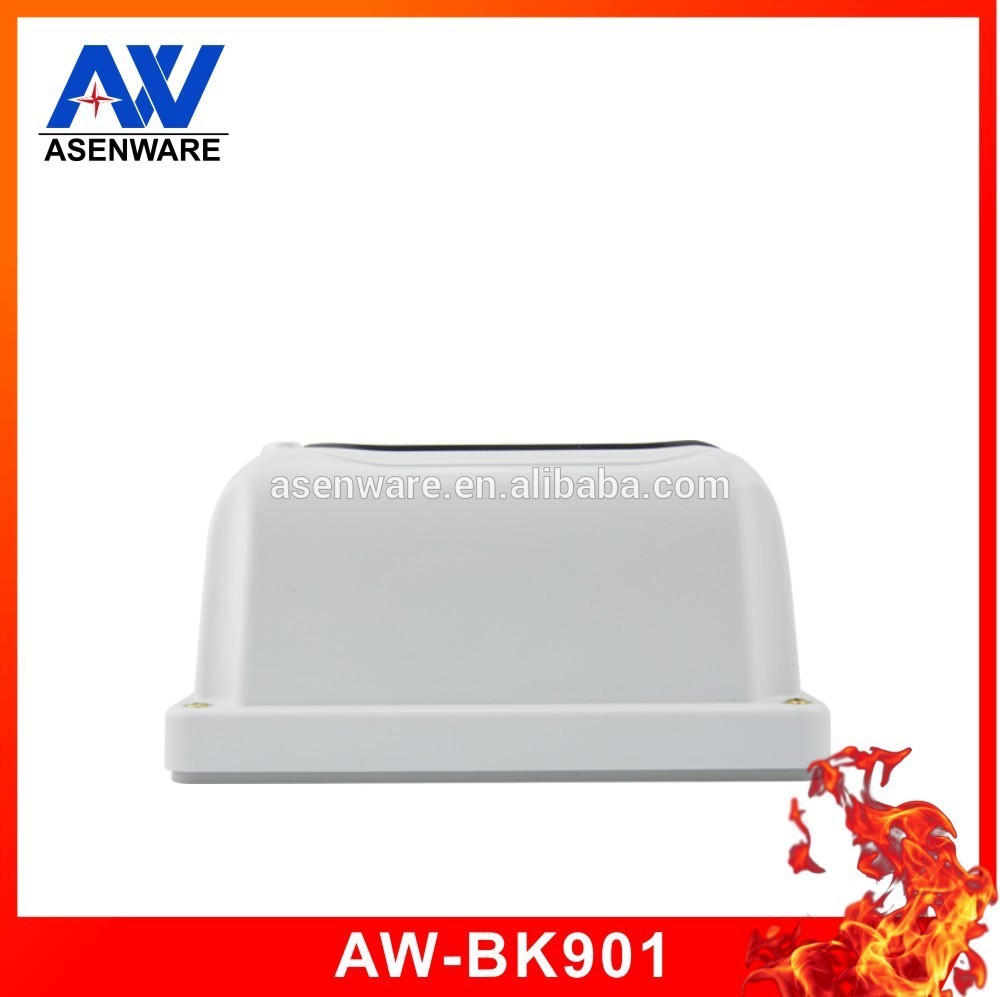

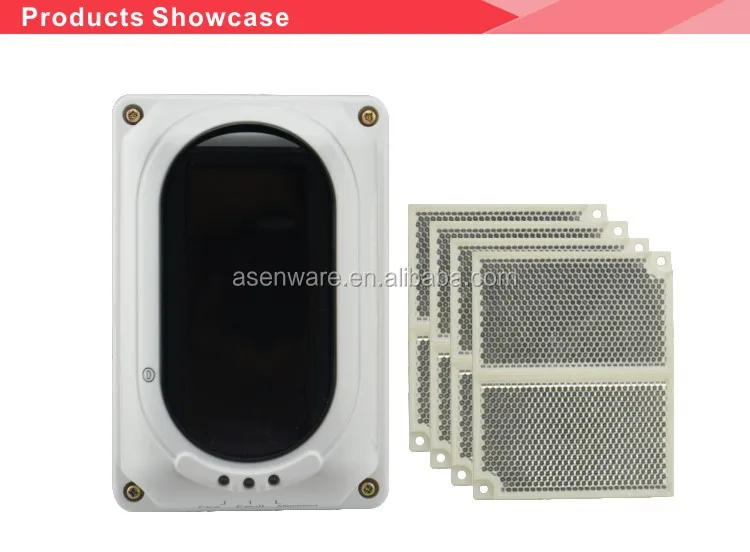

Smoke Infrared Beam Detector
| Model Number | AW-BK901 |
| Fire Detection and Alarm Systems | BS 5839 Part 1:2002 Specifications |
| Operating Voltage | 20 V to 28 V DC |
| Current Parameters | Standby:23mA Commission:40mA Alarm:33mA |
| Beam Sensor Sensitivity | Level 1: 2.6 dB High Sensitivity Level 2: 3.4 Medium Sensitivity Level 3: 4.8 dB Low Sensitivity |

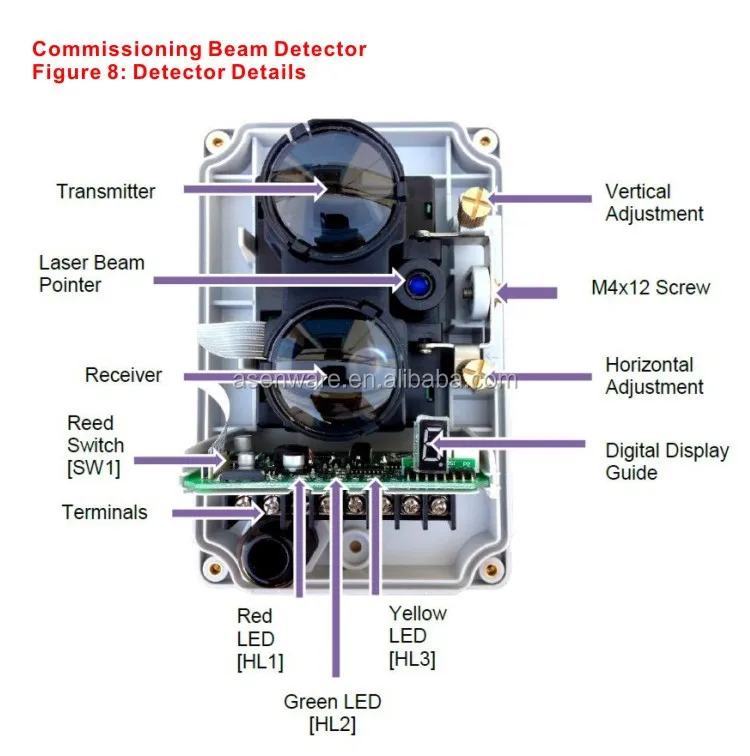

| Beam Path Angle | ±0.5ºDirectional |
| Alignment Guide | Laser Beam Pointer |
| Digital Display Guide | Nixie Tube |

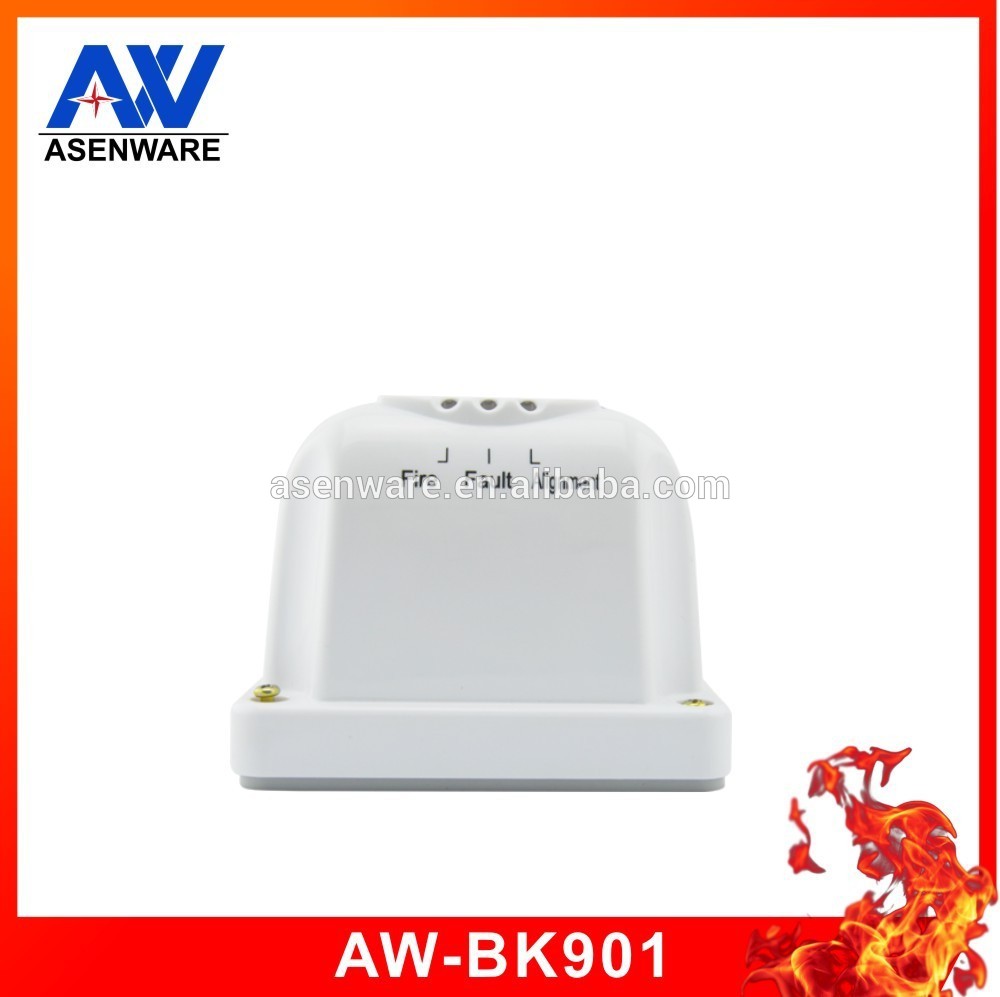

| LED Indicator Guide | Red: Fire ; Yellow: Fault ; Green: Alignment |
| Reset Time | Less than 2 Second |
| Relay Capacity | Normally Open/ 2.0 A; 30 VDC |
| Material / Color | ABS / White |
| Dimension / Weight | L:190.87 x W:126.87 x H:91.96 mm / 440 gm |
| Weight | 0.130 Kg with base |
| Environmental Operating Temperature /Protection | -10°C to 55°C / IP30 [IP66 glue seal] Rating |
| Humidity | 0 to 95% Relative Humidity, Non condensation |
Accessories
he following accessories are included in the package
1. Four plastic expansion bolts
2. Two M4*12*10 three combination cross recessed pan head screws.
3. Four ST4*30 tap cross recessed pan head screws.
4. Mounting Bracket
5. Opaque/Translucent Material
6. Six Æ4 flat washers.
7. Magnetic Tool
Company Information
Our Services
1.Sample is acceptable
2.1 year warranty
3.Full technical support including buildilding fire alarm system CAD design
4.Life long maintance
