Product Description

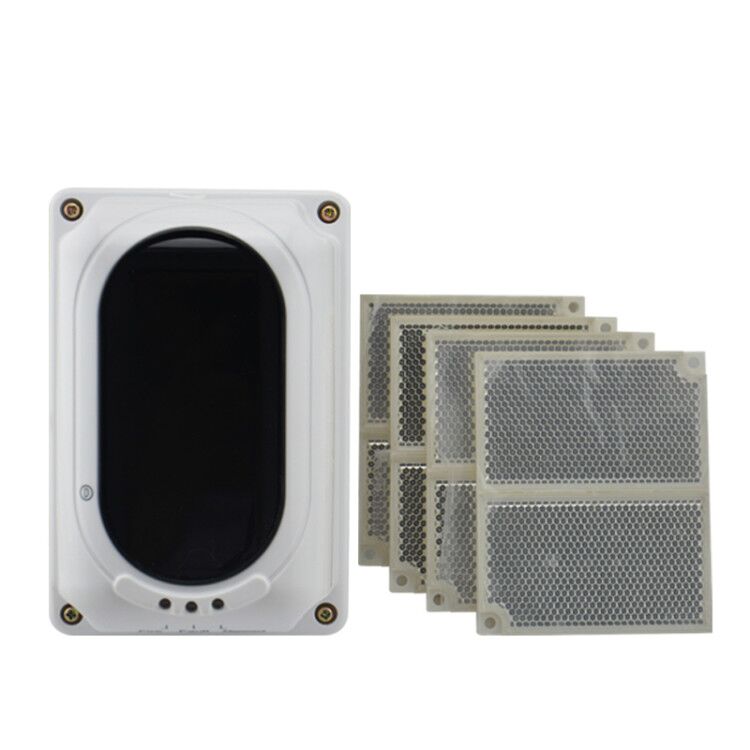

2 Wire Conventional Infrared Beam Smoke Detector AW-BK901
| Model Number | AW-BK901 |
| Fire Detection and Alarm Systems | BS 5839 Part 1:2002 Specifications |
| Operating Voltage | 20 V to 28 V DC |
| Current Parameters | Standby:23mA Commission:40mA Alarm:33mA |
| Beam Sensor Sensitivity | Level 1: 2.6 dB High Sensitivity Level 2: 3.4 Medium Sensitivity Level 3: 4.8 dB Low Sensitivity |
| Beam Path Angle | ±0.5ºDirectional |

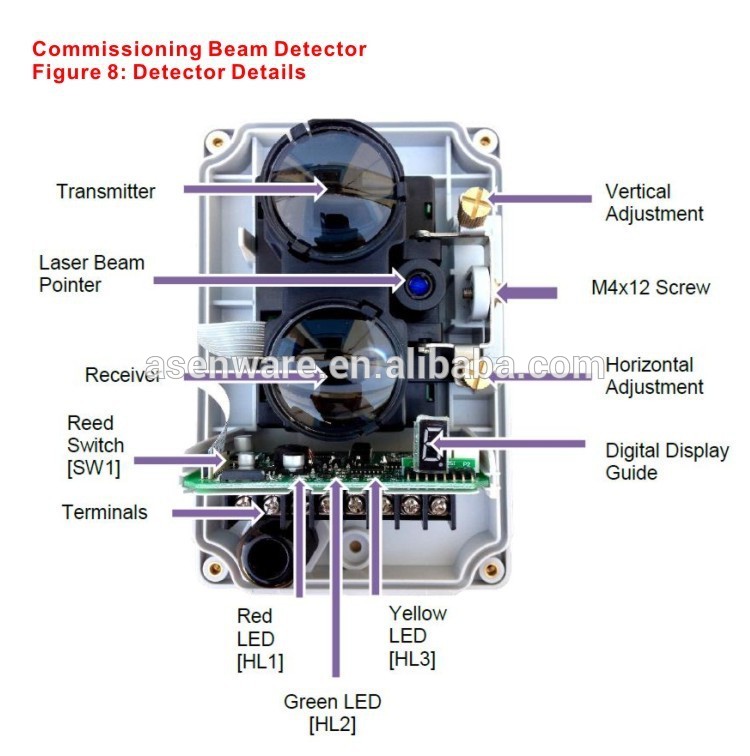

| Alignment Guide | Laser Beam Pointer |
| Digital Display Guide | Nixie Tube |
| LED Indicator Guide | Red: Fire ; Yellow: Fault ; Green: Alignment |
| Reset Time | Less than 2 Second |
| Relay Capacity | Normally Open/ 2.0 A; 30 VDC |
| Material / Color | ABS / White |
| Dimension / Weight | L:190.87 x W:126.87 x H:91.96 mm / 440 gm |
| Weight | 0.130 Kg with base |
| Environmental Operating Temperature /Protection | -10°C to 55°C / IP30 [IP66 glue seal] Rating |
| Humidity | 0 to 95% Relative Humidity, Non condensation |
Accessories
he following accessories are included in the package
1. Four plastic expansion bolts
2. Two M4*12*10 three combination cross recessed pan head screws.
3. Four ST4*30 tap cross recessed pan head screws.
4. Mounting Bracket
5. Opaque/Translucent Material
6. Six Æ4 flat washers.
7. Magnetic Tool
