Fire alarm addressable heat detectors
Addressable heat detector introduction:
Name | Addressable Fixed Temperature Heat Detector |
Model | AW-ATD2188 |
External Specification | Diameter 100mm Height 56mm (With Base) |
Weight | 47G |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
Installation height | ≤8m |
Addressable heat detectors parameters:
1.Executive standard: GB4716-2005
2.Operating voltage: 24V (pulse modulation)
3.Operating current: <300uA (monitoring status) or <1.5mA (alarm status)
4.Product class: A2
5.Wiring method: non-polarity two-bus system (L1, L2)
6.Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection.

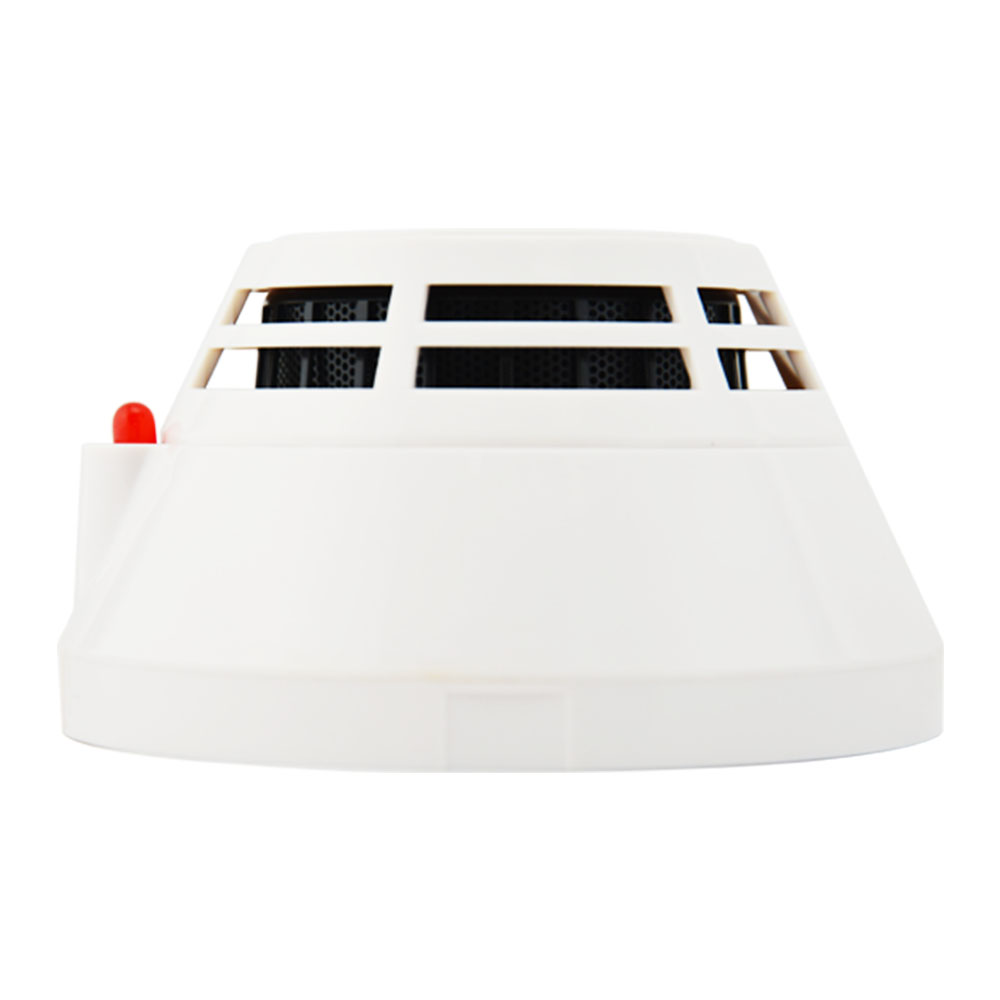

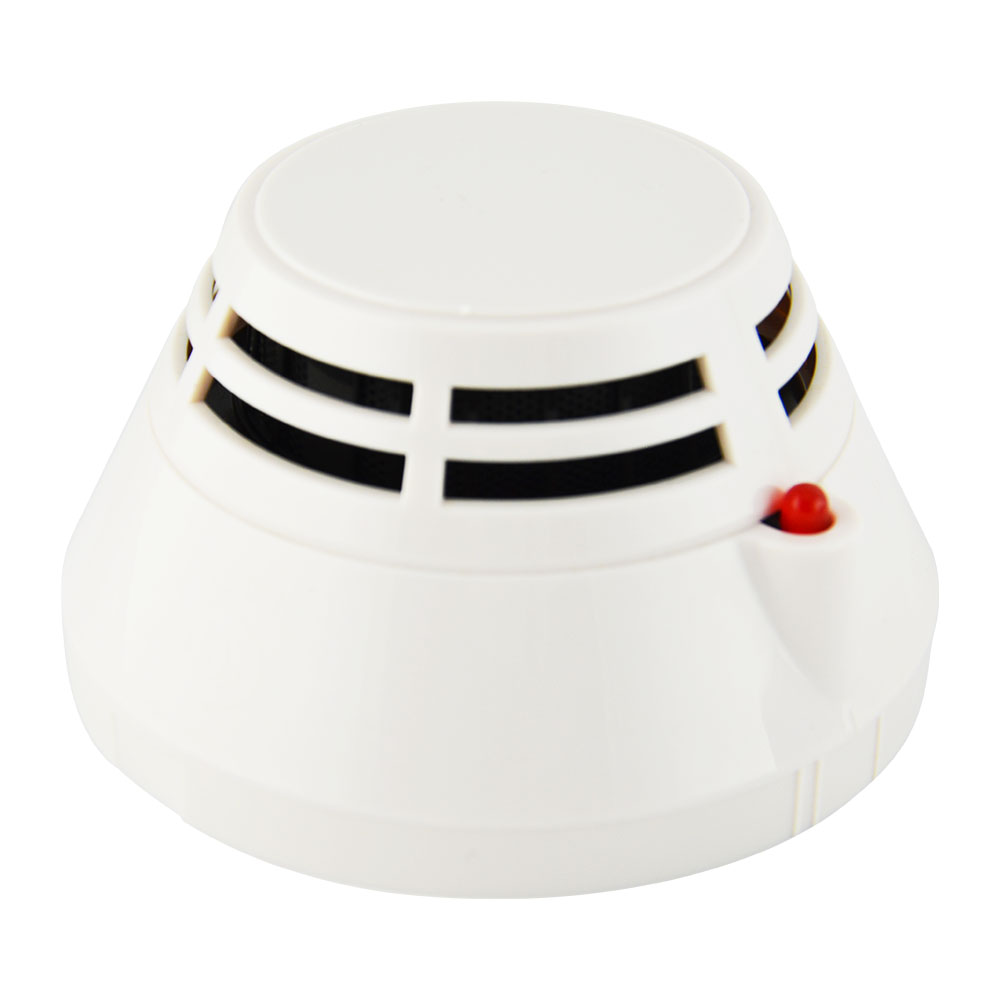

Addressable heat detectors show:
Addressable heat detectors matched addressable system:
