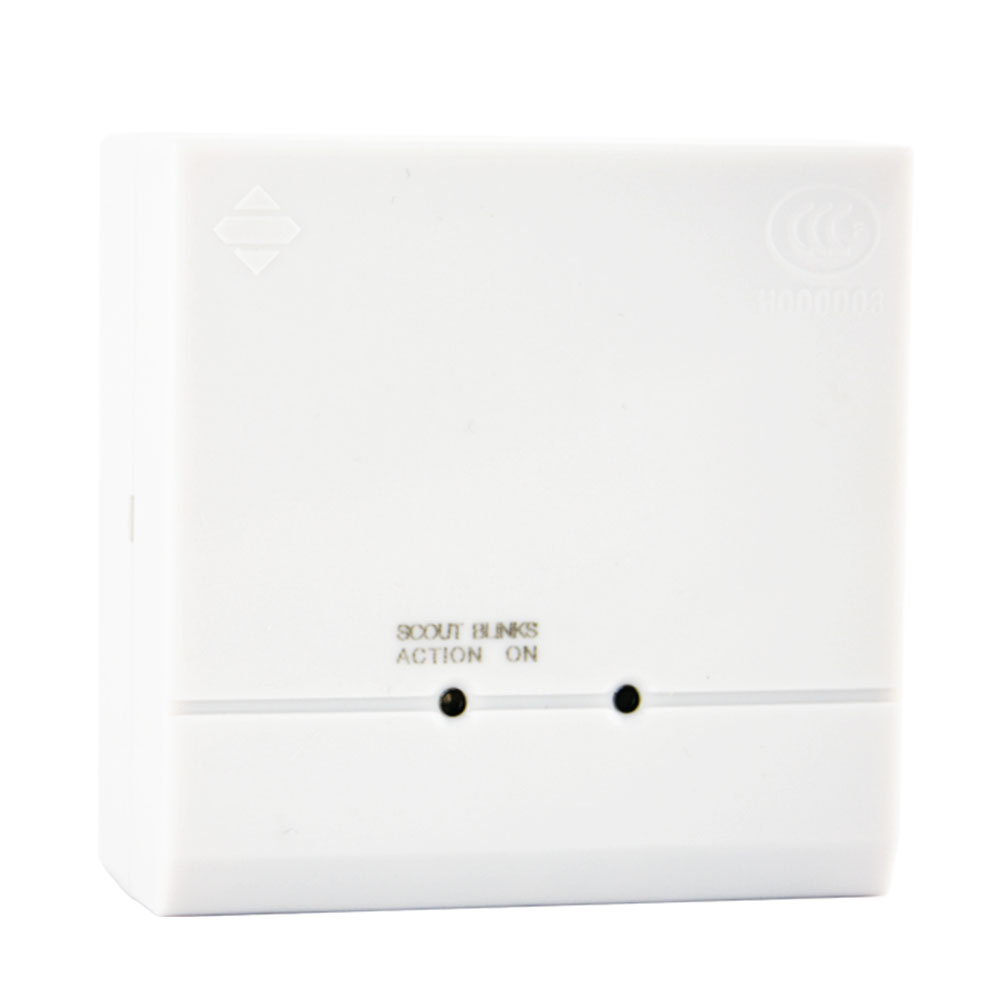

Fire alarm addressable module
Addressable module introduction:
Addrassable Input/Output AW -AIO2188-OUT Module is used with AW-AFP2188,a two-bus linkage fire alarm control panel. It is mainly used to realize an output control for fire linkage equipment (such as smoke dampers, blow valves and fire dampers) and receive the feedback signals of the fire linkage equipment so that a judgment on whether or not the fire linkage equipment is operatin g normally can be done.
Addressable module featrures:
| Asenware fire addressable input module Features and technical parameters | |
| Mode of operation | Nonpolar two-wire system |
| Quiescent current | <0.6mA (Power-down mode) |
| Action Current | <10mA |
| Executive Standard | GB168 06-2006 |
| External Dimensions | 86x86x40(mm) |
| Weight | 119g |
| Terminal load | 4.7k resistant |
