Product Description

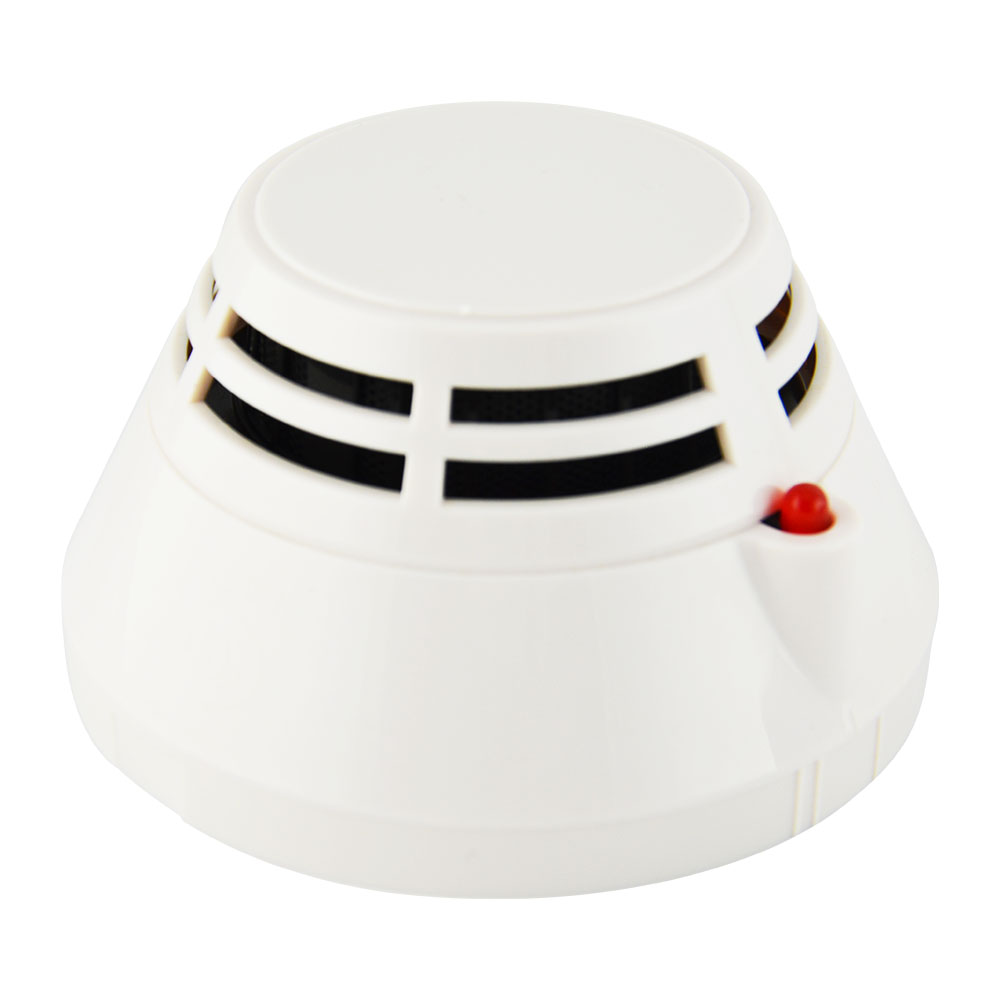

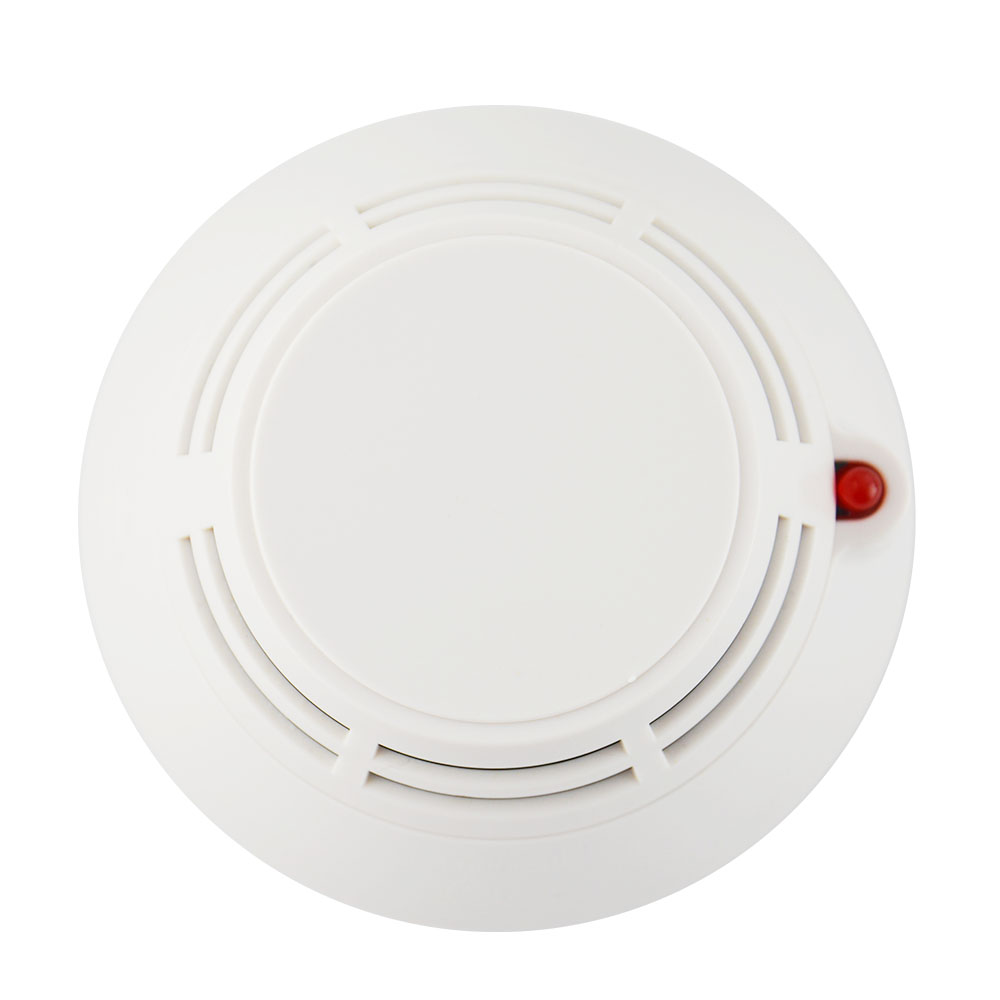

Addressable smoke alarm
| 1. Executive standard: GB4715-2005 |
| 2. Operating voltage: 24V (pulse modulation) |
| 3. Operating current: < 300uA (monitoring status) or < 1.5mA (alarm status) |
| 4. Work indication: The red indicator will blink in the monitoring status or remain lit in the alarm status. |
| 5. Weight: about 70g |
| 6. External dimensions: diameter: 100mm, height: 55mm (with the base) |
| 7. Wiring method: non-polarity two-bus system (L1, L2) |
| 8. Operating environment: Indoor, temperature: -10°C~+55°C; relative humidity: ≤95% (40°C±2°C, without condensation) |
| 9. Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection |
| 10. Installation height: ≤12m |
| 11. Protection area: about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System Matched host machine: fire alarm control panel (such as AW-AFP2188) |
