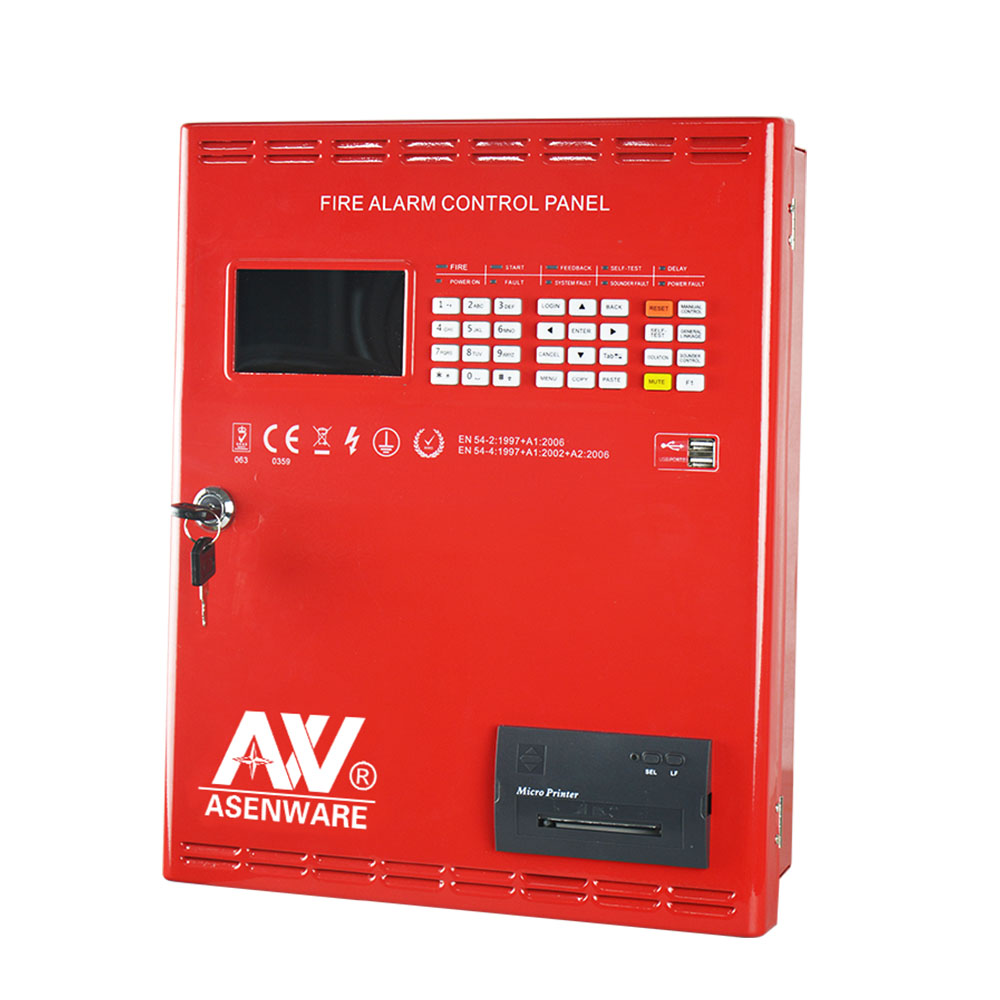

Addressable Fire Alarm Monitoring System
1.Analog intelligent automatic realtime fire alarm detection system
2.Non-polarity 2-bus wiring connection system
3.Optional 100/200/324 addresses & extensive loop cards
4.Single loop with optional 100/200/324 addresses to be programmed
5.R&D followed by LPCB/UL/EN54/VDS regualed involved
6.Automatic switch between mains power & backup 24V leadacid battery.
7.High compatibility with FM200 fire suppression system.
Applications:Commercial building,warehouse,school,factory,hotel,office,etc.
2.Functional Descriptions:
1) The working diagram of the whole addressable fire alarm system:
2).The Features:
Model No.: | AW-AFP2189 |
Data Processing | Collect data:through the internal microprocessors in the intelligent detectors & modules to realize digital filtering and auto-compensation functions. Carry out data: based on fuzzy control theory and modern fire alarm theory to carry out data processing |
Power supply system | an AC-DC master-standby power supply system |
| Support mini-printer |
| Support ten multi-line linkage control/monitoring points to control and monitor important equipment. |
For the users | be equipped with eight bus manual control points, which makes Easy for user sto control related equipment. |
industrial & civil buildings factories, hospitals, restaurants, hotels, schools, business buildings, government buildings,etc. | |
Advantage | Accurate & efficient feedback, Humanized setting, Economic, User-friendly & convenient maintenance,etc. |
3. Main Technical Parameters:
Main technical parameters: | |
AW-AFP2189 system capacity | 324 points (non-polarity, two wire bus, fully mixed coding) |
AC input voltage | AC 220V±20% 50Hz |
DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series |
AC input power | 120W |
Circuit bus | two-wire system |
Total length | ≤1500m |
Voltage UL of the circuit bus | +20V≤UL≤+26V(when the DC power is operating) +24V≤UL≤+26V(when the AC power is operating) |
System working conditions
| 1. Temperature: -10°C~+50°C 2.Humidity: ≤95% 3.Power supply: AC 220V 50HZ DC 24V 6A 4.Output contact capacity: AC 220V 1A DC 27.6V 3A |
4.Asenware Fire Deteion Alarm Panel Oversea Installation Demostration:
The standard addressable accessories involved as follows:
1) AW-ASD2188:Addressable Photoelectric Smoke Detector
2) AW-ATD2188:Addressable Fixed Temperature Heat Detector
3) AW-AMC2188:Addressable Manual Call Point
4) AW-ASS2188:Addressable strobe siren
5) AW-AIO2188-IN:Addressable input module to wire future conventional devices.
6) AW-AIO2188-OUT:Addressable output module to control the bell.
7) AW-CODER2188:Programmer to code the detectors
Ø OEM & ODM service: YES
Ø Technical support and After-sale service: YES
Ø Warranty: 1 YEAR
Ø Delivery Time: 3 - 5 days after payment received
Ø Shipping: delivery by air, ship or DHL, FEDX etc. Express for your order
Where there is fire situation,where there is Asenware fire system,which dedicates to provide the package professional solution to secure your properties & assets.
Features:12-month free warranty,modularized design,simple installation,reliable performance,endurable life,wire-saving & flexible zone/loop extension margin,etc.
Installation Examples:5-star Simama Hotel,Lilongwe,Malawi,Hotel Africanna,Kampala,Uganda,Egyptian Bank & Bangladesh Garment Factories,etc.
